5.3.2 L-Platform Detailed Information Display

Follow the steps below to display the details of L-Platform:

Display the [L-Platform Management], [L-Platform Management (list)], or the [Server List] page.
Refer to "5.3.1 L-Platform Management Display Page" for information on how to display the page.
Click the [Details] button after selecting the L-Platform or the server required.
The [L-Platform Details] page will be displayed.
There are two types of display format for the [L-Platform Details] page below. The display format can be switched using the button () located on the top right hand side of the page.

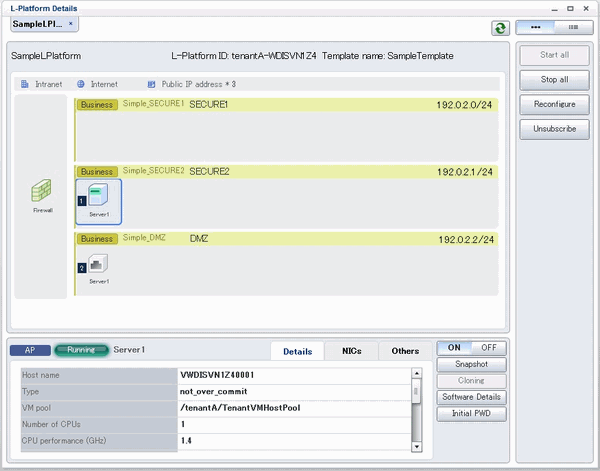

- L-Platform configuration image
  By clicking the button () located on the top right hand side of the page, the L-Platform configuration is displayed as an image.

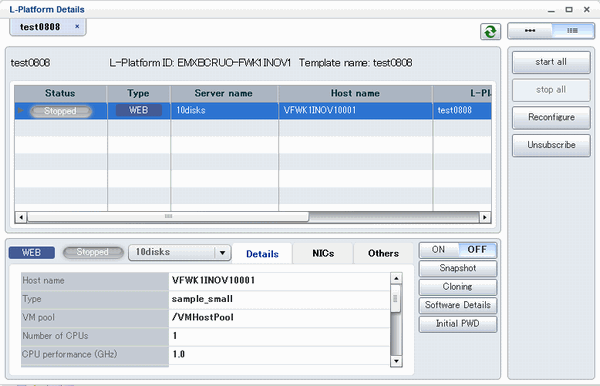

- Server List
  By clicking the button () located on the top right hand side of the page, a list of all virtual servers included in the L-Platform is displayed. The server List also displays the extended disks included in the virtual servers.

Point

The following buttons can be used on the [L-Platform Details] page:

[Start all] button: Turns the power on for all servers in the L-Platform as a group.
[Stop all] button: Turns the power off for all servers in the L-Platform as a group.
[Reconfigure] button: Changes the L-Platform
Refer to "5.3.16 L-Platform Reconfiguration" for information on changing L-Platforms.
[Unsubscribe] button: Cancels the L-Platform
Refer to "5.3.17 Cancel an L-Platform" for information on cancelling L-Platforms.
Canceling is not possible if the following servers exist on the target L-Platform:
- Servers whose server virtualization software is OVM for SPARC and to which a shared disk is connected.
- Servers that use Solaris Zones for virtualization software and are operating Solaris 10 that is not managed by BladeLogic
[ON] button: Start the server
Refer to "5.3.4 Start and Stop the Server" for information on starting the server.
[OFF] button: Stop the server
Refer to "5.3.4 Start and Stop the Server" for information on stopping the virtual server.
[Snapshot] button: Take and restore snapshots
This button is displayed for virtual servers.
But this button is not displayed when the target server satisfies either of the following conditions:
- Servers whose virtualization software is Solaris Zone, OVM for x86, or OVM for SPARC.
- Servers whose virtualization software is RHEL-KVM that satisfy either of the following conditions:
  - The image location type of the cloning image is "Raw Disk"
  - The image location type of the cloning image is "Virtual Disk", and one or more existing disks are connected
Refer to "5.3.6 Take and Restore Snapshot" for information on taking and restoring snapshots.
[Backup] button: Backup and restore
This button is displayed for physical servers.
But this button is not displayed if the OS is Solaris.
Refer to "5.3.7 Physical Server Backup and Restore" for information on backup and restore.
[Setting] button: Setup firewall
This button is displayed for firewalls.
Refer to "5.3.8 Setup Firewall" for information on setup firewall.
[Log viewing] button: References the firewall log
This button is displayed for firewalls deployed without using a ruleset.
Refer to "5.3.9 Referencing the Firewall Log" for information on referencing the firewall log.
[Operation] button: Operate server load balancer (SLB)
This is displayed for server load balancers.
Refer to "5.3.11 Server Load Balancer (SLB) Operations" for information on operating server load balancers.
[Operation log] button: Server load balancer (SLB) operation log
This is displayed for server load balancers.
Refer to "5.3.12 Server Load Balancer (SLB) Operation Logs" for information on server load balancer operation logs.
[SLB settings] button: Server load balancer (SLB) settings
This is displayed for server load balancers.
Refer to "5.3.10 Server Load Balancer (SLB) Settings" for information on server load balancer settings.
[Software Details] button: Display software information
[Initial PWD] button: Confirm the initial password
Depending on the L-Platform settings, the "Initial password is "Initial password"". Sometimes it is displayed as ".
The initial password is set after L-Platform deployment.
When all the following conditions are satisfied, "The Root role password is "Root role password"." is displayed.
- The server virtualization software is Solaris Zones
- The OS of the virtual server is Solaris 11
- The administrator user name is a value other than that of the root account
Depending on the system settings, the [Initial PWD] button may not be displayed.
[Add Patch Information] button: Register the patch information
Refer to "5.3.5 Manage Patch Information" for information on registering patch information.
[Delete Patch Information] button: Delete the patch information
Refer to "5.3.5 Manage Patch Information" for information on deleting the patch information.
[Console] button: Connects to the server console
This button is displayed when operating VMware servers.
Pressing the button displays the window for launching the console screen, and then the console screen itself.
Once the console screen is displayed, closing the window for launching the console screen will not cause any problems.
The [Console] button is only displayed when it has been enabled in the system settings.

Note

If 'Start all' or 'Stop all' button is clicked while another user is reconfiguring the L-Platform, the start or stop operation fails with the error code VSYS10051.
If this error occurs when no user is reconfiguring the L-Platform, perform the following operation before starting or stopping all servers.
1. Click the [Reconfigure] button on the [L-Platform Details] page.
2. After the following message is displayed, click the 'Obtain the lock on a mandatory basis' button, and then cancel the reconfiguration.
```
The L-Platform is locked by another user.
After obtaining the lock on a mandatory basis, the operation can be continued.
```
If a virtual server managed by OVM for SPARC is stopped using the [Stop all] or [OFF] button, the OVM for SPARC must support shutdown operations. If shutdown operations are not supported by the OVM for SPARC, the virtual server cannot be stopped.
In this case, operate the virtual server directly or click the [Forced stop] button depending on the server status.
If a server is imported to the L-Platform and no pool name is specified by the administrator, the "-" character is displayed for the VM pool, the server pool name, and the storage pool of the server.

For physical servers, the number of CPUs, operating frequency, and memory size displayed are those specified by the user during the L-Platform subscription or when adding a server as part of an L-Platform reconfiguration.
For physical servers added to the L-Platform, the values in effect during registration are displayed.
For this reason, even if the number of CPUs, operating frequency, and memory size are changed, the displayed values will not change.
