This section explains how to display the [L-Platform management] page and explains the display format.
[L-Platform Management] Page Display Method
From the operation menu on the [L-Platforms] tab, select [Management].
[L-Platform Management] Page Display Format
The L-Platform management page has the following three types of display format.
Display format | Description |
|---|---|
L-Platform Management | Displays the L-Platform configuration images in a list |
L-Platform Management (list) | Displays the L-Platform list |
Server List | The list displays virtual servers. |
The buttons in the upper-left section of the page can be used to switch between the "L-Platform Management" and "Server List" display formats.
The display can be switched between the "configuration" format and the "list" format using the button located on the top right hand side of the page (
).
Examples of each display format are shown below:

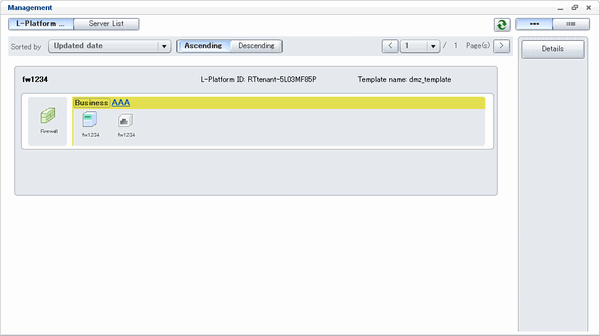

L-Platform Management
Click the [Management] button on the top left hand side of the page and then click the button (
) on the top right hand side of the page to display an L-Platform list in a configuration image.
The following information can be checked on the [Management] page:
L-Platform name: The L-Platform name set during L-Platform subscription
L-Platform ID: The ID that identifies the L-Platform
L-Platform Template name: The name of the L-Platform Template
L-Platform configuration: The L-Platform configuration image
The sequence of the L-Platforms displayed can be switched by clicking [Sorted by] followed by the [Ascending order] or [Descending order] button for the following items:
Update date
L-Platform name
L-Platform ID
Point
Using the [Details] button, details of the L-Platform can be displayed on the [Management] page. Refer to "5.3.2 L-Platform Detailed Information Display" for information on displaying the L-Platform details.

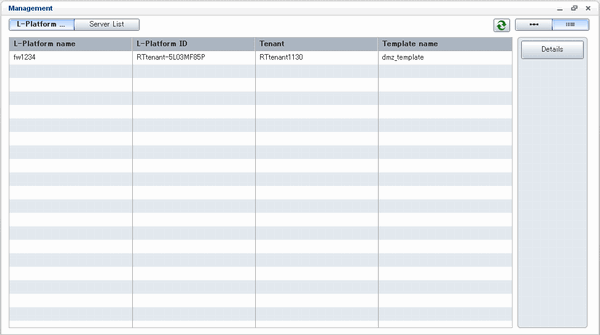

L-Platform Management (list)
Click the [Management] button on the top left hand side of the page and then click the button (
) on the top right hand side of the page to display a list of information on the L-Platforms.
The following information can be checked on the [L-Platform Management (list)] page.
L-Platform name: The L-Platform name set during L-Platform subscription
L-Platform ID: An ID to identify the L-Platform
Organization information: Identification number for the organization
L-Platform template name: Name of the L-Platform template
The sequence of the L-Platforms displayed can be switched between ascending order and descending order by clicking the column headers (L-Platform name, L-Platform ID, etc).
Point
Using the [Details] button, details on the L-Platform can be displayed on the [L-Platform Management (list)] page. Refer to "5.3.2 L-Platform Detailed Information Display" for information on displaying the L-Platform details.

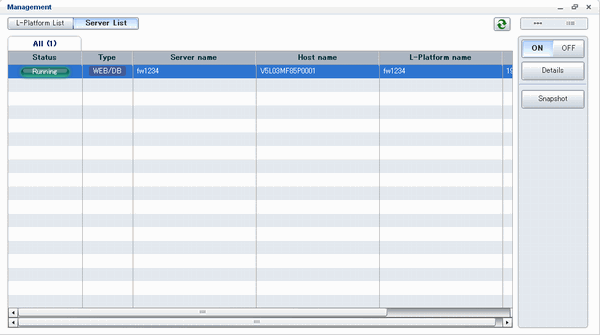

Server List
Click the [Server List] button on the top left hand side of the page to display a list of information on servers included in an L-Platform.
The following shows an example of all servers being displayed. To display inactive servers, click the [Stopped] tab.
The following information can be checked on the [Server List] page.
Status: Server status (Running, Stopped)
Type: Server type
Server name: Server name
Host name: The server host name. However, this is not displayed for a physical server
L-Platform name: The L-Platform name set during L-Platform subscription
IP address: IP address of the server
Backup/Snapshot: Status of taking and restoring the backup and snapshots
Generation: Number of snapshots or backup stored
Number of snapshots: Number of snapshots or number of executed backups
The sequence of the servers displayed can be switched between ascending order and descending order by clicking the column headers (status, type, etc).
Point
The following buttons can be used to operate on the [Server List] page.
[ON] button: Start the server
Refer to "5.3.4 Start and Stop the Server" for information on starting the server.
[OFF] button: Stop the server
Refer to "5.3.4 Start and Stop the Server" for information on stopping the server.
[Details] button: Display details on an L-Platform or a disk.
Refer to "5.3.2 L-Platform Detailed Information Display" for information on displaying L-Platform details. Refer to "5.3.3 Display Details on a Disk" for information on displaying details on a disk.
[Snapshot] button: Take and restore snapshots
This button is displayed for virtual servers.
But this button is not displayed when the target server satisfies either of the following conditions:
Servers whose virtualization software is Solaris Zone, OVM for x86, or OVM for SPARC.
Servers whose virtualization software is RHEL-KVM that satisfy either of the following conditions:
- The image location type of the cloning image is "Raw Disk"
- The image location type of the cloning image is "Virtual Disk", and one or more existing disks are connected
Refer to "5.3.6 Take and Restore Snapshot " for information on taking and restoring snapshots.
[Backup] button: Backup and restore.
This button is displayed for physical servers.
But this button is not displayed if the OS is Solaris.
Refer to "5.3.7 Physical Server Backup and Restore" for information on backup and restore.
[Console] button: Connects to the server console
This button is displayed when operating VMware servers.
Pressing the button displays the window for launching the console screen, and then the console screen itself.
Once the console screen is displayed, closing the window for launching the console screen will not cause any problems.
The [Console] button is only displayed when it has been enabled in the system settings.
Note
The [Running] icon for a server indicates that the power has been turned on.
Even if the [Running] icon is displayed, login to the L-Platform may fail if logged in immediately after deployment or starting the virtual server. In this case, allow a few minutes before trying to log in again.
