4.4.2 Changing the Job Nets

The job nets can be changed (added, duplicated or deleted) as necessary. The following describes procedure and cautions for changing (adding/duplicating/deleting) a job net.


Adding a job net

The following describes how to add a job net.

Select a project to which you want to add a job net from the Job Selection window of the Systemwalker Operation Manager window, then register jobs in the job net using the New Job Net window.

For the details of operation, see "4.2.3 Registering Job Nets" and "4.2.4 Registering Jobs".


Duplicating a job net

The following describes how to duplicate a job net.

The following two methods can be used to duplicate a job net:

Procedure (when using Copy and Paste)

  1. Copying a job net

    Select the job net to copy in the job selection window of the Systemwalker Operation Manager window. Any of the following operations can be used to copy the job net:

    • Select Copy from the File menu.

    • Click the right mouse button and select Copy from the pop-up menu.

    • Press the C key while holding down the Ctrl key.

  2. Pasting a job net

    Select the project where the copy of the job net is to be pasted in the job selection window of the Systemwalker Operation Manager window. Any of the following operations can be used to paste a copy of the job net:

    • Select Paste from the File menu.

    • Click the right mouse button and select Paste from the pop-up menu.

    • Press the V key while holding down the Ctrl key.

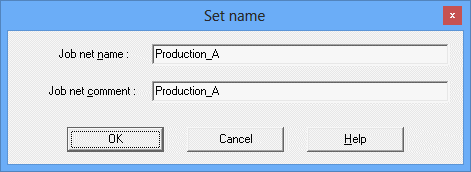

    Note that if a job net of the same name already exists in the target project, the Set name window shown below will appear. Specify the name of a job net that does not already exist in the target project.

    Job net name:

    Specifies the name of the job net to be pasted.

    Job net comment:

    Specifies a comment relating to the job net to be pasted.

Procedure (when using Reuse)

  1. Displaying the Job Net Copy Destination Specification window

    Displaying the Job Net Copy Destination Specification window by performing one of the following operations.

    • Select the job net to duplicate from the Job Selection window of the Systemwalker Operation Manager window. Then, select Reuse from the File menu (or select Reuse from the pop-up menu displayed by right-clicking).

    • Select Job Net Management from the Tools menu of the Systemwalker Operation Manager window. Click the job net to duplicate from the Job Net Management window. Then, select Reuse from the File menu (or select Reuse from the pop-up menu displayed by right-clicking).

  2. Setting the duplication destination job net information

    Specify the project name, job net name and job net comment of the duplication destination using the Specify the Job Net Copy Destination Specification window. It is also possible to change the job net information to be duplicated.

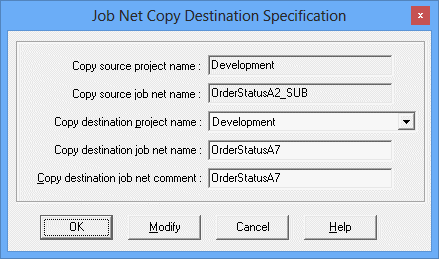

    Figure 4.53 Job Net Copy Destination Specification window

    Copy source project name:

    Displays the duplication source project name.

    Copy source job net name:

    Displays the duplication source job net name.

    Copy destination project name:

    Selects the duplication destination project name.

    Copy destination job net name:

    Specifies the duplication destination job net name.

    Copy destination job net comment:

    Specifies the duplication destination job net comment.

    Change:

    Displays the Job Net Properties window.

  3. Duplicating the job net

    Click OK. The job net will be duplicated.

Note

Copy of layered job nets

In case of layered job nets, the parent job nets cannot be duplicated. Only the child job nets of the lowest layer can be duplicated.

Copying master linked job nets

If a master linked job net, and job nets at levels below the master linked job net, are copied, the duplicate job nets will be copied as normal job nets. However, master linked job nets that contain child job nets cannot be copied.

Copying linked job nets

Linked job nets, and job nets at levels below the linked job nets, cannot be copied. Also, parent job nets that contain linked job nets cannot be copied, just as parent job nets that contain normal child job nets cannot be copied.

Status of copied job nets

The status of a copied job net becomes "Disabled", so click Enable for copied job nets as required.

Copying job nets for which Copy and start is specified

An error occurs if you specify 85 bytes or more for Job net comment in the Set name window or Copy destination job net comment in the Job Net Copy Destination Specification window when copying job nets for which Copy and start is specified in the Standard information tab of the Job Net Properties window. The job nets are copied but the job net comments and job net properties are the same as the copy source job nets. Change the definitions of the created job nets as required.

Deleting a job net

The following describes procedure and cautions for deleting a job net.

Procedure

Delete a job net by performing one of the following operations.

Note

Deletion of layered job nets

If a job net in the first layer is deleted in layered job nets, the second layer job nets will become the first layer job nets.

Deletion of a child job net

Use the following procedure to delete a child job net from the parent job net.

  1. Displaying the Change Job Net window of the parent job net

    Display the Change Job Net window of the parent job net.

  2. Deleting a child job net

    Select the job net to delete in the Job Flow display area of the Change Job Net window, then select Delete from the Edit menu (or select Delete from the pop-up menu displayed by right-clicking).

As a result, the targeted child job net will get out of the parent job net and become a job net of the first layer. It is displayed right under the belonging projects in the Job Selection window of the Systemwalker Operation Manager window. To further delete job nets, see "Procedure" in the "Deleting a job net" section.

Deleting linked job nets

If a parent job net where a linked job net has been registered as a job is deleted, the linked job net, and any job nets at levels below the linked job net, will also be deleted.

To delete only the linked job net, use the following procedure:

  1. Open the Change Job Net window

  2. Delete linked job nets

    Select the linked job net to be deleted in the job flow display area of the Change Job Net window, and then select Delete from either the Edit menu or the right-click popup menu.

  3. Save the parent job net

    Select Save from the File menu of the Change Job Net window.

As a result, the linked job net and any job nets at layers below the linked job net will be deleted.

Deleting master linked job nets

Master linked job nets cannot be simply deleted. All of the linked job nets that refer to the master linked job net must be deleted before the master linked job net can be deleted. Job nets that have been copied via a "copy and start" operation do not need to be deleted in order to delete a master linked job net.

The Master Linked Job Net List window can be used to check which linked job nets refer to a master linked job net.

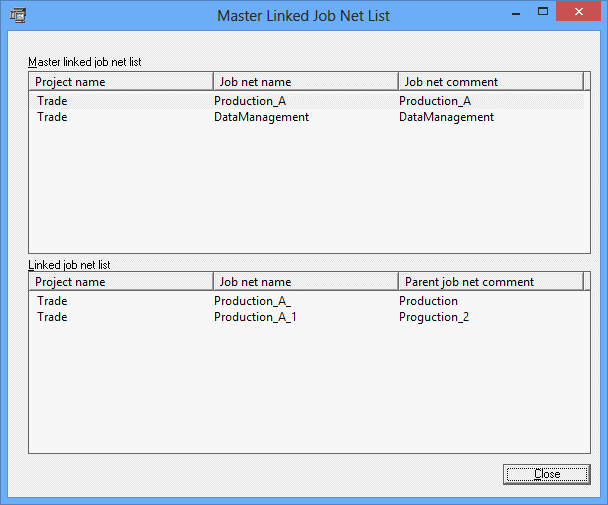

Figure 4.54 Master Linked Job Net List window

Master linked job net list:

This area displays a list of master linked job nets.

If a subsystem is selected in the job selection tree, this list will display all of the master linked job nets in the subsystem. If a project is selected, this list will display all of the master linked job nets in the project.

Project name:

This column displays the names of the projects where the master linked job nets have been registered.

Job net name:

This column displays the job net names of the master linked job nets.

Job net comment:

This column displays the job net comments of the master linked job nets.

Linked job net list:

This area displays a list of the linked job nets that refer to the master linked job net that is selected in the Master linked job net list area.

Project name:

This column displays the names of the projects where the linked job nets have been registered.

Job net name:

This column displays the job net names of the linked job nets.

Parent job net comment:

This column displays the job net comments for the parent job nets of the linked job nets.

Refer to "Deleting linked job nets" for details on how to delete linked job nets. After all of the linked job nets that refer to the master linked job net, the master linked job net will return to ordinary job net. Then, delete it by referring to "Deleting a job net".

Note

Deletion of base job nets

When the job net declared as the base job net is deleted, the startup days of the job net for which the deleted job net is specified as the Standard Information for the startup days are also deleted. Be sure to check for any problem before deleting the base job net.
