Interstage Studio J Business Kit GUI Library User's Guide

3.33 Tool bar Bean

The tool bar Bean has the following information and Customizer functions.

• Property information

• Event information

• Method information

See

"Package Guide"- JFToolbar

Property information

Name	Type	Reference	Setting	Explanation
background	java.awt Color	Y	Y	Background color
borderColor	java.awt Color	Y	Y	Border line color
componentOrientation	java.awt ComponentOrientation	Y	Y	The orientation of the string. It depends on the language
controlEnabled	boolean	Y	Y	Whether to operation of the possible/impossibility of the added component
enableMenu	boolean	Y	Y	Whether to display the popup menu
enableToolTip	boolean	Y	Y	Whether to display the tool tip
enabled	boolean	Y	Y	Whether enabled
focusTraversalKeysEnabled	boolean	Y	Y	Whether the focus traversal key is available
focusable	boolean	Y	Y	Whether the focus can be set
font	java.awt Font	Y	Y	Font
foreground	java.awt Color	Y	Y	Foreground color
hgap	int	Y	Y	Left and right gaps for the default layout
ignoreRepaint	boolean	Y	Y	Whether the paint message of the operating system should be ignored
layout	java.awt LayoutManager	Y	Y	Layout manager
locale	java.util Locale	Y	Y	Locale information
name	java.lang String	Y	Y	Name
orientation	int	Y	Y	Orientation
remoteFont	boolean	Y		Whether the registered font is a remote font
separatorLine	boolean	Y	Y	Line display/no display for separator (delimiter space)
separatorSize	int	Y	Y	Separator (delimiter space) size
toolTip	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Tool tip
toolTipText	java.lang String	Y	Y	Tool tip text
toolTipsBackground	java.awt Color	Y	Y	Tool tip Background color
toolTipsColor	java.awt Color	Y	Y	Tool tip character color
toolTipsDisplay	boolean	Y	Y	Tool tip display/no display
vgap	int	Y	Y	Top and bottom gaps for the default layout
visible	boolean	Y	Y	Whether visible

Event information

Name	Listener	Addition/removal	Method	Explanation
action	java.awt.event ActionListener	addActionListener removeActionListener	actionPerformed	Is issued when the registered component issues ActionEvent.
adjustment	java.awt.event AdjustmentListener	addAdjustmentListener removeAdjustmentListener	adjustmentValueChanged	Is issued when the registered component issues AdjustmentEvent.
component	java.awt.event ComponentListener	addComponentListener removeComponentListener	componentResized	Is issued when the component status changes.
			componentMoved
			componentShown
			componentHidden
container	java.awt.event ContainerListener	addContainerListener removeContainerListener	componentAdded	Is issued when the pasted status changes.
			componentRemoved
focus	java.awt.event FocusListener	addFocusListener removeFocusListener	focusGained	Is issued when the focus moves.
			focusLost
inputMethod	java.awt.event InputMethodListener	addInputMethodListener removeInputMethodListener	caretPositionChanged	Is issued when the input method status changes.
			inputMethodTextChanged
item	java.awt.event ItemListener	addItemListener removeItemListener	itemStateChanged	Is issued when the registered component issues ItemEvent.
key	java.awt.event KeyListener	addKeyListener removeKeyListener	keyTyped	Is issued by key operation.
			keyPressed
			keyReleased
mouse	java.awt.event MouseListener	addMouseListener removeMouseListener	mouseClicked	Is issued by mouse operation.
			mousePressed
			mouseReleased
			mouseEntered
			mouseExited
mouseMotion	java.awt.event MouseMotionListener	addMouseMotionListener removeMouseMotionListener	mouseDragged	Is issued when the mouse moves.
			mouseMoved
mouseWheel	java.awt.event MouseWheelListener	addMouseWheelListener removeMouseWheelListener	mouseWheelMoved	Is issued by mouse wheel operation.
propertyChange	java.beans PropertyChangeListener	addPropertyChangeListener removePropertyChangeListener	propertyChange	Is issued when the property changes.
text	java.awt.event TextListener	addTextListener removeTextListener	textValueChanged	Is issued when the registered component issues TextEvent.

Method information

Name	Parameters	Explanation
add	java.awt Component	Adds the component to the end.
add	java.awt Component	Inserts the component into the specified index.
	int
add	java.awt Component	Adds the component to the end.
	java.lang Object
add	java.awt Component	Inserts the component into the specified index.
	java.lang Object
	int
addSeparator		Adds a separator (delimiter space) to the end.
hideToolTip		Erases the tool tip.
insertSeparator	int	Inserts the separator (delimiter space) into the specified index.
moveComponent	int	Moves the component and separator (delimiter space).
	int
remove	int	Deletes the component of the specified index.
remove	java.awt Component	Deletes the specified component.
removeAll		Deletes all components.
requestFocus		Requests an input focus.
showToolTip	java.lang String	Displays the tool tip.
	java.awt Point
	java.awt Dimension
	long
transferFocus		Moves the focus to the next component.

Customizer

• Component common property

• JBK GUI common property

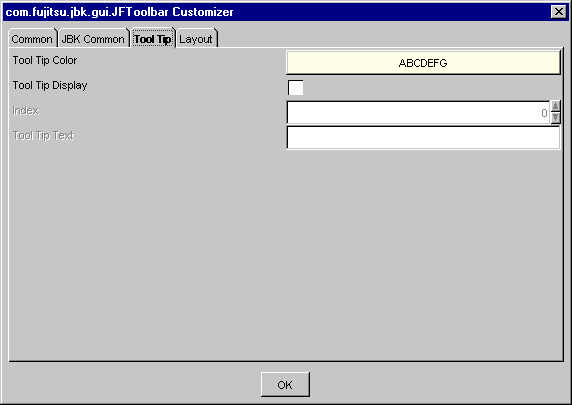

• Tool Tip

  Set the tool tip attribute.

  In the initial status, no 'Index' or 'Tool Tip Text' can be set. Using the screen designer (screen edit function) of the integrated development environment, paste components on a tool bar, then make the settings.



  Tool Tip Color

  Set the foreground color and background color of the tool tip. When the button is pressed, [Foreground Color/Background Color] setting dialog is displayed.

  Tool Tip Display

  Set display/no display for the tool tip. When this item is checked, and the mouse cursor is positioned on the tool bar button, the tool tip is displayed.

  Index

  Specify the index of the component to set the tool tip text. For the index, set a series of positive integers starting at 0. The maximum value of the index is the number of components minus 1.

  Tool Tip Text

  Set the tool tip text in the component specified by 'Index'.

  Note

  If you used the screen designer of the integrated development environment, this method may be called before a method that pastes components on a tool bar.

  Because such a situation leads to an error, use the source editor of the integrated development environment to change the order of calling methods as follows:

  Example: Pasting an image button on the tool bar and setting "Change" in the tool tip text

  JFImageButton button  = new JFImageButton("Change");
  JFToolbar     toolbar = new JFToolbar();

  tabpanel.add(button);           // Paste an image button on the tool bar.
  toolbar.setToolTip(0,"Change"); // Set tool tip text.

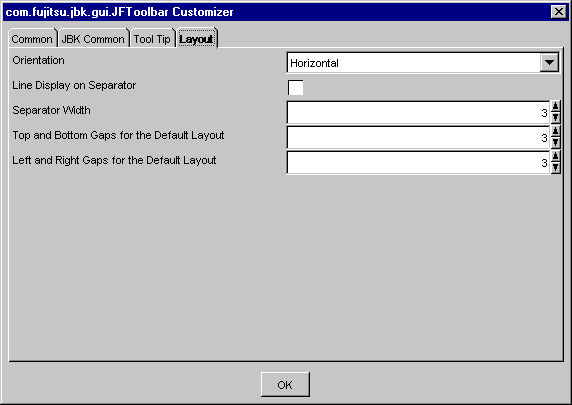

• Layout

  Set the tool bar layout.

  The 'Line Display on Separator' and 'Separator Width' are effective only at the time specified separator.

  The Separator isn't able to add, insert, remove by Customizer. When the Separator is operated, use the source editor of the integrated development environment.



  Orientation

  Select the tool bar orientation from Vertical/Horizontal.

  Line Display on Separator

  Sets whether to display the line to the separator. If this item is checked, to display the line to the separator

  Separator Width

  Set the separator width with a pixel value. Specify from 1 to 2147483647 as the separator width.

  Top and Bottom Gaps for the Default Layout

  When the 'Default' is set for the 'Layout,' set the spacing from the top and bottom edges of the tool bar to the component by a pixel value. Specify from 0 to 2147483647 as the spacing from the top and bottom edges in default layout.

  Left and Right Gaps for the Default Layout

  When the 'Default' is set for the 'Layout,' set the spacing from the left and right edges of the tool bar to the component by a pixel value. Specify from 0 to 2147483647 as the spacing from the left and right edges in default layout.
