Interstage Studio J Business Kit GUI Library User's Guide

3.32 Toggle button Bean

The Toggle Button Bean has the following information and Customizer functions.

• Property information

• Event information

• Method information

See

"Package Guide"- JFToggleButton

Property information

Name	Type	Reference	Setting	Explanation
autoTurn	boolean	Y	Y	Automatic loopback/no automatic loopback
background	java.awt Color	Y	Y	Background color
borderColor	java.awt Color	Y	Y	Border line color
borderType	int	Y	Y	Border line type
borderWidth	int	Y	Y	Border line width
buttonAlignment	int	Y	Y	Display position of check box
buttonBackground	java.awt Color	Y	Y	Background color of check box
buttonForeground	java.awt Color	Y	Y	Foreground color of check box
buttonGroup	com.fujitsu.jbk.gui JFButtonGroup	Y	Y	Button group
componentOrientation	java.awt ComponentOrientation	Y	Y	The orientation of the string. It depends on the language
enableMenu	boolean	Y	Y	Whether to display the popup menu
enableToolTip	boolean	Y	Y	Whether to display the tool tip
enabled	boolean	Y	Y	Whether enabled
focusTraversalKeysEnabled	boolean	Y	Y	Whether the focus traversal key is available
focusable	boolean	Y	Y	Whether the focus can be set
font	java.awt Font	Y	Y	Font
foreground	java.awt Color	Y	Y	Foreground color
ignoreRepaint	boolean	Y	Y	Whether the paint message of the operating system should be ignored
label	java.lang String	Y	Y	Label character string
locale	java.util Locale	Y	Y	Locale information
name	java.lang String	Y	Y	Name
preferredColorDisplay	boolean	Y	Y	Whether display the preferred color
remoteFont	boolean	Y		Whether the registered font is a remote font
sendItemEventBySetState	boolean	Y	Y	whether to issue ItemEvent when the state of the toggle button is changed
state	boolean	Y	Y	State of button
toolTipText	java.lang String	Y	Y	Tool tip text
visible	boolean	Y	Y	Whether visible

Event information

Name	Listener	Addition/removal	Method	Explanation
component	java.awt.event ComponentListener	addComponentListener removeComponentListener	componentResized	Is issued when the component status changes.
			componentMoved
			componentShown
			componentHidden
focus	java.awt.event FocusListener	addFocusListener removeFocusListener	focusGained	Is issued when the focus moves.
			focusLost
inputMethod	java.awt.event InputMethodListener	addInputMethodListener removeInputMethodListener	caretPositionChanged	Is issued when the input method status changes.
			inputMethodTextChanged
item	java.awt.event ItemListener	addItemListener removeItemListener	itemStateChanged	Is issued when the button state changes.
key	java.awt.event KeyListener	addKeyListener removeKeyListener	keyTyped	Is issued by key operation.
			keyPressed
			keyReleased
mouse	java.awt.event MouseListener	addMouseListener removeMouseListener	mouseClicked	Is issued by mouse operation.
			mousePressed
			mouseReleased
			mouseEntered
			mouseExited
mouseMotion	java.awt.event MouseMotionListener	addMouseMotionListener removeMouseMotionListener	mouseDragged	Is issued when the mouse moves.
			mouseMoved
mouseWheel	java.awt.event MouseWheelListener	addMouseWheelListener removeMouseWheelListener	mouseWheelMoved	Is issued by mouse wheel operation.
propertyChange	java.beans PropertyChangeListener	addPropertyChangeListener removePropertyChangeListener	propertyChange	Is issued when the property changes.

Method information

Name	Parameters	Explanation
hideToolTip		Erases the tool tip.
requestFocus		Requests an input focus.
showToolTip	java.lang String	Displays the tool tip.
	java.awt Point
	java.awt Dimension
	long
transferFocus		Moves the focus to the next component.

Customizer

• Component common property

• JBK GUI common property

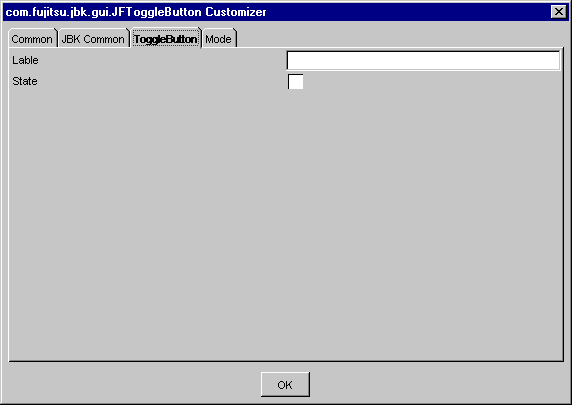

• ToggleButton

  Set the toggle button.



  Label

  Set the label to be displayed for the toggle button.

  State

  Set the state either "on" of "off". The "on" state is the toggle button is currently selected.

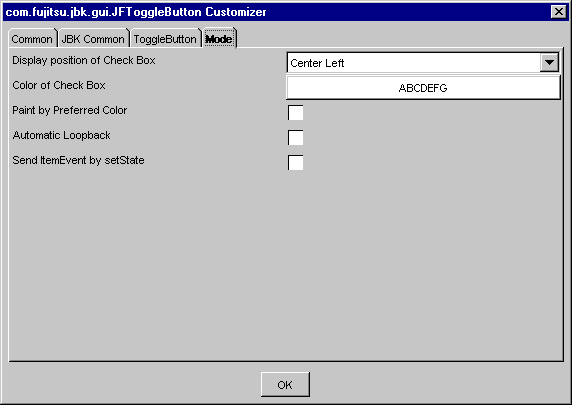

• Mode

  Set the toggle button mode.



  Display position of Check Box

  Select the display position of check box from among Top Left, Center Left, or Bottom Left.

  Color of Check Box

  Set the foreground color and background color of the check box. When the button is pressed, [Foreground Color/Background Color] setting dialog is displayed.

  Paint by Preferred Color

  Set to paint by preferred color or usual color. If this item is checked, paint by preferred color (when to be not use, paint by impossibility color).

  Automatic Loopback

  Set whether to fold the label string automatically or not. If checked, the label is automatically folded.

  Send ItemEvent by setState

  Sets whether to issue ItemEvent when the state of the toggle button is changed.

  If this item is checked, ItemEvent isn't issued when the state of the toggle button is changed.
