3.22 Progress bar Bean

The progress bar Bean has the following information and Customizer functions.

• Property information

• Event information

• Method information

See

"Package Guide"- JFProgressbar

Property information

Name	Type	Reference	Setting	Explanation
alignment	int	Y	Y	Display position of percentage
background	java.awt Color	Y	Y	Background color
borderColor	java.awt Color	Y	Y	Border line color
borderType	int	Y	Y	Border line type
borderWidth	int	Y	Y	Border line width
componentOrientation	java.awt ComponentOrientation	Y	Y	The orientation of the string. It depends on the language
current	int	Y	Y	Current position
enableMenu	boolean	Y	Y	Whether to display the popup menu
enableToolTip	boolean	Y	Y	Whether to display the tool tip
enabled	boolean	Y	Y	Whether enabled
focusTraversalKeysEnabled	boolean	Y	Y	Whether the focus traversal key is available
focusable	boolean	Y	Y	Whether the focus can be set
font	java.awt Font	Y	Y	Font
foreground	java.awt Color	Y	Y	Foreground color
freeText	java.lang String	Y	Y	Character string displayed in the free format
ignoreRepaint	boolean	Y	Y	Whether the paint message of the operating system should be ignored
locale	java.util Locale	Y	Y	Locale information
maximum	int	Y	Y	Upper limit
minimum	int	Y	Y	Lower limit
name	java.lang String	Y	Y	Name
offset	int	Y	Y	Increment value
orientation	int	Y	Y	Orientation
remoteFont	boolean	Y		Whether the registered font is a remote font
returnable	boolean	Y	Y	Loopback/no loopback
style	int	Y	Y	Display format
toolTipText	java.lang String	Y	Y	Tool tip text
visible	boolean	Y	Y	Whether visible
visiblePercentage	boolean	Y	Y	Percentage display/no display

Event information

Name	Listener	Addition/removal	Method	Explanation
component	java.awt.event ComponentListener	addComponentListener removeComponentListener	componentResized	Is issued when the component status changes.
			componentMoved
			componentShown
			componentHidden
focus	java.awt.event FocusListener	addFocusListener removeFocusListener	focusGained	Is issued when the focus moves.
			focusLost
inputMethod	java.awt.event InputMethodListener	addInputMethodListener removeInputMethodListener	caretPositionChanged	Is issued when the input method status changes.
			inputMethodTextChanged
key	java.awt.event KeyListener	addKeyListener removeKeyListener	keyTyped	Is issued by key operation.
			keyPressed
			keyReleased
mouse	java.awt.event MouseListener	addMouseListener removeMouseListener	mouseClicked	Is issued by mouse operation.
			mousePressed
			mouseReleased
			mouseEntered
			mouseExited
mouseMotion	java.awt.event MouseMotionListener	addMouseMotionListener removeMouseMotionListener	mouseDragged	Is issued when the mouse moves.
			mouseMoved
mouseWheel	java.awt.event MouseWheelListener	addMouseWheelListener removeMouseWheelListener	mouseWheelMoved	Is issued by mouse wheel operation.
propertyChange	java.beans PropertyChangeListener	addPropertyChangeListener removePropertyChangeListener	propertyChange	Is issued when the property changes.

Method information

Name	Parameters	Explanation
hideToolTip		Erases the tool tip.
requestFocus		Requests an input focus.
showToolTip	java.lang String	Displays the tool tip.
	java.awt Point
	java.awt Dimension
	long
step		Advances the current position only as much as the set increment.
step	int	Advances the current position only as much as the specified value.
step	int	Displays the specified character string and advances the current position only as much as the specified value.
	java.lang String
step	java.lang String	Displays the character string and advances the current position only as much as the set increment.
transferFocus		Moves the focus to the next component.

Customizer

• Component common property

• JBK GUI common property

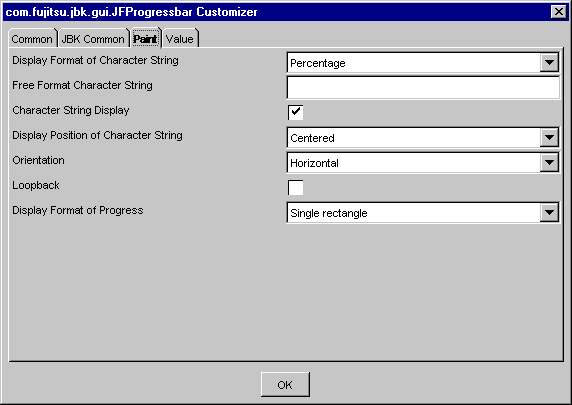

• Paint

  Set the progress bar display information.



  Display Format of Character String

  Select the progress status character string from Percentage/Free format.

  Free Format Character String

  Specify the character string for when the free format is selected in 'Display Format of Character String'.

  Character String Display

  Set display/no display for the progress status character string. If this item is checked, the character string is displayed.

  Display Position of Character String

  Select the display position of the progress-status character string from among Left-justified, Centered, or Right-justified.

  Orientation

  Select the orientation of the progress bar from Vertical/Horizontal.

  Loopback

  Normally, when the current value exceeds the upper limit, the upper limit is set. If this item is checked, the value that exceeds the upper limit is looped back and displayed. For example, when the value is advanced by 10 if the current value is 95 and the upper limit is 100, the current value becomes 5.

  Display Format of Progress

  Select the display format of progress from Single rectangle/Multiple rectangle.

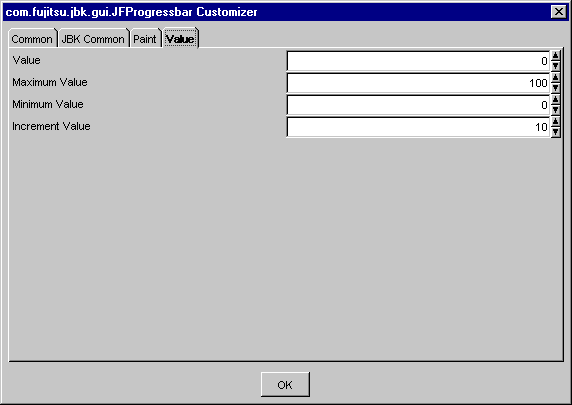

• Value

  Set the progress bar value information.



  Value

  Set the current value. Specify from 0 to 2147483647 as the value.

  Maximum Value

  Set the maximum value. Specify from 1 to 2147483647 as the maximum value.

  Minimum Value

  Set the minimum value. For the minimum value, set a series of positive integers starting at 0. The maximum value of the minimum value is the maximum value minus 1.

  Increment Value

  Set the increment value. Specify from 0 to 2147483647 as the increment value.
