Interstage Studio J Business Kit GUI Library User's Guide

3.21 Panel Bean

The panel Bean has the following information and Customizer functions.

• Property information

• Event information

• Method information

See

"Package Guide"- JFPanel

Property information

Name	Type	Reference	Setting	Explanation
autoFocus	boolean	Y	Y	Set focus function valid/invalid
background	java.awt Color	Y	Y	Background color
componentOrientation	java.awt ComponentOrientation	Y	Y	The orientation of the string. It depends on the language
enabled	boolean	Y	Y	Whether enabled
firstFocusComponent	java.awt Component	Y	Y	Component focused first
focusTraversalKeysEnabled	boolean	Y	Y	Whether the focus traversal key is available
focusable	boolean	Y	Y	Whether the focus can be set
font	java.awt Font	Y	Y	Font
foreground	java.awt Color	Y	Y	Foreground color
ignoreRepaint	boolean	Y	Y	Whether the paint message of the operating system should be ignored
layout	java.awt LayoutManager	Y	Y	Layout manager
locale	java.util Locale	Y	Y	Locale information
name	java.lang String	Y	Y	Name
visible	boolean	Y	Y	Whether visible
wrapAround	boolean	Y	Y	Whether to set wraparound of the focus movement

Event information

Name	Listener	Addition/removal	Method	Explanation
component	java.awt.event ComponentListener	addComponentListener removeComponentListener	componentResized	Is issued when the component status changes.
			componentMoved
			componentShown
			componentHidden
container	java.awt.event ContainerListener	addContainerListener removeContainerListener	componentAdded	Is issued when the container status changes.
			componentRemoved
focus	java.awt.event FocusListener	addFocusListener removeFocusListener	focusGained	Is issued when the focus moves.
			focusLost
inputMethod	java.awt.event InputMethodListener	addInputMethodListener removeInputMethodListener	caretPositionChanged	Is issued when the input method status changes.
			inputMethodTextChanged
key	java.awt.event KeyListener	addKeyListener removeKeyListener	keyTyped	Is issued by key operation.
			keyPressed
			keyReleased
mouse	java.awt.event MouseListener	addMouseListener removeMouseListener	mouseClicked	Is issued by mouse operation.
			mousePressed
			mouseReleased
			mouseEntered
			mouseExited
mouseMotion	java.awt.event MouseMotionListener	addMouseMotionListener removeMouseMotionListener	mouseDragged	Is issued when the mouse moves.
			mouseMoved
mouseWheel	java.awt.event MouseWheelListener	addMouseWheelListener removeMouseWheelListener	mouseWheelMoved	Is issued by mouse wheel operation.
propertyChange	java.beans PropertyChangeListener	addPropertyChangeListener removePropertyChangeListener	propertyChange	Is issued when the property changes.

Method information

Name	Parameters	Explanation
add	java.awt Component	Adds the component.
add	java.awt Component	Adds the component.
	int
add	java.awt Component	Adds the component.
	java.lang Object
add	java.awt Component	Adds the component.
	java.lang Object
	int
drawViewImage	java.awt Graphics	Draws the panel screen image.
drawViewImage	java.awt Graphics	Draws the panel screen image in a specified size.
	java.awt Rectangle
remove	int	Deletes the component.
remove	java.awt Component	Deletes the component.
removeAll		Deletes all components.
removeNotify		Notifies a component that it has been removed from the container. If a peer exists, it is destroyed.
requestFocus		Requests an input focus.
transferFocus		Moves the focus to the next component.

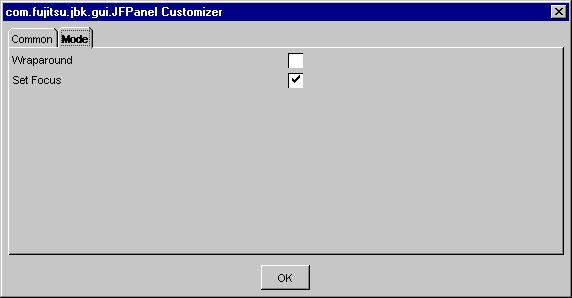

Customizer

• Component common property

• Mode

  Set the panel mode.



  Wraparound

  Set wraparound for the focus movement. If checked, the focus moves by wrapping around.

  Set Focus

  Set valid/invalid to set focus function. If this item is checked, focus is set up in component arranged by one when it draws at first.
