Interstage Studio J Business Kit GUI Library User's Guide

3.20 Multi-line label Bean

The multi-line label Bean has the following information and Customizer functions.

• Property information

• Event information

• Method information

See

"Package Guide"- JFMultiLineLabel

Property information

Name	Type	Reference	Setting	Explanation
alignmentHorizontal	int	Y	Y	Horizontal display position of character string
alignmentVertical	int	Y	Y	Vertical display position of character string
autoTurn	boolean	Y	Y	Automatic loopback/no automatic loopback
background	java.awt Color	Y	Y	Background color
blink	boolean	Y	Y	Whether to blink the character string
blinkInterval	long	Y	Y	Interval of blinking the character string
borderColor	java.awt Color	Y	Y	Border line color
borderType	int	Y	Y	Border line type
borderWidth	int	Y	Y	Border line width
characterCodeMapped	boolean	Y	Y	Whether to convert incompatible character code
componentOrientation	java.awt ComponentOrientation	Y	Y	The orientation of the string. It depends on the language
enableMenu	boolean	Y	Y	Whether to display the popup menu
enableToolTip	boolean	Y	Y	Whether to display the tool tip
enabled	boolean	Y	Y	Whether enabled
equality	boolean	Y	Y	Proportional display/no proportional display
focusTraversalKeysEnabled	boolean	Y	Y	Whether the focus traversal key is available
focusable	boolean	Y	Y	Whether the focus can be set
font	java.awt Font	Y	Y	Font
foreground	java.awt Color	Y	Y	Foreground color
ignoreRepaint	boolean	Y	Y	Whether the paint message of the operating system should be ignored
insets	java.awt Insets	Y	Y	Inset
linePitch	int	Y	Y	Line spacing
locale	java.util Locale	Y	Y	Locale information
name	java.lang String	Y	Y	Name
remoteFont	boolean	Y		Whether the registered font is a remote font
reverse	boolean	Y	Y	Whether to display in reverse video or not
text	java.lang String	Y	Y	Character string
toolTipText	java.lang String	Y	Y	Tool tip text
underlineColor	java.awt Color	Y	Y	Underline color
underlineType	int	Y	Y	Underline type
visible	boolean	Y	Y	Whether visible
wordWrap	boolean	Y	Y	Word wrap/no word wrap

Event information

Name	Listener	Addition/removal	Method	Explanation
component	java.awt.event ComponentListener	addComponentListener removeComponentListener	componentResized	Is issued when the component status changes.
			componentMoved
			componentShown
			componentHidden
focus	java.awt.event FocusListener	addFocusListener removeFocusListener	focusGained	Is issued when the focus moves.
			focusLost
inputMethod	java.awt.event InputMethodListener	addInputMethodListener removeInputMethodListener	caretPositionChanged	Is issued when the input method status changes.
			inputMethodTextChanged
key	java.awt.event KeyListener	addKeyListener removeKeyListener	keyTyped	Is issued by key operation.
			keyPressed
			keyReleased
mouse	java.awt.event MouseListener	addMouseListener removeMouseListener	mouseClicked	Is issued by mouse operation.
			mousePressed
			mouseReleased
			mouseEntered
			mouseExited
mouseMotion	java.awt.event MouseMotionListener	addMouseMotionListener removeMouseMotionListener	mouseDragged	Is issued when the mouse moves.
			mouseMoved
mouseWheel	java.awt.event MouseWheelListener	addMouseWheelListener removeMouseWheelListener	mouseWheelMoved	Is issued by mouse wheel operation.
propertyChange	java.beans PropertyChangeListener	addPropertyChangeListener removePropertyChangeListener	propertyChange	Is issued when the property changes.

Method information

Name	Parameters	Explanation
hideToolTip		Erases the tool tip.
removeNotify		Notifies a component that it has been removed from the container. If a peer exists, it is destroyed.
requestFocus		Requests an input focus.
showToolTip	java.lang String	Displays the tool tip.
	java.awt Point
	java.awt Dimension
	long
transferFocus		Moves the focus to the next component.

Customizer

• Component common property

• JBK GUI common property

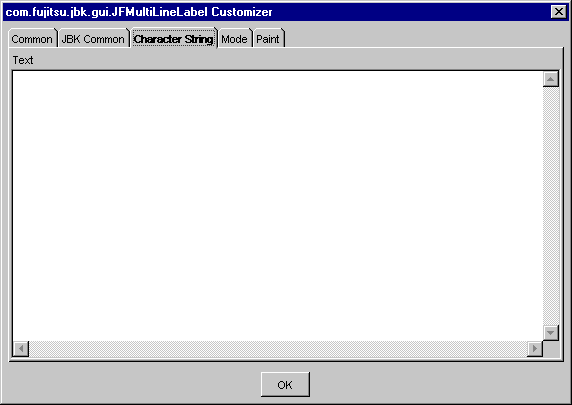

• Character String

  Set the character string to be displayed in the multi-line label.



  Text

  Set the character string to be displayed in the multi-line label.

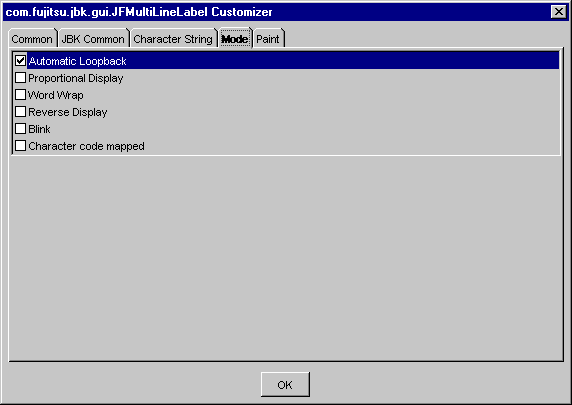

• Mode

  Set the multi-line label mode.



  Automatic Loopback

  Set whether to fold the label string automatically or not. If checked, the label is automatically folded.

  Proportional Display

  Set proportional display/no proportional display. If this item is checked, proportional display is used.

  Word Wrap

  Set word wrap/no word wrap. If this item is checked, words are wrapped.

  Reverse Display

  Set the reverse video mode or not. If this is checked, the display is in reverse mode.

  Blink

  Set to blink character string or not. If checked, the character string blinks. The interval time can be set in the 'Blink Interval' of the 'Paint' property.

  Character code mapped

  Set whether to convert YEN SIGN. If checked, character code conversion is performed.

  For the character codes to be converted, see the following table:

  SJIS	Unicode	Microsoft
  0x815F	0x005C[REVERSE SOLIDUS]	[Unicode]U+00A5[YEN SIGN]

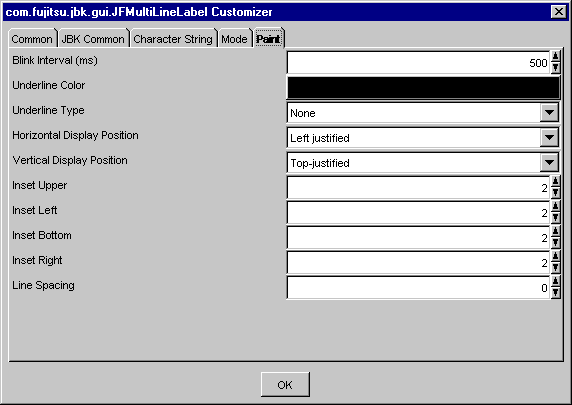

• Paint

  Set the multi-line label display information.



  Blink Interval (ms)

  Set the blink interval of the display character string in milliseconds (ms). Specify from 1 to 2147483647 as the blink interval.

  Underline Color

  Set the underline color. When the button is pressed, Color setting dialog is displayed.

  Underline Type

  Select the underline type from among None, Convex, Concave, or Flat.

  Horizontal Display Position

  Select the horizontal display position of the strings from among Left justified, Centered or Right justified.

  Vertical Display Position

  Select the vertical display position of the strings from among Top-justified, Centered or Bottom-justified.

  Inset Upper

  Set the upper inset with a pixel value. Specify from -2147483648 to 2147483647 as the inset upper.

  Inset Left

  Set the left inset with a pixel value. Specify from -2147483648 to 2147483647 as the inset left.

  Inset Bottom

  Set the bottom inset with a pixel value. Specify from -2147483648 to 2147483647 as the inset bottom.

  Inset Right

  Set the right inset with a pixel value. Specify from -2147483648 to 2147483647 as the inset right.

  Line Spacing

  Set the line spacing with a pixel value. Specify from 0 to 2147483647 as the line spacing.
