Chapter 2 Machine Administration Functions

> 2.1 Hardware Monitoring Functions

2.1.1 Hardware configuration display function

The hardware configuration display function displays the hardware configuration and hardware status.

This function is used to install the main unit or during main unit operation.

The table below outlines the hardware configuration display functions.

Function name	Outline
Hardware Configuration Display	Displays hardware configuration information and the status of each hardware component. It displays the names of CPUs, memory banks, disks, and batteries. It displays also the symbols representing the status of each hardware component.
Hardware Detailed Configuration Display	It displays the names of CPUs, memory banks, disks, and batteries. It displays detailed hardware information about each component, such as the manufacturer, product name, specifications, operational status, and so on. The displayed items differ depending on the component.

Function name

Outline

Hardware Configuration Display

Displays hardware configuration information and the status of each hardware component.

It displays the names of CPUs, memory banks, disks, and batteries.

It displays also the symbols representing the status of each hardware component.

Hardware Detailed Configuration Display

It displays the names of CPUs, memory banks, disks, and batteries.

It displays detailed hardware information about each component, such as the manufacturer, product name, specifications, operational status, and so on. The displayed items differ depending on the component.

The figures below show examples for the display of hardware configuration information.

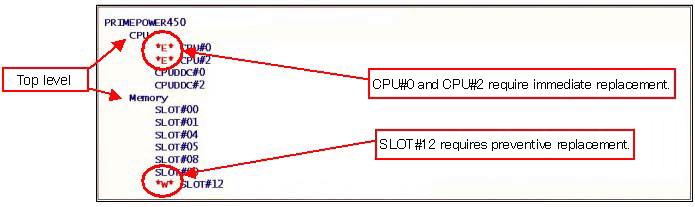

Example of display in the CUI menu

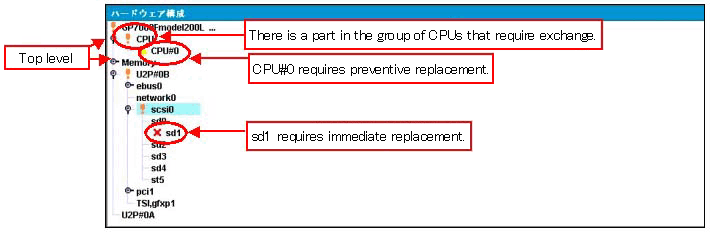

Example of display in the GUI menu

In the hardware configuration display, the symbols listed in the table below are used to represent the hardware status.

- : Not supported

Display in CUI menu/command	Status	Action taken
E	Immediate swapping required	Replace the hardware component immediately.
W	End-of-life replacement required	Prepare to replace the hardware component because end of the set product life is approaching.
W	Preventive replacement required	Prepare for replacing the hardware component because preventive replacement is required.
-	There is a component on one of the subsequent layers of the tree that requires replacement.	Check and replace the appropriate part because there is a component on one of the subsequent layers of the tree that requires replacement.

For PRIMEPOWER800/1000/2000 and GP7000F model 1000/2000, in terms of the hard disk only, symbols indicating the hardware status are displayed.
The devices which are not in use may not be displayed.

For a PRIMEPOWER1/200/400/600 or GP7000F model 200/200R/400/400R/400A/600/600R, see Section 3.1.5, "Hardware Configuration."

For a PRIMEPOWER250/450, see Section 3.2.5, "Hardware Configuration."

For a PRIMEPOWER650/850/900/1500/2500/HPC2500, see Section 3.3.5, "Hardware Configuration."

For a PRIMEPOWER800/1000/2000 or GP7000F model 1000/2000, see Section 3.4.5, "Hardware Configuration."
