3.2.5 Hardware Configuration

This section describes how to operate the hardware configuration menus.

Displaying the Hardware Configuration menu

Operation

1. Select [Hardware Configuration] from the CUI menu.

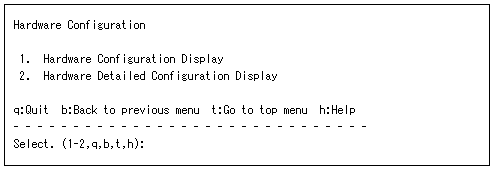

   The Hardware Configuration menu opens.



Displaying hardware configuration information

The following describes how to operate the Hardware Configuration Display:

Operation

1. From the Hardware Configuration menu, select [Hardware Configuration Display].

   The hardware configuration information appears.

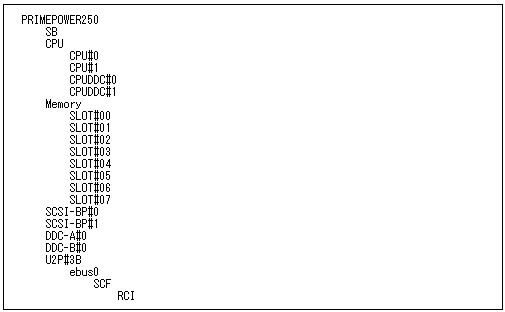

<Example>

<Explanation of the display>

The status of the following hardware components is displayed: CPU, memory, disk, battery, channels, adapter, and devices. If a hardware fault is detected, a symbol indicating the status appears for the corresponding hardware component.

For information about the symbols indicating statuses, see Section 2.1.1, "Hardware configuration display function."

• A disk managed by SynfinityDISK or PRIMECLUSTER GDS is displayed as "sfdsk" after sdn or hddvn.
• A device detected as faulty at main unit initialization and which is degraded is displayed under "Failed Units."

Displaying detailed hardware configuration information

The following describes how to operate the Hardware Detailed Configuration Display:

Operation

1. From the Hardware Configuration menu, select [Hardware Detailed Configuration Display].

   The detailed hardware configuration information appears.

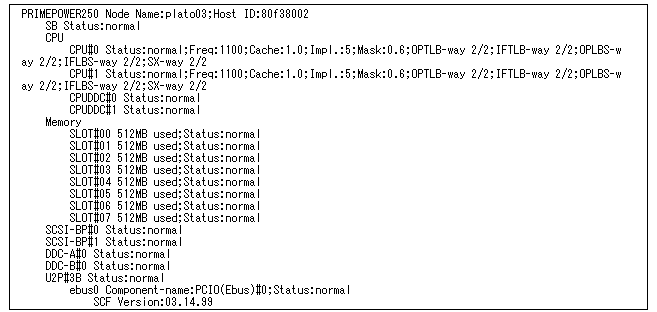

   <Example>



<Explanation of the display>

Detailed status information of the following hardware components appears: CPU, memory, disk, battery, channels, adapter, and devices. If a hardware fault is detected, a symbol indicating the status is displayed for the corresponding hardware component.

For information about the symbols indicating statuses, see Section 2.1.1, "Hardware configuration display function."
