REMCS Agent Operator's Guide 1.5

2.4.3.2 REMCS environment settings

Specify the HTTP setup and the periodic connection schedule by using the REMCS environment setting menu of the machine administration menu.

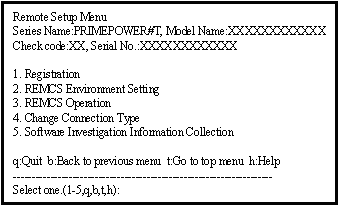

The REMCS environment setting menu can be displayed as follows.

1. Select "Remote Setup" from the machine administration menu.

2. Display the REMCS Agent menu.



3. Select "REMCS Environment Setting."

   -

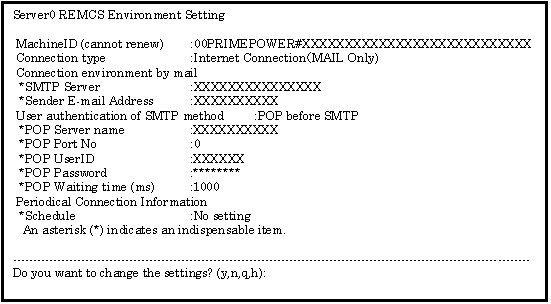

   Enter the needed information in the "REMCS Environment Setting" menu.

• For the items that have the white circle "o" in the "Required Item" column, the information requested is mandatory.

• Under the following conditions, when setup menu noticed needs of setup, setup menu of "REMCS Environment Setting" is automatically started after registration is finished.

  When following models use Enhanced Support Facility 2.4 or later.

  PRIMEPOWER250/450/650/850

Required Item	Item	Description
o	Connection Environment by e-mail SMTP Server	Enter the name of the mail server used for communication with REMCS.
O	Connection Environment by e-mail Sender E-mail Address	Enter the e-mail address used for communication with REMCS Center. This address is specified in the "From" line (sender address) column of the mail header to be sent from the server to the REMCS Center. The sender's e-mail address must have the qualification to send e-mail outside your domain.
	User authentication of SMTP method	Select the user authentication of SMTP method, 0: none ,1:POP before SMTP
*	POP Server name	Enter the POP3 Server name.
*	POP Port No	Enter the POP3 Server PORT No..
*	POP User ID	Enter the user ID for POP3 Server.
*	POP Password	Enter the password of the user ID for POP3 Server.
*	POP Waiting time	Enter the waiting time before starting mail transmission after POP3 attestation using 5 characters or less.
O	Periodical Connection Information Schedule	Specify the schedule of periodic connection to the REMCS Center. Select the connection interval from everyday, everyday (except Sunday), everyday (except Saturday and Sunday) and every week. When the connection interval is every week, specify a day of the week. And specify the operation start time and end time. The time of periodic connection is automatically determined within the operating hours.

When registration is complete, a confirmation message is displayed. Check the entry, and select "Updating the REMCS Environment."

After the environment is updated, perform "Checking Connection with REMCS Center."
