REMCS Agent Operator's Guide 1.5

2.4.3.1 Registration

If Internet Connection is selected from the above menu to select the connection type, register customer information to the REMCS Center.

• The REMCS agent which is described in "2.1 Using the Services", asks whether stored data should be used for registration. If any other system has registration data, you can save them to a file and transfer it to any working directory on a system, which you are going to register, prior to start registration. You can instruct to read this transferred information to use it as template.



Enter the following information in the Registration menu.

• For the items that have the white circle "o" in the "Required Item" column, the information requested is mandatory.

• The items that have the asterisk "*" in the "Required Item" column are need for a setup with user authentication of SMTP (POP before SMTP).

• POP Server name, POP User ID, and POP password are supplied without a default value. If using "POP" for a e-mail the fields are mandatory.

  When the POP Port No 0 is set up, the Port is referenced from the /etc/inet/services file of the machine. When a port is not able to be acquired from a /etc/inet/services file, 110 (standard Port No of POP3) is used.

  The item "POP waiting time" is the waiting time which it takes after the authentication by the POP3 server before starting the mail transmission to the SMTP server actually.
  This value is able to specify in a ms unit. The default value is 1000ms.

Required Item	Item	Description
o	Company Name	Enter a company name using 60 characters or less.
o	Department/ Division	Enter the name of a department/division using 40 characters or less.
	Country	Enter a country name using 2 characters or less.
o	Address	Enter an address using 60 characters or less.
	Building	If the address contains the name of a building, enter the name using 40 characters or less.
o	Administrator Name	Enter the name of the administrator name of a machine using 40 characters or less. Separate the family name and given name with a blank.
o	E-mail Address	Enter the e-mail address of the administrator using 60 characters or less.
	Zip/Postal Code	Enter the zip/postal code of the address using 10 characters or less.
o	Phone Number	Enter a phone number using 20 characters or less.
	Fax Number	Enter a fax number using 20 characters or less.
	Machine Unique Name	This is a name used by a customer and our engineer to specify one of the customer's machines. Enter a name that is convenient for the customer using 32 characters or less.
o	Mail server (SMTP)	Specify the name of the mail server.
o	Sender E-mail Address	Enter the sender's e-mail address (equivalent to "from" of ordinary e-mail). The sender's e-mail address must have the qualification to send e-mail outside your domain.
	User authentication of SMTP method	Select the user authentication of SMTP method, 0: none ,1:POP before SMTP
*	POP Server name	Enter the POP3 Server name using 64 characters or less.
*	POP Port No	Enter the POP3 Server PORT No. using 5 characters or less.
*	POP User ID	Enter the user ID for POP3 Server using 64 characters or less.
*	POP Password	Enter the password of the user ID for POP3 Server using 64 characters or less.
*	POP Waiting time	Enter the waiting time before starting mail transmission after POP3 attestation using 5 characters or less.
	Address for the machine	Enter an address where the machine is placed, using 60 characters or less.
	Building for the machine	If the address contains the name of a building where the machine is placed, enter the name using 40 characters or less.

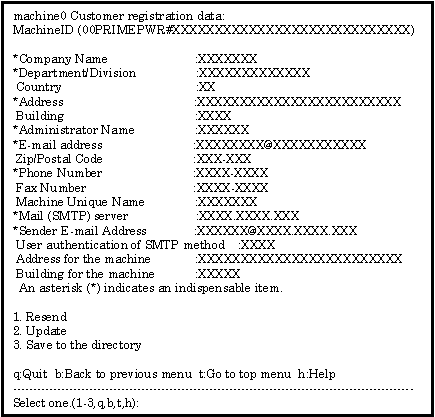

When registration is complete, a confirmation message is displayed. Confirm the entry and select "On-line registration."

• The "Creating the Upload File" option is NOT currently supported. Customers should select "On-line registration" or the installation/set-up will not completed.

• To register information in English, be sure to use only alphanumeric characters.

• Under the following conditions, when setup menu noticed needs of setup, setup menu of "REMCS Environment Setting" is automatically started after registration is finished.

  When following models use Enhanced Support Facility 2.4 or later.

  PRIMEPOWER250/450/650/850

As described before, REMCS agent of specific revision can reuse registration data. In this case, you can choose "Save to the directory" in registration menu. With using this menu point, you can save registration data as template for registration data of other machine.

After the registration, please choose following menu item:

1. Select "Registration" from the REMCS Agent menu.



If you want to use registered information on any other system, select "Save to the directory" and enter path to any temporary directory. Two files, "rm_bkcus.def" and "rm_bkenv.def" are created to the directory. Copy these files to any directory on a system, which you would like to register at REMCS Center.
