REMCS Agent Operator's Guide 1.5

2.2 Setup for PRIMEPOWER models 800/900/1000/1500/2500/HCP2500

The machine administration menu included in System Console Software and SMC REMCS Agent (installed in the System Console) are used for the following machines:

• PRIMEPOWER800/1000/2000

• PRIMEPOWER900/1500/2500/HPC2500

Open the machine administration menu provided by System Console Software by using the following procedure.

1. Log on to the system console.

2. Click on "Machine Administration Menu" in the tool menu window.

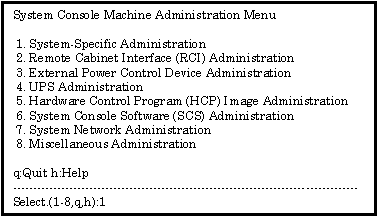

3. The Machine Administration Menu window opens.

The REMCS Agent menu can be displayed as follows.

1. Select "System-Specific Administration" from the main menu.

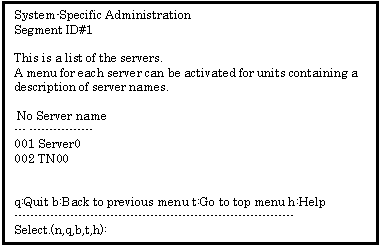

2. Select a machine from the System-Specific Administration menu to register it to the REMCS center.
Select a machine that uses the REMCS services.

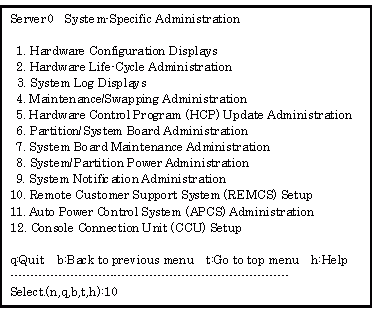

3. The menu of the selected machine is displayed.

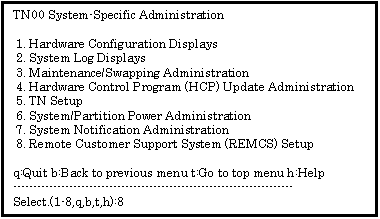

[When you selected a "High Speed Optical Interconnection"]

4. Select "Remote Customer Support System (REMCS) Setup."

---

2.2.1 Selection of connection type

2.2.2 Internet Connection

2.2.3 Internet Connection(MAIL Only)

2.2.4 Point-to-Point(ISDN/VPN) Connection

2.2.5 Management Server Connection

2.2.6 REMCS service for Hot Spare SMC Configuration
