Interstage Studio J Business Kit GUI Library User's Guide

3.29 Tab panel Bean

The tab panel Bean has the following information and Customizer functions.

• Property information

• Event information

• Method information

See

"Package Guide"- JFTabPanel

Property information

Name	Type	Reference	Setting	Explanation
background	java.awt Color	Y	Y	Background color
borderColor	java.awt Color	Y	Y	Border line color
borderType	int	Y	Y	Border line type
borderWidth	int	Y	Y	Border line width
component	(Array) java.awt Component	(Array) Y		Specified position page
componentOrientation	java.awt ComponentOrientation	Y	Y	The orientation of the string. It depends on the language
controlEnabled	boolean	Y	Y	Whether to operation of the possible/impossibility of the added component
controlEnabled	boolean	Y	Y	Whether to operation of the possible/impossibility of the added component
enableMenu	boolean	Y	Y	Whether to display the popup menu
enableToolTip	boolean	Y	Y	Whether to display the tool tip
enabled	boolean	Y	Y	Whether enabled
enabledToFront	boolean	Y	Y	Whether to display the specified page isn't enabled.
equalizeWidth	boolean	Y	Y	Whether to display the width of the page switch button at regular intervals
focusTraversalKeysEnabled	boolean	Y	Y	Whether the focus traversal key is available.
focusable	boolean	Y	Y	Whether the focus can be set
font	java.awt Font	Y	Y	Font
foreground	java.awt Color	Y	Y	Foreground color
ignoreRepaint	boolean	Y	Y	Whether the paint message of the operating system should be ignored
image	(Array) java.awt Image	(Array) Y	(Array) Y	Image displayed on the page switch button on the page at the specified position
indexEnabled	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Whether the specified page is enabled.
locale	java.util Locale	Y	Y	Locale information
name	java.lang String	Y	Y	Name
remoteFont	boolean	Y		Whether the registered font is a remote font
tabLabelColor	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Color of the label of specified page.
tabPosition	int	Y	Y	Display position of tab
tabname	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Name of the page at the specified position
toolTipText	java.lang String	Y	Y	Tool tip text
visible	boolean	Y	Y	Whether visible

Event information

Name	Listener	Addition/removal	Method	Explanation
component	java.awt.event ComponentListener	addComponentListener removeComponentListener	componentResized	Is issued when the component status changes.
			componentMoved
			componentShown
			componentHidden
container	java.awt.event ContainerListener	addContainerListener removeContainerListener	componentAdded	Is issued when the pasted status changes.
			componentRemoved
focus	java.awt.event FocusListener	addFocusListener removeFocusListener	focusGained	Is issued when the focus moves.
			focusLost
inputMethod	java.awt.event InputMethodListener	addInputMethodListener removeInputMethodListener	caretPositionChanged	Is issued when the input method status changes.
			inputMethodTextChanged
key	java.awt.event KeyListener	addKeyListener removeKeyListener	keyTyped	Is issued by key operation.
			keyPressed
			keyReleased
mouse	java.awt.event MouseListener	addMouseListener removeMouseListener	mouseClicked	Is issued by mouse operation.
			mousePressed
			mouseReleased
			mouseEntered
			mouseExited
mouseMotion	java.awt.event MouseMotionListener	addMouseMotionListener removeMouseMotionListener	mouseDragged	Is issued when the mouse moves.
			mouseMoved
mouseWheel	java.awt.event MouseWheelListener	addMouseWheelListener removeMouseWheelListener	mouseWheelMoved	Is issued by mouse wheel operation.
propertyChange	java.beans PropertyChangeListener	addPropertyChangeListener removePropertyChangeListener	propertyChange	Is issued when the property changes.

Method information

Name	Parameters	Explanation
add	java.awt Component	Adds the component.
add	java.awt Component	Adds the component.
	int
add	java.awt Component	Adds the component.
	java.lang Object
add	java.awt Component	Adds the component.
	java.lang Object
	int
hideToolTip		Erases the tool tip.
remove	java.awt Component	Deletes the specified component.
remove	int	Deletes the component at the specified position.
remove	java.lang String	Deletes the component that corresponds to the page with the specified name.
removeAll		Deletes all components.
requestFocus		Requests an input focus.
show	java.awt Component	Displays the specified page.
show	int	Displays the page at the specified position.
show	java.lang String	Displays the page that has the specified name.
showFirst		Displays the first page.
showLast		Displays the last page.
showNext		Displays the next page.
showPrevious		Displays the previous page.
showToolTip	java.lang String	Displays the tool tip.
	java.awt Point
	java.awt Dimension
	long
transferFocus		Moves the focus to the next component.

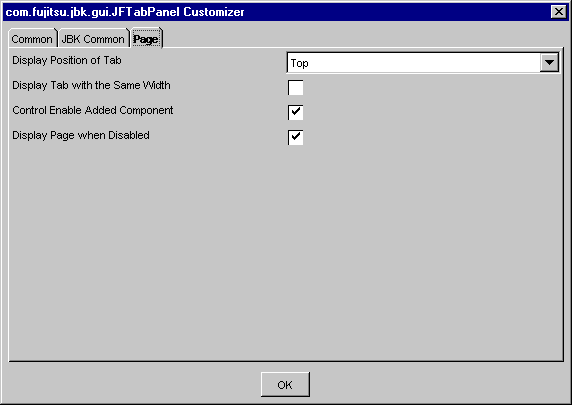

Customizer

• Component common property

• JBK GUI common property

• Page

  Set the page attribute.



  In the initial status, no page property can be set.
  Using the screen designer (screen edit function) of the integrated development environment, paste components on a tab panel and add a page, then set the properties of the page. To edit a page, specify the index of the page to be edited.

  Display Position of Tab

  Select the display position of the tab from Top/Bottom.

  Display Tab with the Same Width

  Set whether to display the tab display width. If this item is checked, the tabs of each page have the same width. If this item is unchecked, the tab width is adjusted to match the number of characters in the tab name.

  Control Enable Added Component

  Set whether to control enable added component. If this item is checked, set to enabled component is operated in accordance with this component and tab.

  Display Page when Disabled

  Set whether to display the disabled page. If this item is checked, set to display the page when disabled.
