3.28 Table format Bean

The table format Bean has the following information and Customizer functions.

• Property information

• Event information

• Method information

See

"Package Guide"- JFTableView

Property information

Name	Type	Reference	Setting	Explanation
background	java.awt Color	Y	Y	Background color
borderColor	java.awt Color	Y	Y	Border line color
borderType	int	Y	Y	Border line type
borderWidth	int	Y	Y	Border line width
cellAlignmentHorizontal	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Horizontal character display position of cells
cellAlignmentVertical	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Vertical character display position of cells
cellBackground	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Background color of cells
cellBorderColor	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Border color of cells
cellBorderType	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Border type of cells
cellBorderWidth	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Border width of cells
cellEditable	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Cell editable/not editable
cellFont	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Cell font
cellForeground	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Foreground color of cells
cellObject	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Object of a cell
cellString	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Character string in a cell
cellVisible	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Display/non-display of cells
columnAlignmentHorizontal	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Horizontal character display position of a cell in a specified column
columnAlignmentVertical	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Vertical character display position of a cell in a specified column
columnBackground	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Background color of cells in a specified column
columnBorderColor	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Color of border of cells in a specified column
columnBorderType	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Type of border of cells in a specified column
columnBorderWidth	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Width of border of cells in a specified column
columnCharWidth	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Width of the character in specified column
columnCount	int	Y	Y	Number of columns
columnEditable	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Whether or not cells in a specified column can be edited
columnFont	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Font of cells in a specified column
columnForeground	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Foreground color of cells in a specified column
columnVisible	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Whether or not cells in a specified column are visible
columnWidth	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Width of the specified column
columns	int	Y	Y	Number of columns that indicates the display size
componentOrientation	java.awt ComponentOrientation	Y	Y	The orientation of the string. It depends on the language
controlEnabled	boolean	Y	Y	Whether to operation of the possible/impossibility of the added component
defaultCell	com.fujitsu.jbk.gui JFCell	Y	Y	Default cell for data
defaultCellHeight	int	Y	Y	Default cell height
defaultCellWidth	int	Y	Y	Default cell width
defaultHeaderCell	com.fujitsu.jbk.gui JFCell	Y	Y	Default cell for header
dragMode	boolean	Y	Y	Table border line dragging enabled/disabled
editable	boolean	Y	Y	Entire cell editing enabled/disabled
enableMenu	boolean	Y	Y	Whether to display the popup menu
enableToolTip	boolean	Y	Y	Whether to display the tool tip
enabled	boolean	Y	Y	Whether enabled
focusTraversalKeysEnabled	boolean	Y	Y	Whether the focus traversal key is available
focusable	boolean	Y	Y	Whether the focus can be set
font	java.awt Font	Y	Y	Font
foreground	java.awt Color	Y	Y	Foreground color
format	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Format of the specified column
headerCellAlignmentHorizontal	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Horizontal character display position of a header cell
headerCellAlignmentVertical	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Vertical character display position of a header cell
headerCellBackground	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Background color of a header cell
headerCellBorderColor	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Color of border of a header cell
headerCellBorderType	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Type of border of a header cell
headerCellBorderWidth	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Width of border of a header cell
headerCellFont	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Font of a header cell
headerCellForeground	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Foreground color of a header cell
headerCellObject	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Object of a header cell
headerCellString	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Character string in a header cell
headerCellVisible	com.fujitsu.jbk.gui JFCellObjectProperty		Y	Whether to display a header cell
headerColumnCharWidth	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Width of the character in specified header column
headerColumnWidth	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Width of the specified header column
headerColumns	int	Y	Y	Number of header columns
headerRowHeight	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Height of the specified header line
headerRows	int	Y	Y	Number of header lines
headerTableBorderColor	java.awt Color	Y	Y	Header table border line color
ignoreRepaint	boolean	Y	Y	Whether the paint message of the operating system should be ignored
jumpMode	boolean	Y	Y	Automatic scroll mode
locale	java.util Locale	Y	Y	Locale information
multipleMode	boolean	Y	Y	Multiple selection mode/single selection mode
name	java.lang String	Y	Y	Name
position	com.fujitsu.jbk.gui JFPosition	Y		Cursor position
remoteFont	boolean	Y		Whether the registered font is a remote font
rowAlignmentHorizontal	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Horizontal character display position of a cell in a specified row
rowAlignmentVertical	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Vertical character display position of a cell in a specified row
rowBackground	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Background color of cells in a specified row
rowBorderColor	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Color of border of cells in a specified row
rowBorderType	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Type of border of cells in a specified row
rowBorderWidth	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Width of border of cells in a specified row
rowCount	int	Y	Y	Number of lines
rowEditable	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Whether or not cells in a specified row can be edited
rowFont	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Font of cells in a specified row
rowForeground	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Foreground color of cells in a specified row
rowHeight	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Height of the specified line
rowVisible	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Whether or not cells in a specified row are visible
rows	int	Y	Y	Number of lines that indicate the display size
scrollbarMode	boolean	Y	Y	Display mode of scroll bar
selectedObjects	java.lang Object[]	Y		Selected cell position list
selectedPosition	com.fujitsu.jbk.gui JFPosition	Y		Selected cell position
strictly	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Whether disable the character string which isn't suitable for the format of the specified column
tableBorderColor	java.awt Color	Y	Y	Table border line color
tableBorderHeight	int	Y	Y	Table border line height
tableBorderWidth	int	Y	Y	Table border line width
tableColumns	int	Y		Number of columns including the header
tableRows	int	Y		Number of lines including the header
toolTipText	java.lang String	Y	Y	Tool tip text
viewMode	boolean	Y	Y	Whether the mode is view mode
visible	boolean	Y	Y	Whether visible
wheelScrollingEnabled	boolean	Y	Y	Whether to enable scrollbar operation with mouse wheel

Event information

Name	Listener	Addition/removal	Method	Explanation
adjustment	java.awt.event AdjustmentListener	addAdjustmentListener removeAdjustmentListener	adjustmentValueChanged	Is issued when the value of the adjustable object changes from this scroll bar.
component	java.awt.event ComponentListener	addComponentListener removeComponentListener	componentResized	Is issued when the component status changes.
			componentMoved
			componentShown
			componentHidden
focus	java.awt.event FocusListener	addFocusListener removeFocusListener	focusGained	Is issued when the focus moves.
			focusLost
inputMethod	java.awt.event InputMethodListener	addInputMethodListener removeInputMethodListener	caretPositionChanged	Is issued when the input method status changes.
			inputMethodTextChanged
item	java.awt.event ItemListener	addItemListener removeItemListener	itemStateChanged	Is issued when the cell is selected by mouse or key operation.
key	java.awt.event KeyListener	addKeyListener removeKeyListener	keyTyped	Is issued by key operation.
			keyPressed
			keyReleased
mouse	java.awt.event MouseListener	addMouseListener removeMouseListener	mouseClicked	Is issued by mouse operation.
			mousePressed
			mouseReleased
			mouseEntered
			mouseExited
mouseMotion	java.awt.event MouseMotionListener	addMouseMotionListener removeMouseMotionListener	mouseDragged	Is issued when the mouse moves.
			mouseMoved
mouseWheel	java.awt.event MouseWheelListener	addMouseWheelListener removeMouseWheelListener	mouseWheelMoved	Is issued by mouse wheel operation.
propertyChange	java.beans PropertyChangeListener	addPropertyChangeListener removePropertyChangeListener	propertyChange	Is issued when the property changes.
tableViewAction	com.fujitsu.jbk.gui JFTableViewActionListener	addTableViewActionListener removeTableViewActionListener	inputAreaOpen	Is issued when the JFTableView specific operation is performed.
			inputAreaClose
			cursorMoved
			allSelected
			allDeselected
			rowSelected
			rowDeselected
			columnSelected
			columnDeselected
text	java.awt.event TextListener	addTextListener removeTextListener	textValueChanged	Is issued when the cell character string changes.

Method information

Name	Parameters	Explanation
addColumn		Adds a column at the end.
addRow		Adds a line at the end.
allCellDeselect		Deselects all cells.
allCellSelect		Selects all cells.
calculateView		Calculates the screen size and scroll bar position and redraws.
copy		Copies the selected cell data(=character string) onto the clipboard.
copyColumn	int	Copies the column onto the specified position.
	int
copyRow	int	Copies the line onto the specified position.
	int
deselectCell	int	Deselects the cell.
	int
exchangeColumn	int	Replaces the specified column.
	int
exchangeRow	int	Replaces the specified line.
	int
fullRepaint		Redraws all cells.
hideToolTip		Erases the tool tip.
inputAreaClose	boolean	Does not display the input field.
inputAreaOpen		Displays the input field of the cell at the cursor position.
insertColumn	int	Adds the column to the specified position.
insertRow	int	Adds the line to the specified position.
jump	int	Scrolls so that the cell at the specified position fits the screen.
	int
moveColumn	int	Moves the specified column.
	int
moveRow	int	Moves the specified line.
	int
paste		Pastes from the clipboard.
removeColumn	int	Deletes the specified column.
removeRow	int	Deletes the specified line.
replaceColumn	int	Overwrites the specified column.
	int
replaceRow	int	Overwrites the specified line.
	int
requestFocus		Requests an input focus.
selectCell	int	Selects the cell.
	int
setCellAlignmentHorizontal	int	Set the character display position in the side direction of all cells.
setCellAlignmentVertical	int	Set the character display position in the vertical direction of all cells.
setCellBackground	java.awt Color	Set the background color of all cells.
setCellBorderColor	java.awt Color	Set the border color of all cells.
setCellBorderType	int	Set the border type of all cells.
setCellBorderWidth	int	Set the border width of all cells.
setCellEditable	boolean	Set edit enabled/disabled of all cells.
setCellFont	java.awt Font	Set the font of all cells.
setCellForeground	java.awt Color	Set the foreground color of all cells.
setCellVisible	boolean	Set display/no display of all cells.
setColumnChars	int	Set the width of the character of all columns.
setRowColumnCount	int	Set the number of data line column.
	int
setTableBorder	int	Set the border height and width at the same time.
	int
setTextField	com.fujitsu.jbk.gui JFFieldString	Set the JFFieldString class to use as an input field.
showToolTip	java.lang String	Displays the tool tip.
	java.awt Point
	java.awt Dimension
	long
transferFocus		Moves the focus to the next component.

Customizer

• Component common property

• JBK GUI common property

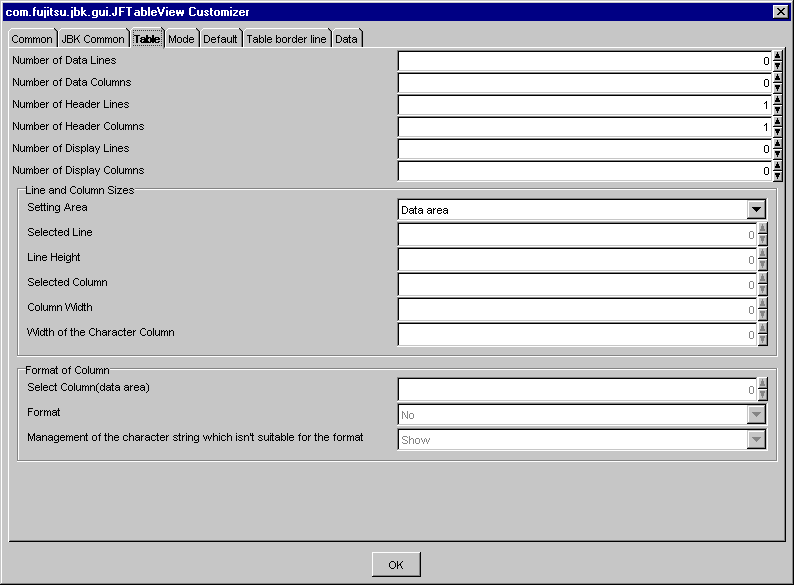

• Table

  Set the entire table information.



  Number of Data Lines

  Set the number of data lines. Specify from 0 to 2147483644 as the number of data lines.

  Number of Data Columns

  Set the number of data columns. Specify from 0 to 2147483644 as the number of data columns.

  Number of Header Lines

  Set the number of header lines. Specify from 0 to 3 as the number of header lines.

  Number of Header Columns

  Set the number of header columns. Specify from 0 to 3 as the number of header columns.

  Number of Display Lines

  Set the number of display lines. Specify from 0 to 2147483647 as the number of display lines.

  Number of Display Columns

  Set the number of display columns. Specify from 0 to 2147483647 as the number of display columns.

  Setting Area

  Select the setting area for setting the line and column sizes from Data area/Header area.

  Selected Line

  Select the index of the line for which the line and column sizes are set. For the index, set a series of positive integers starting at 0. The maximum value of the index is the number of data lines minus 1.

  Line Height

  Select the height of the line for which the line and column sizes are set with a pixel value. Specify 0 to 2147483647 as the line height.

  Note

  A system sometimes becomes unstable when very big value is established in the line height.

  Selected Column

  Select the index of the column for which the line and column sizes are set. For the index, set a series of positive integers starting at 0. The maximum value of the index is the number of data columns minus 1.

  Column Width

  Set the width of the column for which the line and column sizes are set with a pixel value. Specify from 0 to 2147483647 as the width of the column.

  Note

  A system sometimes becomes unstable when very big value is established in the width of the column.

  Width of the Character Column

  Set the width of column by the number of the digit of the character.

  In case of theses methods may be called before time this table is displayed, it is error.

  If you used the screen designer of the integrated development environment, theses methods specified by 'Width of the Character Column' may be called before time this table is displayed.

  Because such a situation leads to an error, use the source editor of the integrated development environment to change the order of calling methods.

  Select Column(data area)

  Select the index of data area column to do a setup of format. For the index, set a series of positive integers starting at 0. The maximum value of the index is the number of data columns minus 1.

  Format

  Select the format of a column to define format from among No, yyyy/M/d, d-MMMM-yy, H:mm:ss, #0, #0.00, #,##0, $#,##, or #0%. "No" is select when a format isn't established in the column.

  Management of the character string which isn't suitable for the format

  Select the management of the character string which isn't suitable for the format from Invalid/Show as it is.

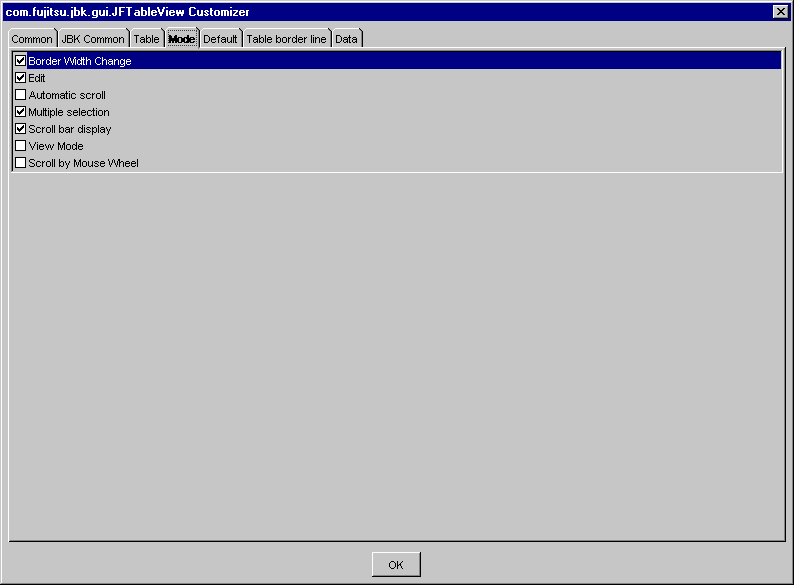

• Mode

  Set the table mode.



  Border Width Change

  Set whether to enable the border width change. If this item is checked, the border width can be changed.

  When the mouse pointer is positioned on the border boundary while changing is enabled, the mouse pointer changes its shape. Dragging in that status can change the border width.

  Edit

  Set whether editing is enabled. If this item is checked, editing is enabled.

  Automatic scroll

  Set whether to perform automatic scroll. If this item is checked, automatic scroll is performed at the addition/insertion of lines and columns so that the target line fits on the screen.

  Multiple Selection

  Set whether to enable multiple selection. If this item is checked, multiple selection is enabled.

  Scroll bar display

  Set display/no display for the scroll bar. If this item is checked, the scroll bar is displayed so that it matches the table size. If this item is unchecked, the scroll bar is displayed so that it matches the entire component size.

  View Mode

  Set whether to set the view mode. If this item is checked, the mode becomes the view mode and editing in the table is disabled.

  Scroll by Mouse Wheel

  Set whether to enable scrolling with mouse wheel. If checked, scrolling with mouse wheel operation is enabled.

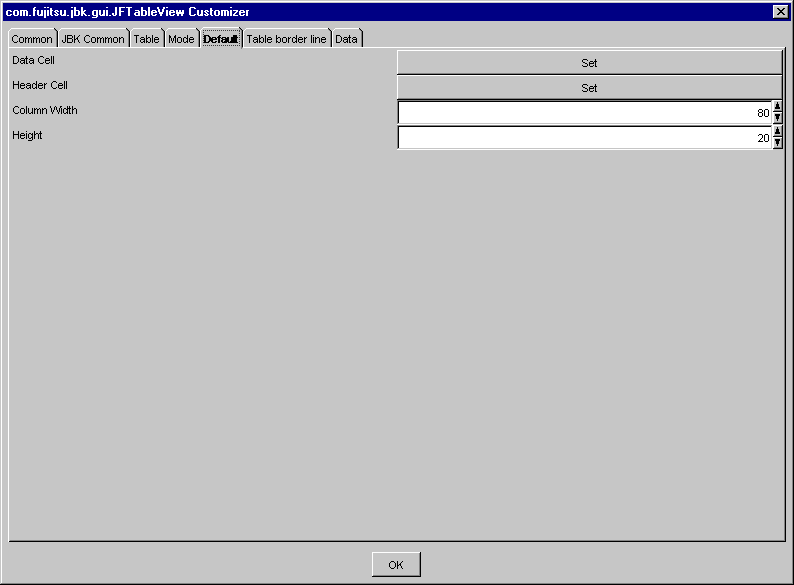

• Default

  Set the default cell attributes.



  Data Cell

  Set the default data cell.

  When the button is pressed, [Cell] setting dialog is displayed.

  The properties of the data cell can be set up.

  Header Cell

  Set the default header cell.

  When the button is pressed, [Cell] setting dialog is displayed.

  The properties of the header cell can be set up.

  Column Width

  Set the default column width with a pixel value. This is used as the initial value of added/inserted column. Specify from 0 to 2147483647 as the column width.

  Height

  Set the default line height with a pixel value. This is used as the initial value of added/inserted line. Specify 0 to 2147483647 as the height.

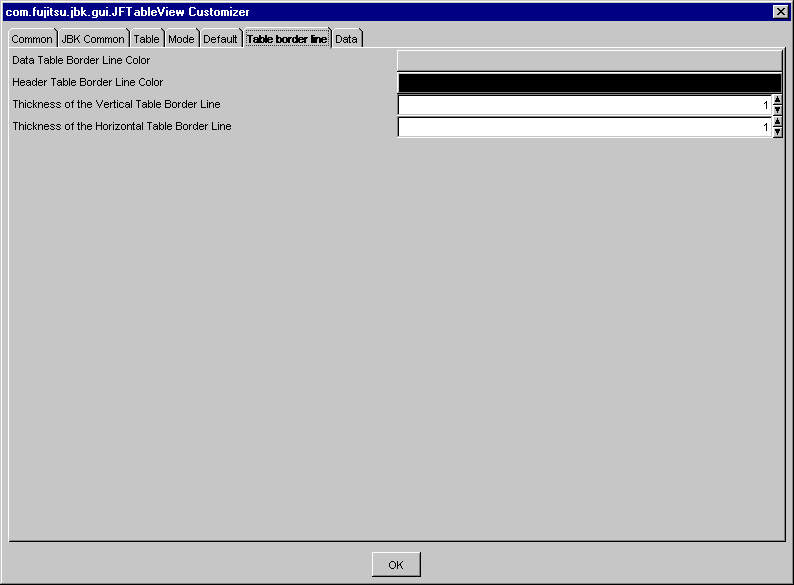

• Table border line

  Set attributes such as the table border line color.



  Data Table Border Line Color

  Set the table border line color of the data area. When the button is pressed, Color setting dialog is displayed.

  Header Table Border Line Color

  Set the table border line color of the header area. When the button is pressed, Color setting dialog is displayed.

  Thickness of the Vertical Table Border Line

  Set the thickness of the vertical table border line with a pixel value. Specify from 0 to 5 as the border width.

  Thickness of the Horizontal Table Border Line

  Set the thickness of the horizontal table border line with a pixel value. Specify from 0 to 5 as the border width.

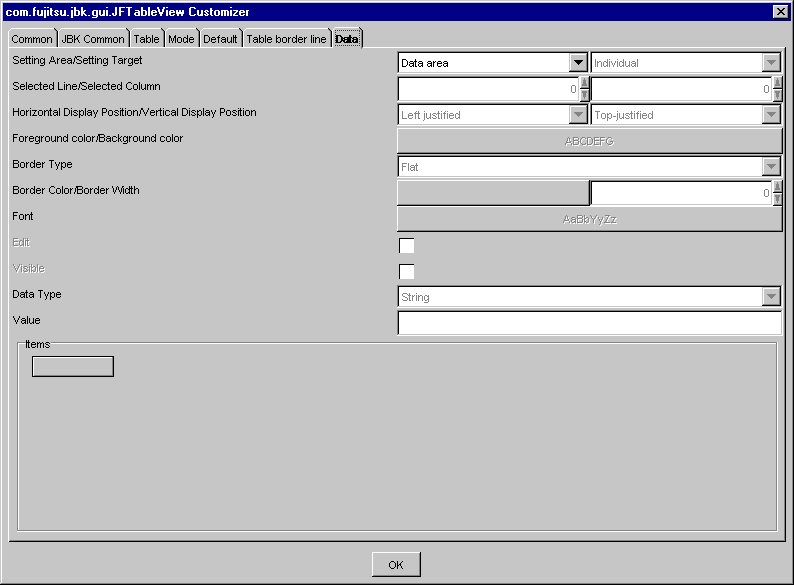

• Data

  Set the cell value.



  In the initial status, data cannot be set because the table sizes (number of lines and number of columns) are not defined. First, set the number of lines and number of columns in the 'table' property, then set the value in each cell. To edit the value, specify the index of the edit cell.

  Setting Area

  Select the value setting area from Data area/Header area.

  Setting Target

  Select the value setting target (unit) from among Individual, One line, or One column.

  Selected Line

  Set the index of the value setting line. For the index, set a series of positive integers starting at 0. The maximum value of the index is the number of data lines minus 1.

  Selected Column

  Set the index of the value setting column. For the index, set a series of positive integers starting at 0. The maximum value of the index is the number of data columns minus 1.

  Horizontal Display Position

  Select the horizontal display position of the strings from among Left justified, Centered or Right justified.

  Vertical Display Position

  Select the vertical display position of the strings from among Top-justified, Centered or Bottom-justified.

  Foreground Color/Background Color

  Set the foreground color and background color. When the button is pressed, [Foreground Color/Background Color] setting dialog is displayed.

  Border Type

  Set the border type from among Flat, Convex, or Concave.

  Border Color

  Set the border color. When the button is pressed, Color setting dialog is displayed.

  Border Width

  Set the border width with a pixel value. Specify 0 to 5 as the border width.

  Font

  Set the font. When the button is pressed, [Font] setting dialog is displayed.

  Edit

  Set whether editing is enabled. If this item is checked, editing is enabled.

  Visible

  Set display/no display for the value. If this item is checked, the value is displayed.

  Data Type

  Select the data type from among String, Numeric or Boolean. The input field of 'Value' depends on 'Data Type'.

  Value

  Set the value of the selected node column. The set value is set as the following object class.

  • String type: java.lang.String

  • Numeric type: java.lang.Long

  • Boolean type: java.lang.Boolean

  Items

  Displays the data specified for the items.
