Interstage Studio J Business Kit GUI Library User's Guide

3.15 Group box Bean

The group box Bean has the following information and Customizer functions.

• Property information

• Event information

• Method information

See

"Package Guide"- JFGroupbox

Property information

Name	Type	Reference	Setting	Explanation
alignment	int	Y	Y	Display position of label character string
background	java.awt Color	Y	Y	Background color
borderColor	java.awt Color	Y	Y	Border line color
borderType	int	Y	Y	Border line type
borderWidth	int	Y	Y	Border line width
componentOrientation	java.awt ComponentOrientation	Y	Y	The orientation of the string. It depends on the language
controlEnabled	boolean	Y	Y	Whether to operation of the possible/impossibility of the added component
enableMenu	boolean	Y	Y	Whether to display the popup menu
enableToolTip	boolean	Y	Y	Whether to display the tool tip
enabled	boolean	Y	Y	Whether enabled
focusTraversalKeysEnabled	boolean	Y	Y	Whether the focus traversal key is available
focusable	boolean	Y	Y	Whether the focus can be set
font	java.awt Font	Y	Y	Font
foreground	java.awt Color	Y	Y	Foreground color
ignoreRepaint	boolean	Y	Y	Whether the paint message of the operating system should be ignored
label	java.lang String	Y	Y	Label character string
layout	java.awt LayoutManager	Y	Y	Layout manager
locale	java.util Locale	Y	Y	Locale information
name	java.lang String	Y	Y	Name
remoteFont	boolean	Y		Whether the registered font is a remote font
toolTipText	java.lang String	Y	Y	Tool tip text
visible	boolean	Y	Y	Whether visible

Event information

Name	Listener	Addition/removal	Method	Explanation
component	java.awt.event ComponentListener	addComponentListener removeComponentListener	componentResized	Is issued when the component status changes.
			componentMoved
			componentShown
			componentHidden
container	java.awt.event ContainerListener	addContainerListener removeContainerListener	componentAdded	Is issued when the pasted status changes.
			componentRemoved
focus	java.awt.event FocusListener	addFocusListener removeFocusListener	focusGained	Is issued when the focus moves.
			focusLost
inputMethod	java.awt.event InputMethodListener	addInputMethodListener removeInputMethodListener	caretPositionChanged	Is issued when the input method status changes.
			inputMethodTextChanged
key	java.awt.event KeyListener	addKeyListener removeKeyListener	keyTyped	Is issued by key operation.
			keyPressed
			keyReleased
mouse	java.awt.event MouseListener	addMouseListener removeMouseListener	mouseClicked	Is issued by mouse operation.
			mousePressed
			mouseReleased
			mouseEntered
			mouseExited
mouseMotion	java.awt.event MouseMotionListener	addMouseMotionListener removeMouseMotionListener	mouseDragged	Is issued when the mouse moves.
			mouseMoved
mouseWheel	java.awt.event MouseWheelListener	addMouseWheelListener removeMouseWheelListener	mouseWheelMoved	Is issued by mouse wheel operation.
propertyChange	java.beans PropertyChangeListener	addPropertyChangeListener removePropertyChangeListener	propertyChange	Is issued when the property changes.

Method information

Name	Parameters	Explanation
add	java.awt Component	Adds the component.
add	java.awt Component	Adds the component.
	int
add	java.awt Component	Adds the component.
	java.lang Object
add	java.awt Component	Adds the component.
	java.lang Object
	int
hideToolTip		Erases the tool tip.
remove	int	Deletes the component.
remove	java.awt Component	Deletes the component.
removeAll		Deletes all components.
requestFocus		Requests an input focus.
showToolTip	java.lang String	Displays the tool tip.
	java.awt Point
	java.awt Dimension
	long
transferFocus		Moves the focus to the next component.

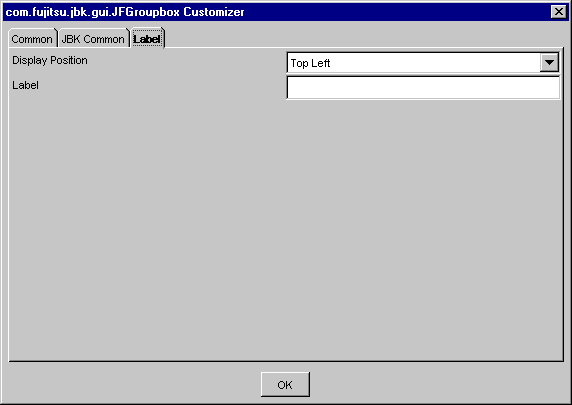

Customizer

• Component common property

• JBK GUI common property

• Label

  Sets the group box label.



  Display Position

  Select the label display position from among Top Left, Top Center, Top Right, Bottom Left, Bottom Center, or Bottom Right..

  Label

  Set the label to be displayed in the group box.
