Interstage Studio J Business Kit GUI Library User's Guide

3.10 Embedded date/time field Bean

The embedded date/time field Bean has the following information and Customizer functions.

• Property information

• Event information

• Method information

See

"Package Guide"- JFFieldFilledDate

Property information

Name	Type	Reference	Setting	Explanation
alignmentHorizontal	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Display position of the field horizontal character string
alignmentVertical	int	Y	Y	Display position of vertical character string
autoEscape	boolean	Y	Y	Automatic exit function valid/invalid
autoIME	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Automatic change of input mode
background	java.awt Color	Y	Y	Background color
blink	boolean	Y	Y	Whether to blink the character string
blinkInterval	long	Y	Y	Interval of blinking the character string and caret
borderColor	java.awt Color	Y	Y	Border line color
borderType	int	Y	Y	Border line type
borderWidth	int	Y	Y	Border line width
caretPosition	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Caret position in the field
caretStyle	(Array) int	(Array) Y	(Array) Y	Caret style for the input field
caretVisible	boolean	Y	Y	Display/non-display of the input caret
columnBaseChar	char	Y	Y	The base character to be used on calculating the width of field
combinedText	java.lang String	Y	Y	The whole string including the delimiters
componentOrientation	java.awt ComponentOrientation	Y	Y	The orientation of the string. It depends on the language
echoChar	char	Y	Y	Echo character
editable	boolean	Y	Y	Whether editing is enabled
enableMenu	boolean	Y	Y	Whether to display the popup menu
enableToolTip	boolean	Y	Y	Whether to display the tool tip
enabled	boolean	Y	Y	Whether enabled
focusField	int	Y	Y	Field index that has input focus
focusTraversalKeysEnabled	boolean	Y	Y	Whether the focus traversal key is available
focusable	boolean	Y	Y	Whether the focus can be set
font	java.awt Font	Y	Y	Font
foreground	java.awt Color	Y	Y	Foreground color
fullField	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Whether the item is all-digit input item
ignoreRepaint	boolean	Y	Y	Whether the paint message of the operating system should be ignored
inactiveBackground	java.awt Color	Y	Y	Background color when inactive
inactiveForeground	java.awt Color	Y	Y	Foreground color when inactive
indispensableField	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Whether the item is a required input item
inputAssist	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Input assist method
inputMode	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Character set and character size
inputStyle	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Character string conversion window type
insertMode	int	Y	Y	Input mode
locale	java.util Locale	Y	Y	Locale information
name	java.lang String	Y	Y	Name
numericalField	(Array) boolean	(Array) Y		Whether the field is a numeric field
pattern	java.lang String	Y	Y	Pattern
remoteFont	boolean	Y		Whether the registered font is a remote font
reverse	boolean	Y	Y	Whether to display in reverse video or not
selectedInFocus	boolean	Y	Y	Whether to select all the character string when focused or not
selectionEnd	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Field selection end position
selectionStart	com.fujitsu.jbk.gui JFIndexObjectProperty		Y	Field selection start position
showSeparator	boolean	Y	Y	Whether the separator is shown or not
strikeColor	java.awt Color	Y	Y	Color of strike-through line
strikeType	int	Y	Y	Type of strike-through line
text	(Array) java.lang String	(Array) Y	(Array) Y	Field character string
textEditKey	com.fujitsu.jbk.gui JFTextEditKey	Y	Y	Function key manager
toolTipText	java.lang String	Y	Y	Tool tip text
underlineColor	java.awt Color	Y	Y	Underline color
underlineType	int	Y	Y	Underline type
value	(Array) int	(Array) Y	(Array) Y	Field value
visible	boolean	Y	Y	Whether visible

Event information

Name	Listener	Addition/removal	Method	Explanation
action	java.awt.event ActionListener	addActionListener removeActionListener	actionPerformed	Is issued when the Enter key is pressed or when the component is out of focus automatically.
autoEscape	com.fujitsu.jbk.gui JFAutoEscapeListener	addAutoEscapeListener removeAutoEscapeListener	autoEscape	Is issued immediately prior to automatic exit.
component	java.awt.event ComponentListener	addComponentListener removeComponentListener	componentResized	Is issued when the component status changes.
			componentMoved
			componentShown
			componentHidden
fieldChanged	com.fujitsu.jbk.gui JFFieldFilledChangedListener	addJFFieldFilledChangedListener removeJFFieldFilledChangedListener	fieldChanged	Is issued when the character string changes.
focus	java.awt.event FocusListener	addFocusListener removeFocusListener	focusGained	Is issued when the focus moves.
			focusLost
inputError	com.fujitsu.jbk.gui JFInputErrorListener	addInputErrorListener removeInputErrorListener	inputError	Is issued when a character string input error occurs.
inputMethod	java.awt.event InputMethodListener	addInputMethodListener removeInputMethodListener	caretPositionChanged	Is issued when the input method status changes.
			inputMethodTextChanged
key	java.awt.event KeyListener	addKeyListener removeKeyListener	keyTyped	Is issued by key operation.
			keyPressed
			keyReleased
mouse	java.awt.event MouseListener	addMouseListener removeMouseListener	mouseClicked	Is issued by mouse operation.
			mousePressed
			mouseReleased
			mouseEntered
			mouseExited
mouseMotion	java.awt.event MouseMotionListener	addMouseMotionListener removeMouseMotionListener	mouseDragged	Is issued when the mouse moves.
			mouseMoved
mouseWheel	java.awt.event MouseWheelListener	addMouseWheelListener removeMouseWheelListener	mouseWheelMoved	Is issued by mouse wheel operation.
propertyChange	java.beans PropertyChangeListener	addPropertyChangeListener removePropertyChangeListener	propertyChange	Is issued when the property changes.
text	java.awt.event TextListener	addTextListener removeTextListener	textValueChanged	Is issued when a character is input

Method information

Name	Parameters	Explanation
checkFullField		Checks all-digit input in all fields.
checkFullField	int	Checks all-digit input in the specified field.
checkIndispensableField		Checks the required input in all fields.
checkIndispensableField	int	Checks the required input in the specified field.
copy	int	Copies the selected area of the specified field onto the clipboard.
cut	int	Copies the selected area of the specified field onto the clipboard and deletes it.
getDay		Value of the day field.
getDayIndex		Index of the day field.
getGregorianYear		Index of the year field.
getHour		Value of the hour field.
getHourIndex		Index of the hour field.
getMaximumValue	int	Maximum value of the specified field.
getMinute		Value of the minute field.
getMinuteIndex		Index of the minute field.
getMonth		Value of the month field.
getMonthIndex		Index of the month field.
getSecond		Value of the second field.
getSecondIndex		Index of the second field.
getYearIndex		Index of the year field.
hideToolTip		Erases the tool tip.
insertText	java.lang String	Inserts the character string into the selected area.
isLeapYear	int	Whether the year is leap year.
paste	int	Replaces the character string in the specified field selection area with the character string in the clipboard.
removeNotify		Notifies a component that it has been removed from the container. If a peer exists, it is destroyed.
requestFocus		Requests an input focus.
select	int	Selects the specified field.
	int
	int
showToolTip	java.lang String	Displays the tool tip.
	java.awt Point
	java.awt Dimension
	long
transferFocus		Moves the focus to the next component.

Customizer

• Component common property

• JBK GUI common property

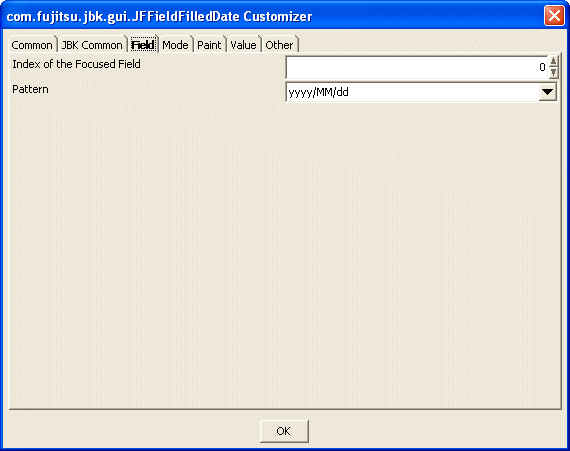

• Field

  The field with focus and the pattern of the field are set.



  ndex of the Focused Field

  Set the index of the field that has the input focus. For the index, set a series of positive integers starting at 0. The maximum value of the index is the number of fields minus 1.

  Pattern

  Set the format pattern from among yyyy/MM/dd, yy/MM/dd, yyyy/MM/dd HH:mm:ss, yy/MM/dd HH:mm:ss, MM/dd, or MM/dd/yy. Both the delimiters and fields can be specified at the same time.

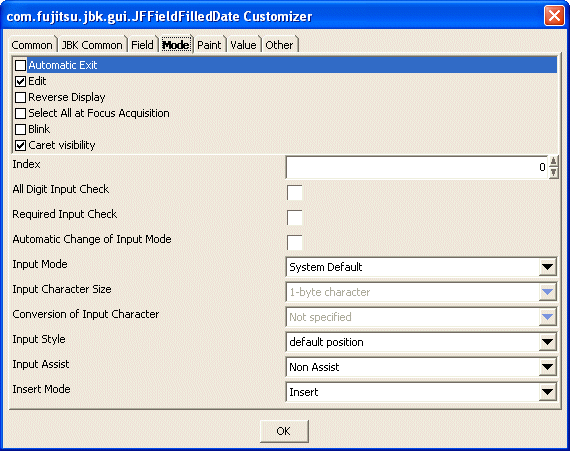

• Mode

  Set the operation mode in the embedded date/time field.



  Automatic Exit

  Set automatic exit or no automatic exit. If this item is checked, automatic exit is performed. This item is valid for the entire embedded date/time field.

  Edit

  Set whether to enable editing. If this item is checked, editing is enabled. This item is valid for the entire embedded date/time field.

  Reverse Display

  Set the reverse video mode or not. If this is checked, the display is in reverse mode. This item is valid for the entire embedded date/time field.

  Select All at Focus Acquisition

  Set to select all the character string or not when acquiring input focus. If this item is checked, all are selected. This item is valid for the entire embedded date/time field.

  Blink

  Set to blink character string or not. If checked, the character string blinks. The interval time can be set in the 'Blink Interval' of the 'Paint' property. This item is valid for the entire embedded date/time field.

  Caret visibility

  Set the display status of the input caret. If checked, the input caret is displayed.

  Index

  Set the index of the field delimited by a delimiter character string. For the index, set a series of positive integers starting at 0. The maximum value of the index is the number of fields minus 1.

  All Digit Input Check

  Set whether the field specified with 'Index' is checked if all digits are input or not. If checked, the field is checked if all digits are input.

  Required Input Check

  Set whether the field specified with 'Index' is checked if the required field is input or not. If checked, the field is checked if the required field is input.

  Automatic Change of Input Mode

  Set whether to change the input mode automatically when the input focus moves to the field set with 'Index'. If checked, the input mode will be changed.

  Input Mode

  Select the input mode of the field set by 'Index' from among Alphanumeric, Hiragana, Katakana, Direct input, or System Default. This is available only when 'Automatic Change of Input Mode' is checked.

  Input Character Size

  Select the input character size of the field set by 'Index' from 1-byte character or 2-byte character. This is available only when 'Automatic Change of Input Mode' is checked.

  Conversion of Input Character

  Select the conversion mode for the input character string from among Conversion, None or Not specified. This is available only when 'Automatic Change of Input Mode' is checked.

  Input Style

  Select the display position of the string conversion window of the field set with 'Index' from default position/component. To use this function, 'Automatic Change of Input Mode' must be checked.

  Input Assist

  Set whether to assist input of characters in the field set with 'Index' using a Japanese input system. By setting the conversion method, determination operations during input can be omitted.

  Insert Mode

  Set the insert mode of strings. Select the insert mode from Insert/Overwrite.

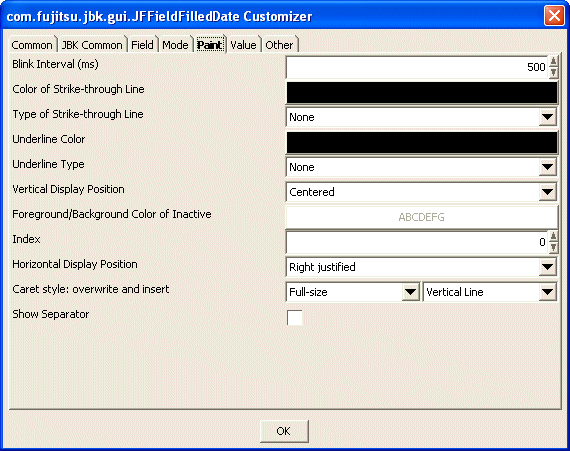

• Paint

  Set the information concerning the embedded date/time field display.



  Blink Interval (ms)

  Set the blink interval of the display character string in milliseconds (ms). This item is valid for the entire embedded date/time field. Specify from 1 to 9223372036854775807 as the blink interval.

  Color of Strike-through Line

  Set the color of the strike-through line. When the button is pressed, Color setting dialog is displayed. This item is valid for the entire embedded date/time field.

  Type of Strike-through Line

  Select the type of the strike-through lines from among None, -(single line) or =(double lines). This item is valid for the entire embedded date/time field.

  Underline Color

  Set the underline color. When the button is pressed, Color setting dialog is displayed. This item is valid for the entire embedded date/time field.

  Underline Type

  Select the underline type from among None, Convex, Concave, or Flat. This item is valid for the entire embedded date/time field.

  Vertical Display Position

  Select the vertical display position of the strings from among Top-justified, Centered or Bottom-justified. This item is valid for the entire embedded date/time field.

  Foreground/Background Color of Inactive

  Set the foreground/background color of inactive. When the button is pressed, [Foreground Color/Background Color] setting dialog is displayed. This item is valid for the entire embedded date/time field.

  Index

  Set the index of the field delimited by a delimiter character string. For the index, set a series of positive integers starting at 0. The maximum value of the index is the number of fields minus 1.

  Horizontal Display Position

  Select the horizontal display position of the strings in the field set by 'Index' from among Left justified, Centered or Right justified.

  Caret style: overwrite and insert

  Select the caret style from among Vertical Line, Full-size, Half-size, Quarter-size, or Underline. A different status can be set for each input mode: overwrite and insert.

  Show Separator

  Set whether to show separator. If this item is checked, separator is shown.

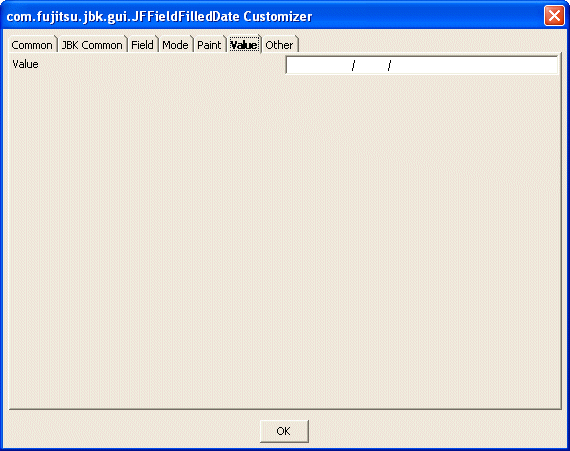

• Value

  Set the value of the embedded date/time field.



  Value

  Set the value in the field.

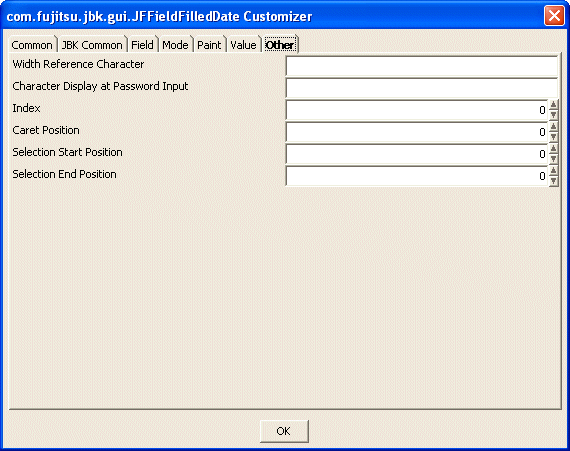

• Other

  Set other information.



  Width Reference Character

  Set the character which is used to decide the size of the component. This item is valid for the entire embedded date/time field.

  Character Display at Password Input

  Set the character to display for the password input and displaying. This item is valid for the entire embedded date/time field.

  Index

  Set the index of the field delimited by a delimiter character string. For the index, set a series of positive integers starting at 0. The maximum value of the index is the number of fields minus 1.

  Caret Position

  Set the caret position of the field set by 'Index'. Specify from 0 to the number of 'y', 'M', 'd', 'H', 'm' and 's' in the format as the caret position.

  Selection Start Position

  Set the selection start position of the field specified by 'Index'. Specify from 0 to the number of 'y', 'M', 'd', 'H', 'm' and 's' in the format as the selection start position.

  Selection End Position

  Set the selection end position of the field specified by 'Index'. Specify from 0 to the number of 'y', 'M', 'd', 'H', 'm' and 's' in the format as the selection end position.
