This section explains how to install Interstage Studio Client Runtime when the selected installation type is "Custom installation".
1. Stop all applications
Confirm that all applications are stopped.
2. Insert product CD-ROM into the drive
Insert product CD-ROM into the CD-ROM drive of your computer.
The installer is automatically activated, and it opens the following window.
Click the [Installation] button to start installation.
The "User Account Control" dialog box may be displayed, depending on the operating system that is being used. When the dialog box is displayed, click [Continue] and continue with the installation.
Point
If autorun on the CD-ROM drive is not enabled, execute the following command:
<CD-ROM drive name>:\autorun.exe
Information
Explanation of buttons
|
Button |
Outline |
|---|---|
|
Readme |
Displays the Interstage Studio Client Runtime software release guide. |
|
Installation Guide |
Displays this manual. |
|
Installation |
Starts Interstage Studio Client Runtime installation. |
|
Exit |
Ends Interstage Studio Client Runtime installation. |
3. Select [Custom]

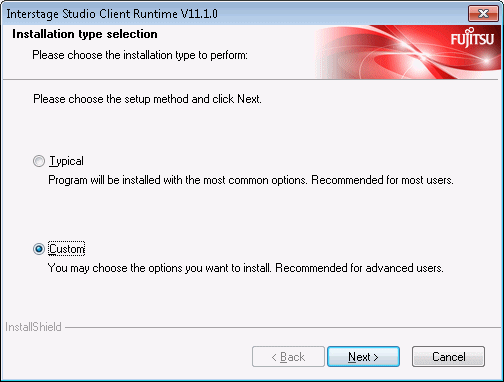

In the [Installation type selection] window, select [Custom] as the installation type, and click the [Next] button.
To cancel installation, click the [Cancel] button.
4. Select the installation folder

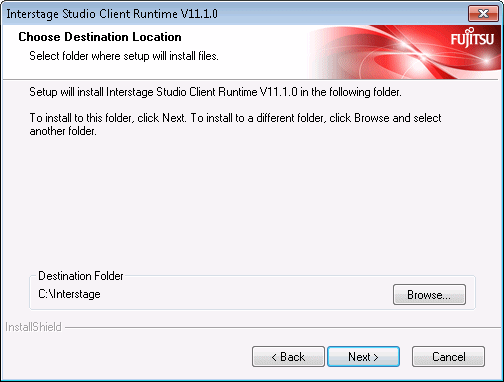

The [Choose Destination Location] window is displayed so that you can select the Interstage Studio Client Runtime installation folder.
The Interstage Studio Client Runtime installation folder is displayed as [Destination Folder].
To install Interstage Studio Client Runtime in the displayed folder
Click the [Next] button.
To change the installation folder
Click the [Browse] button to open the [Choose Folder] dialog box.
In the [Choose Folder] dialog box, select the installation folder, and click the [OK] button.
Confirm that the new installation folder is displayed as [Destination Folder] in the [Choose Destination Location] window, and click the [Next] button.
Note
Notes on the installation folder name
If the folder specified as the installation destination for this product is the same as that of another product, check the documentation of each product before installation to ensure that subfolders and files do not coincide. Refer to "Folder Structure and Files" in the "Interstage Studio Client Runtime Software Release Guide" to check the folder configuration of this product.
The following characters cannot be used in the installation folder name:
":", ";", "/", "*", "?", "<", ">", "(", ")", "|", "#", "%", "^", "!" and """.
The specifiable length of the installation destination folder name is up to 200 characters.
If the folder that has been set as the installation folder is changed to a different folder, it might cause folders that have already been created to remain. If necessary, delete these folders.
5. Select the functions to be installed

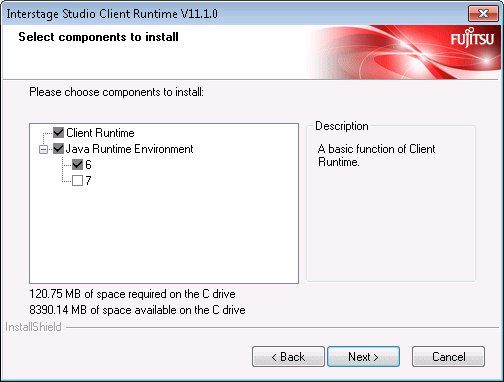

In the [Select components to install] window, select (check) the functions (components) to be installed.
Checked: Each selected component will be installed.
Unchecked: A component that is not selected will not be installed.
A shaded component indicates one that is required by a selected component. When the component that requires a shaded component is unchecked, the shading is removed from the shaded component so that it can also be unchecked.
The table below lists components that can be selected in custom installation.
|
Component |
Outline |
Initial state |
|---|---|---|
|
Java Runtime Environment |
Component required for using Interstage Studio Client Runtime Select the version (6 or 7) of Java Runtime Environment to be installed. |
[6] is selected. |
Select the components to be installed, and click the [Next] button.
6. Specify the JRE 6 installation destination

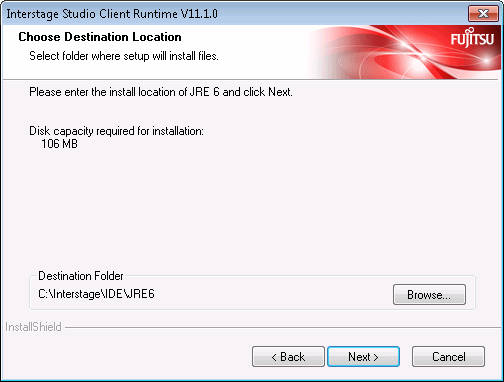

Use this window to specify the JRE 6 installation destination.
The JRE 6 installation destination folder is displayed at [Destination Folder].
To install to the displayed folder:
Click Next].
To change the installation destination folder:
Click [Browse] to display the [Choose Folder] window.
In the [Choose Folder] window, select the installation destination folder, and then click [OK].
Check that the changed contents are displayed in [Destination Folder] in the [Choose Destination Location] window, and then click [Next].
7. Specify the JRE 7 installation destination
Use this window to specify the JRE 7 installation destination. This window is displayed only if "Java Runtime Environment" "7" is selected as a function to be installed.
The JRE 7 installation destination folder is displayed at [Destination Folder].
To install to the displayed folder:
Click [Next].
To change the installation destination folder:
Click [Browse] to display the [Choose Folder] window.
In the [Choose Folder] window, select the installation destination folder, and then click [OK].
Check that the changed contents are displayed in [Destination Folder] in the [Choose Destination Location] window, and then click [Next].
8. Select whether or not the Java environment information of this product is to be registered in the system

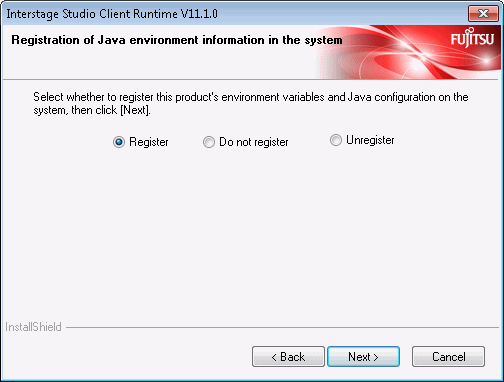

Use this window to select whether or not the environment information of the Java installed by this product is to be registered in the system.
Note that [Unregister] is displayed only if the Java environment information of this product is already registered in the system.
If registering the Java environment information of this product in the system:
Select [Register], and then click [Next].
If not registering the Java environment information of this product in the system:
Select [Do not Register], and then click [Next].
If cancelling the Java environment information of this product that is already registered in the system:
Select [Unregister], and then click [Next].
Note
If [Register] is selected, the processing below is performed. The following points must be noted if JDK or JRE have already been installed by other products.
Register in the system the information of the JRE and JBK plug-ins installed by this product.
Set the system environment variables PATH, CLASSPATH, and JAVA_HOME.
Refer to "Checking the environment" for the path to add to the PATH and CLASSPATH environment variables and ensure that the variable lengths do not exceed the permitted length.
Click [Next].
9. Verify the installation configuration

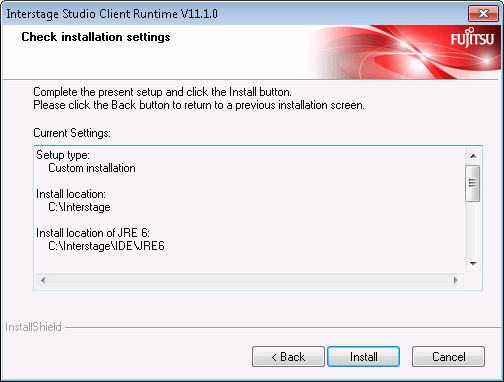

In the [Check installation settings] window, verify the installation configuration.
When no problem is found
Click the [Install] button to start installation.
To change the installation configuration
Click the [Back] button, and change the configuration.
10. Installation begins
Installation starts. The [Setup Status] window displays the progress of installation.
Note
Cancellation
While the [Setup Status] window is displayed, do not click [Cancel] or press the Alt and C keys at the same time. Otherwise, such cancellation causes the installation process to hang. In this event, refer to "Action to be taken in the event that the installation process hangs" and take the necessary action.
11. Installation is completed
When Interstage Studio Client Runtime installation is completed, the following window is displayed.
Click the [Finish] button. This ends Interstage Studio Client Runtime installation.
After clicking the [Finish] button, confirm that the installer icon disappears from the taskbar before beginning to use your computer.
Note
A dialog box shows you to restart the computer
If a file copy error occurs during installation, a dialog box will open to show about restarting the computer. In such cases, click the [Finish] button, and restart the computer.
If a file copy error occurs during installation, installation processing is completed when the computer is restarted.
Besides, when fast startup is enabled due to the use of Windows 8, please make sure the system is restarted by selecting [Restart] from the [Power] menu of [Settings] charm.
