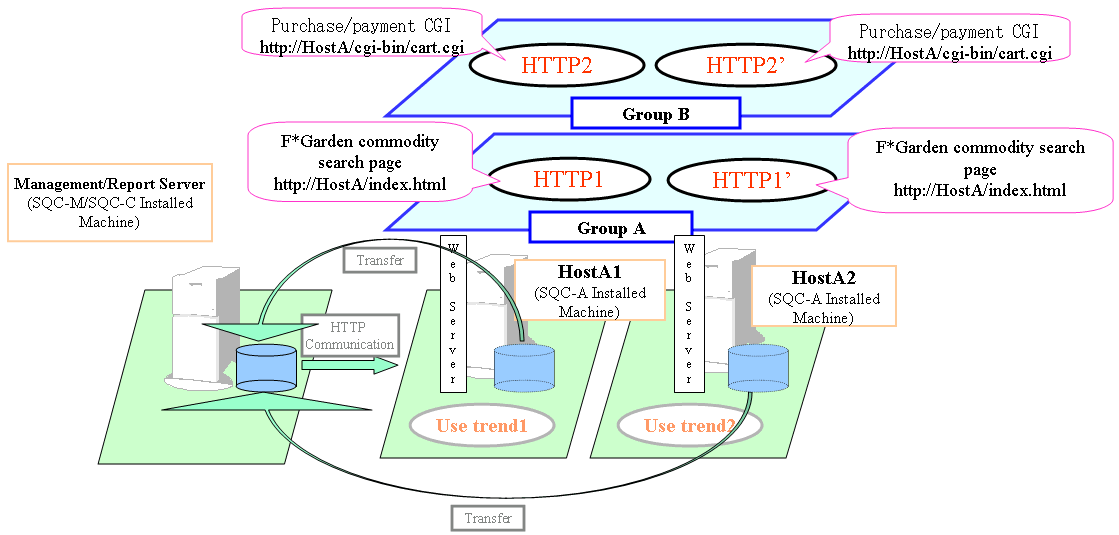

The following analysis target servers must be added here.
Use trend target server
Use trend 1 of Managed Server HostA1
Use trend 1' of Managed Server HostA2
Select the option button on the right side of the name of the Managed Server for which services are to be added, and click the [Add] button below the service field. The [Use Trend Service Information] window appears. Add all services.
How to register each analysis target server is explained as follows.
[Web Site Management] window->
[Environment Settings] window->
[Managed Server Settings] window->

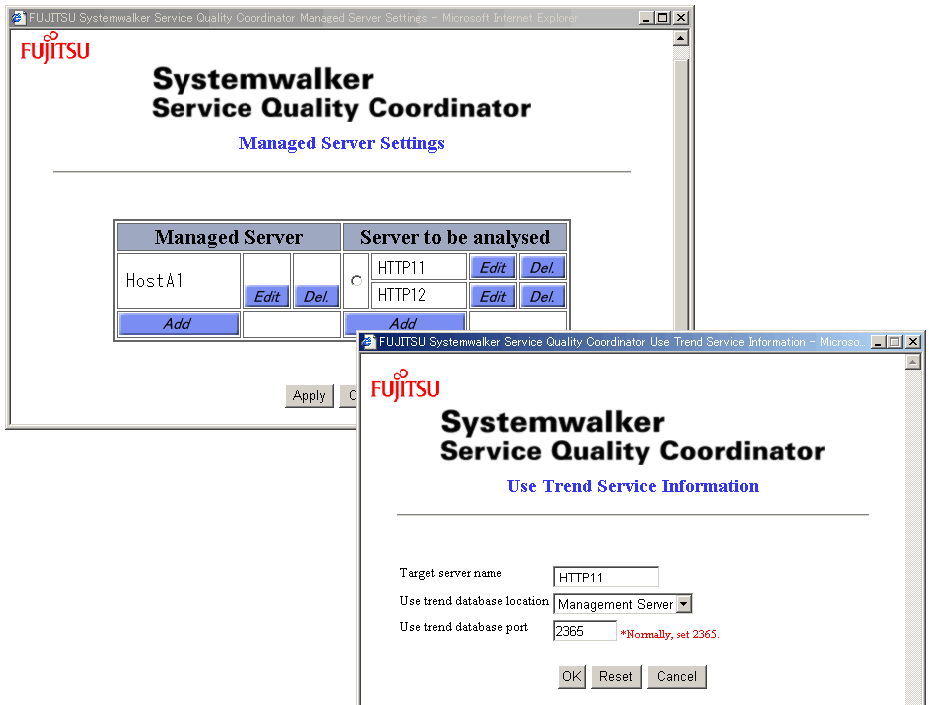

Select the option button on the right side of the name of the Managed Server for which analysis target servers are to be added, and click the [Add] button below the analysis target server field. The following window displayed.

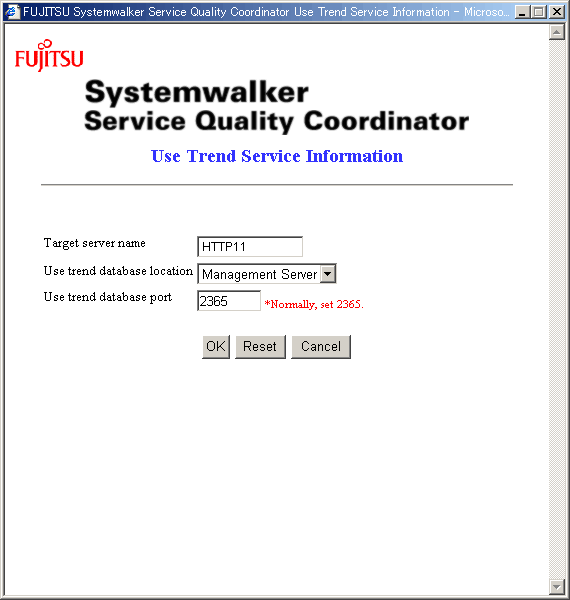

In the [Use Trend Service Information] window, set the Use Trend Service Information for the Managed Server.
Note
With the Managed Server selected on the [Managed Server Setting] window, if [Systemwalker Service Quality Coordinator Agent] check box is OFF when setting [Managed Server Information] window, analysis target server cannot be set.
The following explains the settings for an example of adding HostA1 use trend services.
Setting item | Examples of settings | Contents of settings |
|---|---|---|
Target server name | HostA1 | Specify the name of the server to be analyzed. The specified name must be unique among all use trend services regardless of the Managed Servers that add service. Point The specified name must match the character string specified for "Name" in the use trend database environment definition file that is used when the Trend Viewer is defined. |
Use trend database location | Management server | Specify whether the use trend database for the use trend service is to be managed on the Managed Server or management server. |
Use trend database port | 2365 | The use trend database port is usually 2365. Change this setting if this has been changed to any other port number. Otherwise, there is no need to change the default value (2365). Note [Windows/Linux] The use trend database port is set up when SQC-A is installed. [Solaris] The use trend database port is not set up when SQC-A is installed. See Refer to "11.1.1.2 Start operation" for details on how to set up the use trend database port. |
Similarly, add use trend services also for HostA2. Repeat the procedure explained in this section.
See
See "14.1.2.2 Usage service information window" for details.
