The following types of information need to be registered for registration of a Managed Server
Information on the Managed Server
Information on the Analysis Target Server
This section explains how to register information on the manager server.

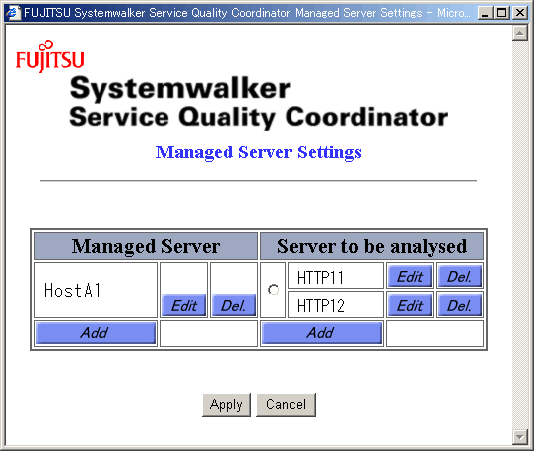

Click the [Managed Server] button on the Environment Settings page, and set information on the Managed Server.

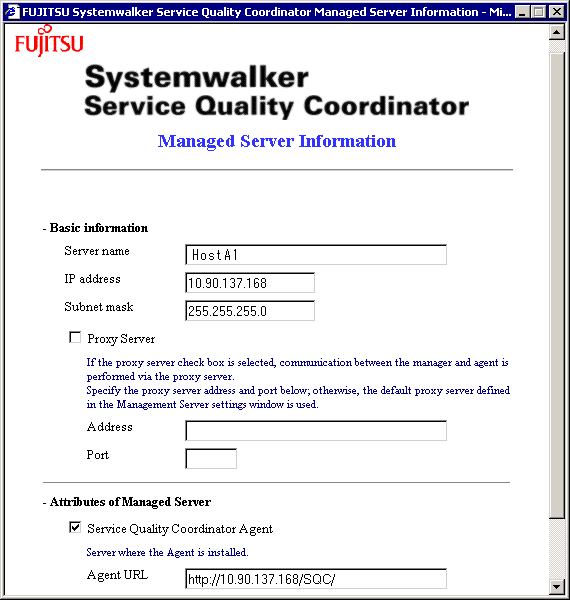

Click the [Add] button below the Managed Server field. The [Managed Server Information] window appears. Add information by repeating this operation, as many times as there are Managed Servers.
Here, HostA1, and HostA2 must be added.
The following explains the information to be set, using the case of adding HostA1 as an example.
[Basic information]
Setting item | Examples of settings | Contents of settings |
|---|---|---|
Server name | HostA1 | Specify the entry name for the Managed Server . Each server name must be unique among all Managed Servers. |
IP address | 192.0.2.2 | Specify the IP address of the Managed Server . |
Subnet mask | 255.255.255.0 | Specify the subnet mask of the Managed Server . |
Proxy server | Not checked | If communication between the manager and agent is performed via a proxy server, select the check box. |
Proxy server address | Not specified | If the proxy server check box is selected, specify the address of the proxy server. |
Proxy server port | Not specified | If the proxy server check box is selected, specify the port of the proxy server. |
See
For more information, see "14.1.2 Managed server setting window".
[Attributes of Managed Server]
Setting item | Example of settings | Contents of settings |
|---|---|---|
Systemwalker Service Quality Coordinator agent | Select the check box. | - |
Agent URL | http://192.0.2.2/SQC/ | Specify the URL of agent. The format is as following: "http://host[:port]/alias/" For the "host", specify the IP address or host name (with domain name). Match the setting with "Name" two lines below [Server] in the use trend database environment definition file. |
