3.1.2 Installing a Proxy Manager

Preparing for installation

Before running the Installer, refer to "1.2.2 Installing an Agent or Proxy Manager" to check the installation conditions and collect the necessary information.

Prepare the product CD-ROM (Server) and refer to "Chapter 3 Installation and Setup" for information about installer startup and screens.

Installation procedure

This section explains the procedure for installing a Proxy Manager.

Windows

Select Installation of Proxy Manager.

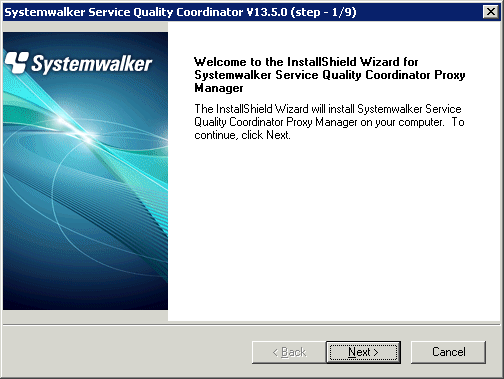

Installation window

Click Next.

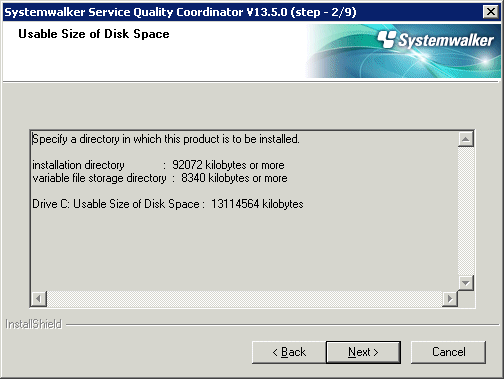

Available disk space display

Click Next if the available disk space is sufficient.

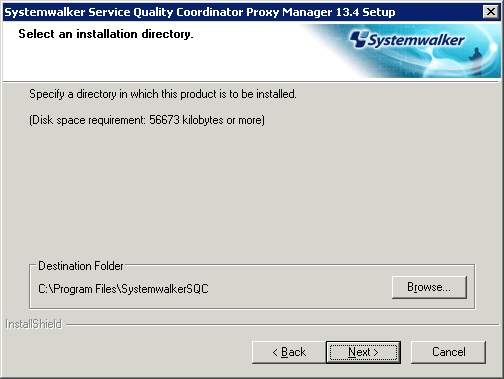

Select the installation directory

Check that the installation directory is correct and click Next.

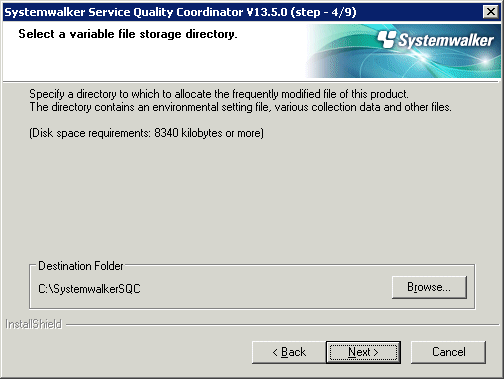

Select the variable file storage directory

Confirm that the variable file storage directory is correct and click Next.

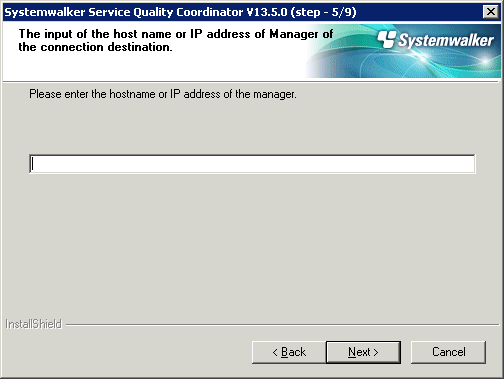

Enter the host name or IP address of the Manager to connect to

Enter the host name or IP address of the Manager to connect to, and click Next.

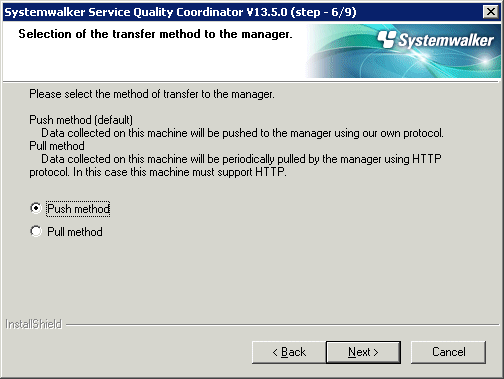

Select the method of communicating with the Manager

Select the method of communicating with the Manager, and click Next.

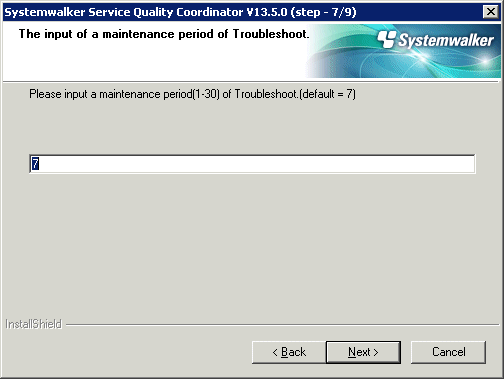

Enter the Troubleshoot retention period

Enter the Troubleshoot retention period and click Next.

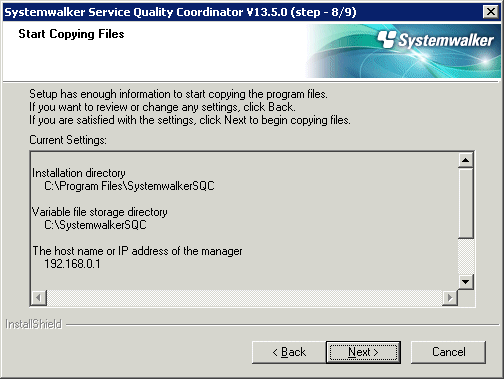

Confirm commencement of the file copy process

Confirm that the settings are correct and click Next.

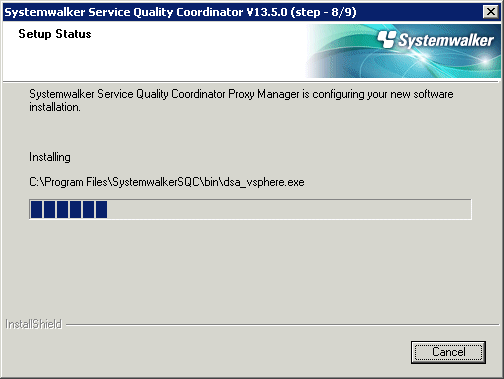

Setup status

Installation will commence.

Environment settings

If the following screen is displayed, set the environment settings.

Select [Yes(Y)>].

Environment settings

This screen is displayed after above screen.

Select [Yes(Y)>].

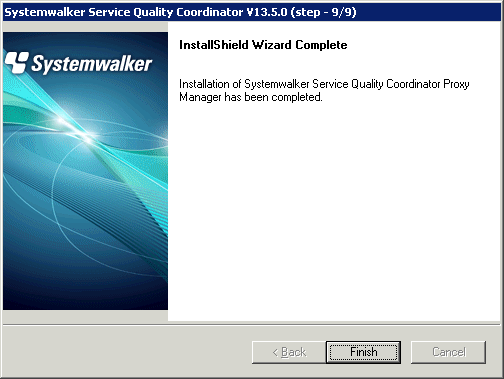

InstallShield Wizard completed

Click Finish to finish installation.

UNIX

================================================================================
                Systemwalker Service Quality Coordinator Setup
                                     V13.5.0
 All Rights Reserved, Copyright(C) FUJITSU LIMITED && FUJITSU AUSTRALIA LIMITED
                                    2003-2011
================================================================================

<< Select Installation type >>

 1.Enterprise Manager
 2.Manager
 3.Proxy Manager
 4.Agent for Server
 5.Agent for Business

--------------------------------------------------------------------------------
Please specify installation type. [?,q] ==> 3

Enter "3" and press the Enter key.

Confirm the installation directory

Default installation information is following:
	Program install directory        : /opt
	Fixed configuration directory    : /etc/opt
	Variable configuration directory : /var/opt
Do you want to change the above information? (default: n)[y, n, ?, q]
> n

If the installation directory is correct, enter "n" and press the Enter key.

If "y" is entered
The following window will be displayed to allow the user to change the installation directory:

Please specify program install directory. (default: /opt)[?, q]
> /opt2
Please specify fixed configuration directory. (default: /etc/opt)[?, q]
> /etc/opt2
Please specify variable configuration directory. (default: /var/opt)[?, q]
> /var/opt2

Enter the host name or IP address of the Manager to connect to

Please specify manager host name or IP address. [?, q]
> 127.0.0.1

Enter the host name or IP address of the Manager to connect to, and press the Enter key.

Confirm the host name or IP address of the Manager to connect to

Current Manager Host is following:
	Manager Host: 127.0.0.1
Do you want to change the above environment? (default: n)[y, n, ?, q]
> n

If the host name or IP address of the Manager to connect to is correct, enter "n" and press the Enter key.

Confirm the method of communicating with the Manager

Default data transfer method to Manager is following:
	Data transfer method to Manager: push
Do you want to change the above environment? (default: n)[y, n, ?, q]
> n

If the method of communicating with the Manager is correct, enter "n" and press the Enter key.

If "y" is entered
The following window will be displayed to allow the user to specify the method of communicating with the Manager.
```
Please specify data transfer method to Manager. (default: push)[push, pull, ?, q]
> pull
```

Confirm the Troubleshoot retention period

Default troubleshoot cycle is following:
	Troubleshoot Cycle: 7
Do you want to change the above environment? (default: n)[y, n, ?, q]
> n

If the Troubleshoot retention period is correct, enter "n" and press the Enter key.

If "y" is entered
The following window will be displayed to allow the user to change the Troubleshoot retention period:
```
Please specify Troubleshoot cycle.
 (default: 7)[1-30, ?, q]
> 10
```

Confirm the commencement of installation

Do you want to continue with the installation of Systemwalker SQC Proxy Manager [y,n]

Enter "y" and press the Enter key to start installation.
