Systemwalker Service Quality Coordinator Installation Guide

3.1.3 Installing an Agent

Preparing for installation

Before running the Installer, refer to "1.2.2 Installing an Agent or Proxy Manager" to check the installation conditions and collect the necessary information.

Prepare the product CD-ROM (Server) and refer to "Chapter 3 Installation and Setup" for information about installer startup and screens.

Installation procedure

This section explains the procedure for installing an Agent.

Windows

Select either Installation of Agent for Server or Installation of Agent for Business.

This screen-shot is taken from an Agent for Server installation.

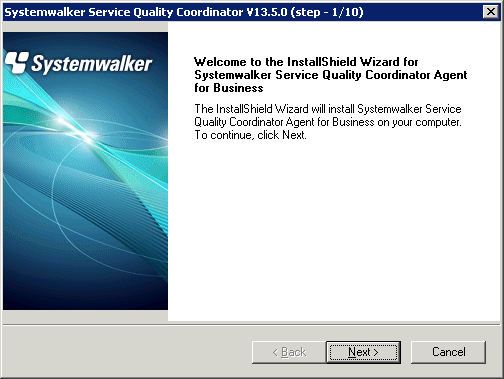

Installation window

Click Next.

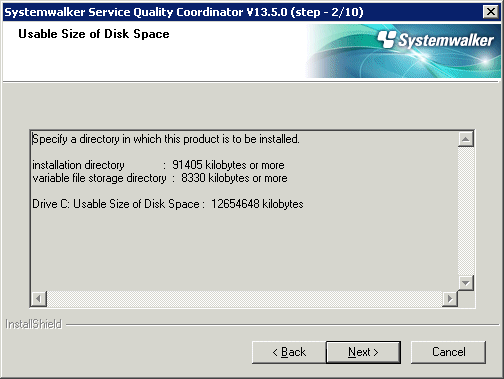

Available disk space display

Check the remaining disk space and click Next.

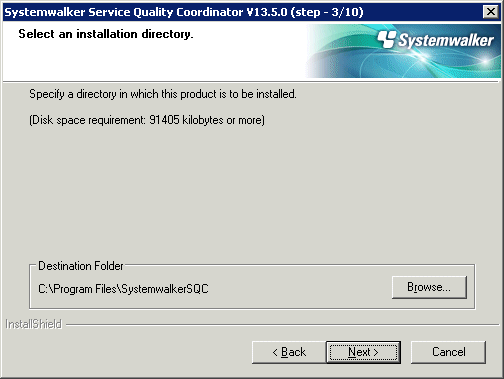

Select the installation directory

Check the installation directory and click Next.

Select the variable file storage directory

Check the variable file storage directory and click Next.

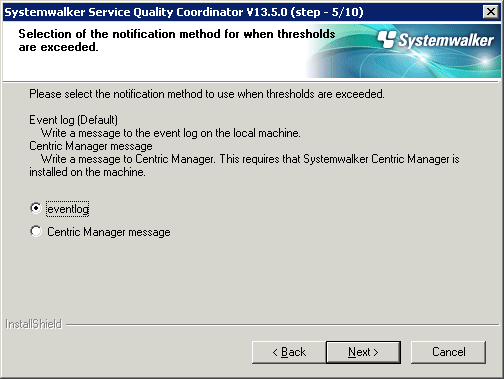

Select threshold violation notification method

Select the threshold violation notification method and click Next.

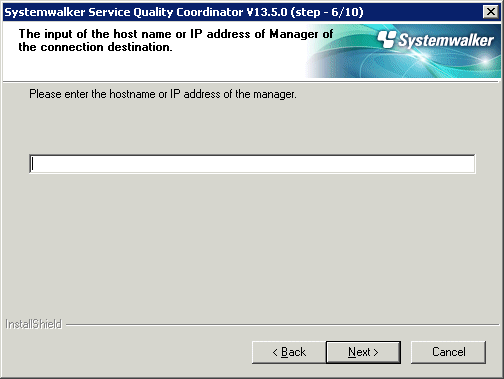

Enter the host name or IP address of the Manager to connect to

Enter the host name or IP address of the Manager to connect to and click Next.

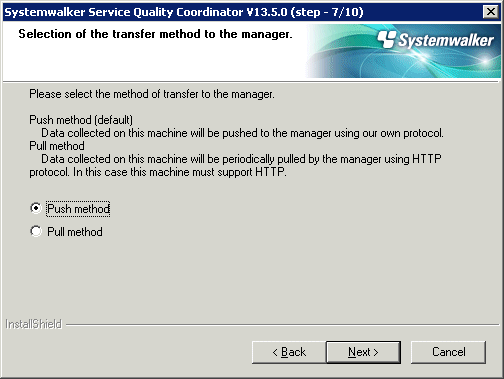

Select method to communicate with Manager

Select the method used to communicate with the Manager and click Next.

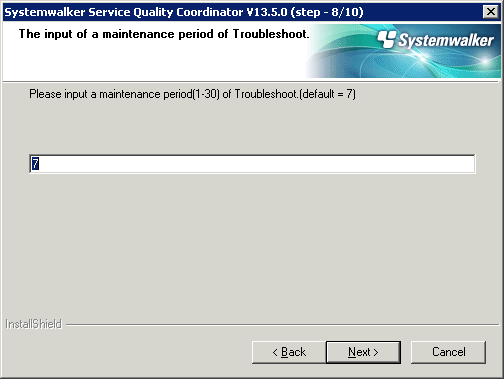

Enter the Troubleshoot retention period

Enter the Troubleshoot retention period and click Next.

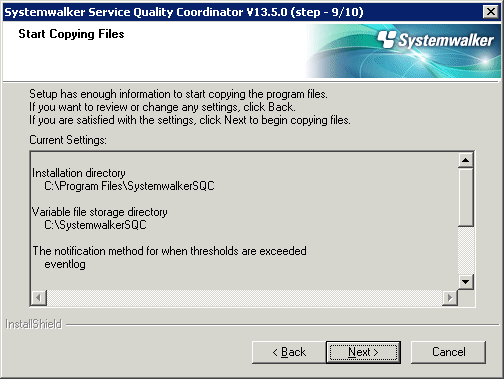

Check that file copy starts

Check the settings and click Next.

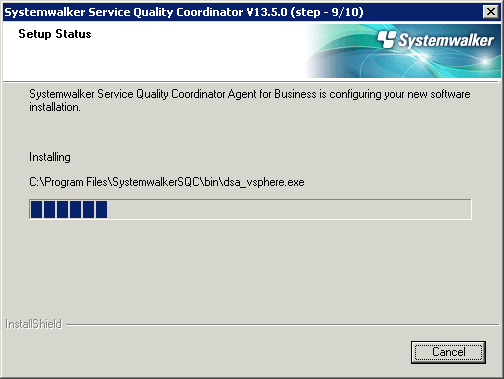

Setup status

Start installation.

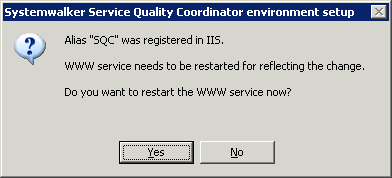

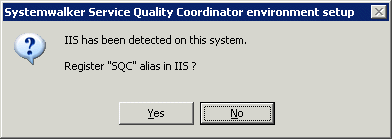

Environment settings

If the following screen is displayed, set the environment settings.

Select [Yes(Y)>].

Environment settings

This screen is displayed after above screen.

Select [Yes(Y)>].

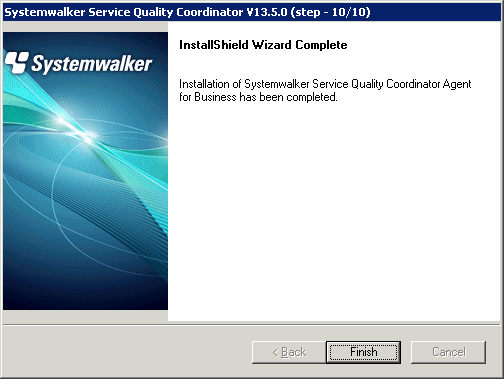

Completion of InstallShield Wizard

Select Finish to complete installation.

UNIX

================================================================================
                Systemwalker Service Quality Coordinator Setup
                                     V13.5.0
 All Rights Reserved, Copyright(C) FUJITSU LIMITED && FUJITSU AUSTRALIA LIMITED
                                    2003-2011
================================================================================

<< Select Installation type >>

 1.Enterprise Manager
 2.Manager
 3.Proxy Manager
 4.Agent for Server
 5.Agent for Business

--------------------------------------------------------------------------------
Please specify installation type. [?,q] ==> 4

Enter "4" or "5" and press the Enter key.

Confirm the installation directory

Default installation information is following:
	Program install directory        : /opt
	Fixed configuration directory    : /etc/opt
	Variable configuration directory : /var/opt
Do you want to change the above information? (default: n)[y, n, ?, q]
> n

If the installation directory is correct, enter "n" and press the Enter key.

• If "y" is entered
  The following window will be displayed to allow the user to change the installation directory:

  Please specify program install directory. (default: /opt)[?, q]
  > /opt2
  Please specify fixed configuration directory. (default: /etc/opt)[?, q]
  > /etc/opt2
  Please specify variable configuration directory. (default: /var/opt)[?, q]
  > /var/opt2





Enter the host name or IP address of the Manager to connect to

Please specify manager host name or IP address. [?, q]
> 127.0.0.1

Enter the host name or IP address of the Manager to connect to, and press the Enter key.

Confirm the host name or IP address of the Manager to connect to

Current Manager Host is following:
	Manager Host: 127.0.0.1
Do you want to change the above environment? (default: n)[y, n, ?, q]
> n

If the host name or IP address of the Manager to connect to is correct, enter "n" and press the Enter key.

Confirm the method of communicating with the Manager

Default data transfer method to Manager is following:
	Data transfer method to Manager: push
Do you want to change the above environment? (default: n)[y, n, ?, q]
> n

If the method of communicating with the Manager is correct, enter "n" and press the Enter key.

If "y" is entered
The following window will be displayed to allow the user to specify the method of communicating with the Manager.

Please specify data transfer method to Manager. (default: push)[push, pull, ?, q]
> pull

Confirm the alert action

Default alert action is following:
	Alert action: syslog
Do you want to change the above environment? (default: n)[y, n, ?, q]
> n

If the notification method to use in the event of a threshold violation is correct, enter "n" and press the Enter key.

If "y" is entered
The following window will be displayed to allow the user to specify the notification method to use in the event of a threshold violation.

Please specify alert action.
  centric:Message link operation with Centric Manager (default: syslog)[syslog, centric, ?, q]
> centric

Confirm the Troubleshoot retention period

Default troubleshoot cycle is following:
	Troubleshoot Cycle: 7
Do you want to change the above environment? (default: n)[y, n, ?, q]
> n

If the Troubleshoot retention period is correct, enter "n" and press the Enter key.

If "y" is entered
The following window will be displayed to allow the user to change the Troubleshoot retention period:

Please specify Troubleshoot cycle.
 (default: 7)[1-30, ?, q]
> 10

Confirm the commencement of installation

Do you want to continue with the installation of Systemwalker SQC Agent for Server [y,n]

Enter "y" and press the Enter key to start installation.
