PRIMECLUSTER Wizard for NAS (PRIMEQUEST) 4.2 Configuration and Administration Guide - Linux -

2.4.3 Netapp resource creation

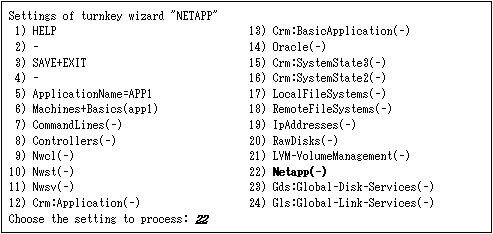

1. When you return to the NETAPP turnkey wizard, select NetApp.

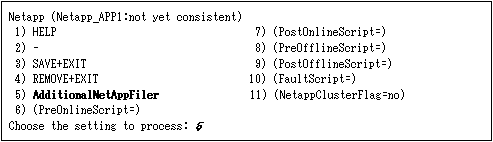

2. When the Netapp wizard is displayed, select AdditionalNetAppFiler.



3. When the following menu is displayed, select FREECHOICE and enter a host name for NAS.



4. When the following menu is displayed, select AdditionalExportpoint.



5. When the following menu is displayed, select FREECHOICE and enter a volume to be exported.



6. The following menu is displayed. If you have any further volumes to be exported, select AdditionalExportpoint to add.



   The following operations are available from the above menu:

   Attributes	Description
   UnLockFlag	Select whether or not the Unlock processing should be executed on NAS. Selecting "always" constantly enables the Unlock processing in the event of a Netapp resource failure. Selecting "nodedown" enables the Unlock processing only when the node with the NetApp resource is down. Default: always (always, nodedown)
   UnExportFlag	Select whether or not the Unexport processing should be executed during Offline processing in standby operation. Selecting "yes" enables the Unexport processing during Offline processing. Selecting "no" disables the Unexport processing during Offline processing. In scalable operation, the Unexport processing is disabled regardless this option. Default: no (yes, no)
   ScriptTimeout	Specify timeout period for launching of Online/Offline processing. Normally, you don't need to change the default value. Default: 300s (10s-31536000s)

7. If addition is complete, select SAVE+RETURN.
   You return to the Netapp Wizard. If you want to add any further NAS units, select AdditionalNetAppFiler.

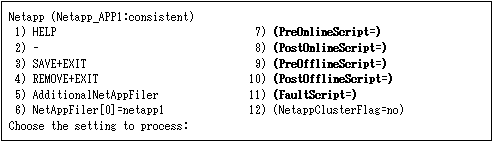

8. It is set for script files in Netapp resource also start and stop. If it is not necessary, go to next step.



   Attributes	Description
   PreOnlineScript	Executed before online processing.
   PostOnlineScript	Executed after online processing.
   PreOfflineScript	Executed before offline processing.
   PostOfflineScript	Executed after offline processing.
   FaultScript	Executed when a fault occurs.


   For further details, see the "PRIMECLUSTER Reliant Monitor Services (RMS) with Wizard Tools (Solaris, Linux) Configuration and Administration Guide".

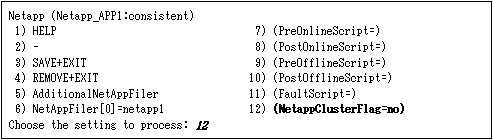

9. Next, it is set for PRIMECLUSTER to control the NAS cluster if necessary. In the cluster composition of the NAS device, if network failure between the cluster node and the NAS device is detected PRIMECLUSTER Wizard for NAS can execute failover (cf takeover) of the NAS-Cluster.
   Selects NetappClusterFlag=no for monitoring the NAS-Cluster.



   Attributes	Description
   NetappClusterFlag	It is set for control facility of the NAS-Cluster. Default: no (yes, no)


   Default is no. NetappClusterFlag select no if control facility of the NAS-Cluster is not necessary, when you use a clustered NAS.

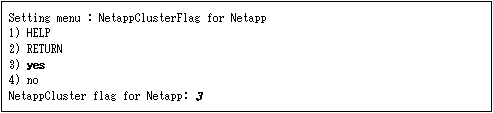

10. If you use NAS-Cluster, select yes.

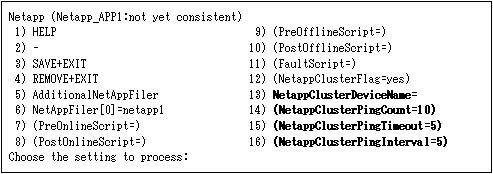

11. Set parameters.



    Attributes	Description
    NetappClusterDeviceName	The NAS device name (host name) is specified. Delimit by ":" and specify two NAS device names. example: netapp1:netapp2
    NetappClusterPingCount	The execution frequency of the ping command is specified. Default: 10 (1 - 60)
    NetappClusterPingTimeout	The time-out time for launching of the ping command is specified. Default: 5s (1s - 300s)
    NetappClusterPingInterval	The execution interval of the ping command is specified. Default: 5s (1s - 300s)


    The NAS device is monitored by the ping command.
    In this step, it is possible to set the execution frequency, the time-out time, and the execution interval of the ping command executed in fixed-cycle monitoring. It is recommended these parameters are used like default.


    Refer to "Appendix B Turning of the control facirity for the NAS-Cluster" for the parameter of the ping command.

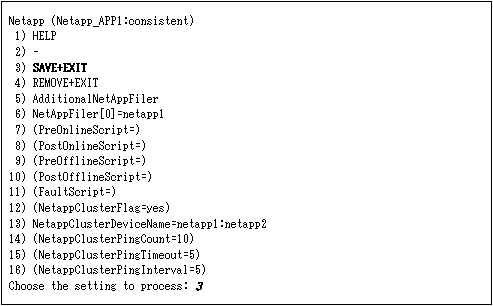

12. When the setting is completed, SAVE+EXIT is selected.
