PRIMECLUSTER Wizard for NAS (PRIMEQUEST) 4.2 Configuration and Administration Guide - Linux -

2.4.4 RemoteFileSystems resource creation

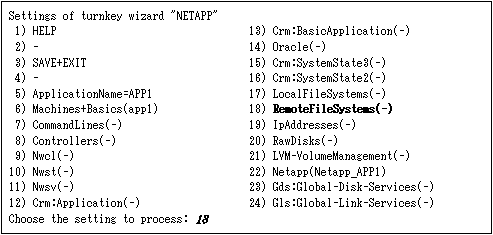

1. Select RemoteFileSystems from the NETAPP turnkey wizard to mount the NAS volume.

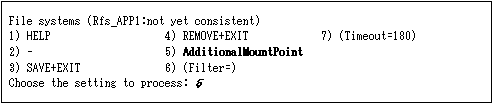

2. When the RemoteFileSystems wizard is displayed, select AdditionalMountPoint.

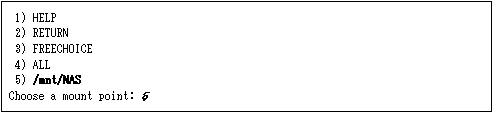

3. When the following menu is displayed, select the mount point, or select FREECHOISE and enter the mount point.

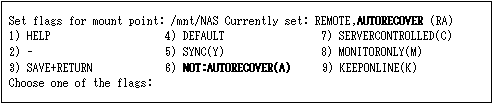

   When the mount point is specified, a setup menu is displayed.
   Note that this menu is exclusive to AUTORECOVER.

   Attributes	Description
   AUTORECOVER	AUTORECOVER allows you to select whether or not the mount should automatically be recovered. If AUTORECOVER is enabled, the mount is automatically remounted when it is released.

   AUTORECOVER is enabled if it is displayed at "Currently set".



4. When settings are complete, select SAVE+RETURN.

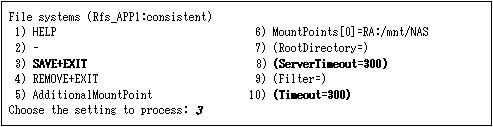

5. You return to the RemoteFileSystems wizard. Change Timeout and ServerTimeout to 300s respectively. If you want to add any further mount points, select AdditionalMountPoint. If creation is complete, press SAVE+EXIT.
