B.1.2 In a Group

This section explains how to create an Oracle resource newly and register it to an existing userApplication that does not include any Oracle instance resource and Listener resource.

To create an Oracle instance resource and(or) a Listener resource newly and register them(it) to an existing userApplication including GDS, LFS and GLS resources already.

In the standby operation, it is the same as the procedure in "2.2.9.

1. Stop RMS on all nodes.
2. Start up RMS Wizard by executing "hvw -n <Configuration Name>" command on any node.
3. Select Application-Edit in the "Main configuration menu" screen.
4. Select userApplication name where resources are registered in the "Application selection menu" screen.
5. Select Oracle(-) in the "Settings of turnkey wizard "WIZSTANDBY"" screen.

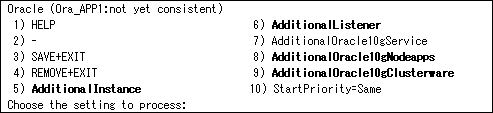

6. Select Additionalxxx in the "Oracle (Ora_xxx:not yet consistent)" screen.





   • - In the Standby Operation
     If you create and register an Oracle instance resource or an ASM instance resource, select AdditionalInstance here, and edit advanced settings of the resource according to the step "5" of "2.2.9".
     If you create and register a Listener resource, select AdditionalListener here, and edit advanced settings of the resource according to the step "6" of "2.2.9".
   • - In the Standby Operation
     If you create and register an Oracle Clusterware resource, select AdditionalOracle10gClusterware here, and edit advanced settings of the resource according to the step "3" - "5" of "2.3.4".
     If you create and register an Oracle RAC instance resource or a Listener resource, select AdditionalOracle10gNodeapps here, and edit advanced settings of the resource according to the step "8" - "12" of "2.3.5".

7. Select SAVE+EXIT in the "Oracle (Ora_xxx:consistent)" screen after completed.
8. Select SAVE+EXIT in the "Settings of turnkey wizard "WIZSTANDBY"" screen.
9. Select RETURN in the "Application selection menu" screen.
10. Execute Configuration-Generate and Configuration-Activate in the "Main configuration menu" screen.
11. Select QUIT in the "Main configuration menu" screen and terminate RMS Wizard.
