ETERNUS SF Disk Space Monitor User's Guide - Microsoft(R) Windows Server(TM) 2003/Solaris(TM) Operating System/Linux - 13.0

8.3 Scheduled Report Registration View

This section explains how to use the Scheduled Report Registration View.

8.3.1 Starting the Scheduled Report Registration View

To display the Scheduled Report Registration View, first display the Setting View by clicking the Setting View button in the Console Definitions tab of the Admin Console window, and then select Scheduled Report Registration from the toolbar in the Setting View.

Do not perform operations in the Scheduled Report Registration View using the pop-up context menu that appears when the right mouse button is clicked.

8.3.2 Window configuration

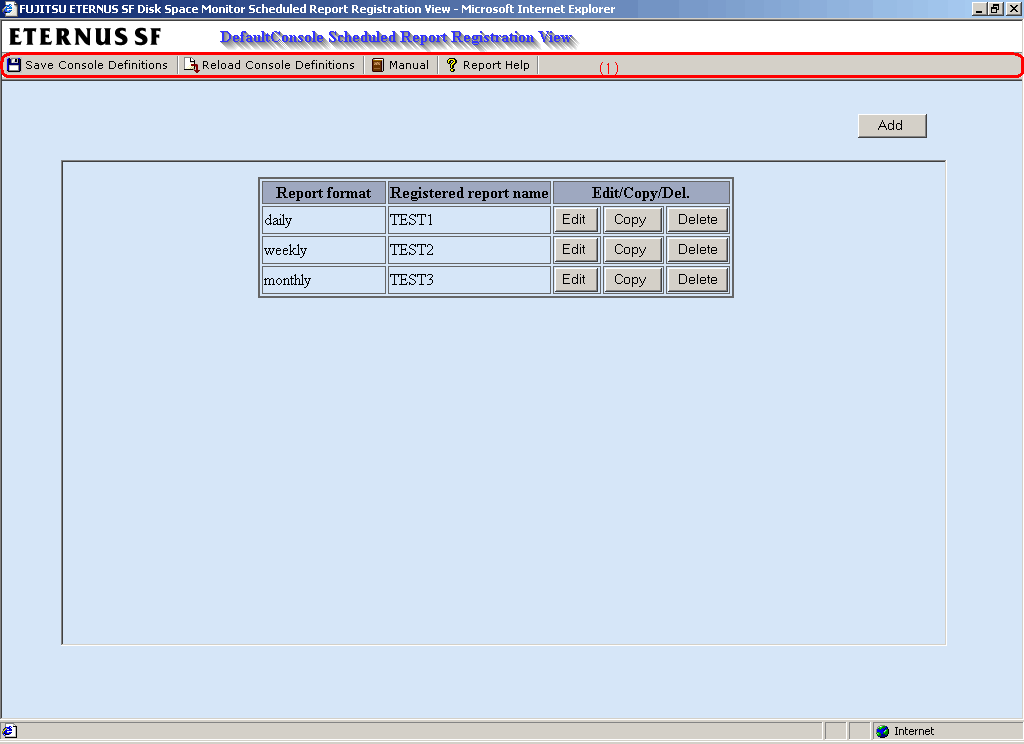

The Scheduled Report Registration View will appear as below.

The Scheduled Report Registration View is organized as shown in the following table.

Item No.	Component	Description
(1)	Toolbar	The toolbar provides the following menus: Save Console Definitions Saves the console definitions Reload Console Definitions Reloads the console definitions Manual Opens the User's Guide (this manual). Report Help Opens the section of the User's Guide that deals with using the Report views (this chapter).

The following operations can be performed with the Scheduled Report Registration View:

• Add
  New scheduled reports to be created with the scheduled report creation command can be named and registered by specifying their conditions.

• Edit
  The conditions of registered scheduled reports can be edited.

• Copy
  Registered scheduled reports can be copied.
• Delete
  Registered scheduled reports can be deleted.

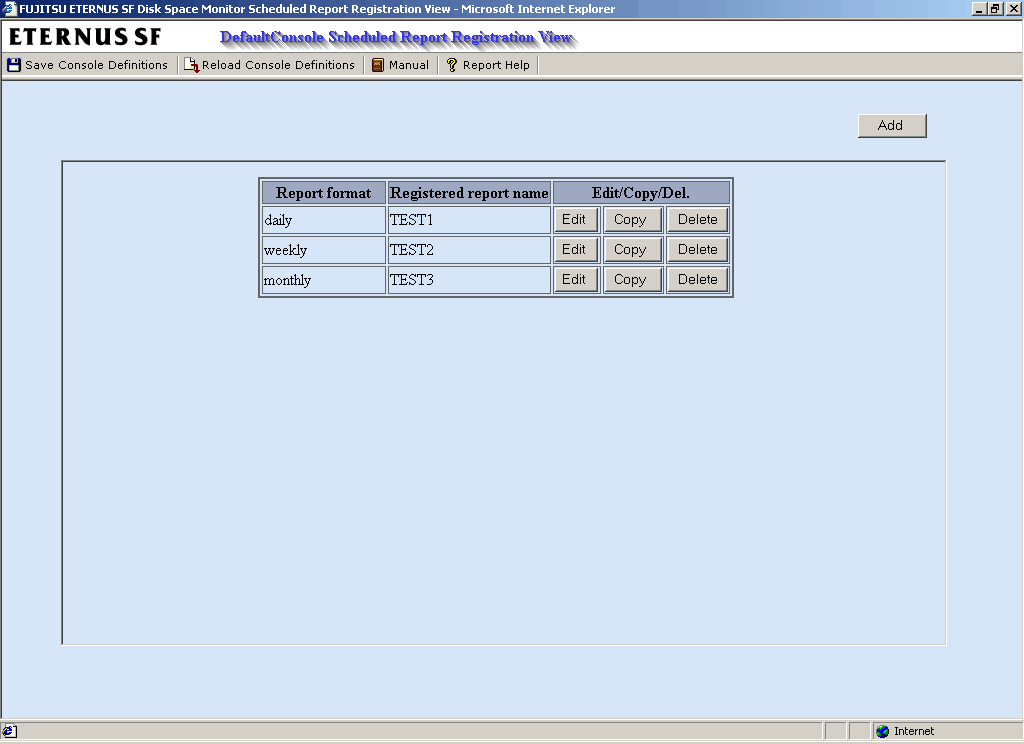

The Scheduled Report Registration View provides the following buttons that correspond to the operations described on the previous page.

Button	Operation
Add	Opens the report registration window in its default state so that reports created with the scheduled report creation command can be registered. The report registration window allows the user to specify the report conditions and register the report using a name. It can also be used to run a test display to check that the specified report conditions are correct. Refer to Section 8.5, "Using the Report Creation and Registration Windows" for details on how to use the report registration window.
Edit	Displays a report registration window with existing report conditions specified to enable the registered scheduled report conditions to be edited. The report registration window allows report conditions to be edited, overwritten and then registered. It is also possible to run a test display to check that the specified report conditions are correct. Refer to Section 8.5, "Using the Report Creation and Registration Windows" for details on how to use the report registration window.
Copy	Copies a registered scheduled report. When the Copy button is clicked, the Copy of registered report dialog box will be displayed. Enter the report name to be assigned to the copy, and then click the OK button. Refer to Section 8.5, "Using the Report Creation and Registration Windows" for details on how to use the report registration window.
Delete	Deletes a registered scheduled report.

If the registered content of a scheduled report is changed (registered, edited, copied or deleted) using the Scheduled Report Registration View, the Save Console Definitions button on the toolbar must be clicked.
