PRIMECLUSTER Global Link Services Configuration and Administration Guide: Multipath Function (for Solaris(TM) Operating Environment)

7.2.1.2 Resource Registration

The resource is registered for each interface after the environmental configuration is completed.

A resource is registered only for the MPNET interface by which the " " (blank) is specified to be the cluster" parameter of the "/etc/opt/FJSVmpnet/conf/parameters" file. A resource is not registered about the other MPNET interface.

The resource should be registered in all nodes with the Multipath function deactivated.

The following commands are used to register the resource.
Refer to "Chapter 6 Command Reference" for details.

"Example of Confirming the Resource Registration" and "Example of the Content of /etc/opt/FJSVmpnet/conf/parameters/file" are shown as examples of "clgettree" output after the command execution.

[Command]

Command	Action
/opt/FJSVmpnet/cluster/bin/mpnet_addrid	This command adds the resource in the node used. The resources in all interfaces or specified interfaces that are defined in the environmental configuration of the node can be registered.
/opt/FJSVmpnet/cluster/bin/mpnet_rid	This command is used to add the resources of all nodes or specified nodes. Use this command after executing the environmental configuration copy command. The resources are registered based on configuration information in the target node, and "/etc/opt/FJSVmpnet/conf/parameters" file in which the resource was registered in all nodes or the specified nodes is copied.

[Example of Confirming the Resource Registration]

# /etc/opt/FJSVcluster/bin/clgettree
        Cluster 1 cluster
                Domain 2 Domain0
                        Shared 7 SHD_Domain0
                                  Psd 8 planpath0 ON
                                  Psd 9 planpath1 ON
                                  SHD_MPDisk 44 SHD_D2048 UNKNOWN
                                          MPDisk 42 mphd2048 ON fin121
                                          MPDisk 43 mphd2048 ON fin120
                                  SHD_MPDisk 47 SHD_D2049 UNKNOWN
                                          MPDisk 45 mphd2049 OFF-STOP fin120
                                          MPDisk 46 mphd2049 OFF-STOP fin121
                        Node 3 fin120 ON
                                  SystemState2 14 FJSVclprt_spool UNKNOWN
                                  Ethernet 25 hme0 ON
                                  MPDisk 43 mphd2048 ON
                                  MPDisk 45 mphd2049 OFF-STOP
                                  SymfoWARE_RDB 52 st1 ON
                                  Application 57 rdbtest ON
                                  MPNET 66 MPNET_mpnet0 UNKNOWN (*1)
                        Node 5 fin121 ON
                                  SystemState2 15 FJSVclprt_spool UNKNOWN
                                  Ethernet 26 hme0 ON
                                  MPDisk 42 mphd2048 ON
                                  MPDisk 46 mphd2049 OFF-STOP
                                  SymfoWARE_RDB 53 st1 ON
                                  Application 58 rdbtest ON
                                  MPNET 67 MPNET_mpnet0 UNKNOWN (*1)
#

*1: Resource ID in interface (Resource ID in the example indicates "66" and "67")

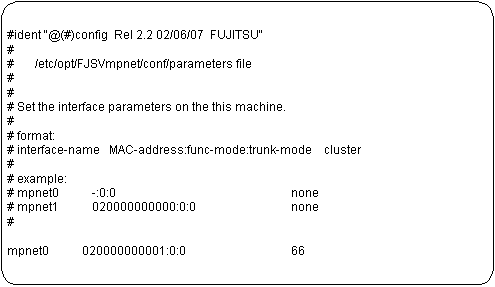

[Example of the Content of /etc/opt/FJSVmpnet/conf/parameters/file]
