Chapter 7 Administration on a Cluster System> 7.2 The environmental configuration on PRIMECLUSTER

7.2.1 Adding the Cluster Environmental Configuration

In the Multipath function, resource registration is required as well as the usual environmental configuration.
"Figure 7.4 Flow of an Additional Procedure of Cluster Environmental Configuration" shows how to perform the additional procedure of the configuration by using the "userApplication Configuration wizard." The registration of a resource is the same procedure even when using "RMS wizards." Please refer to "PRIMECLUSTER Installation and Administration Guide", or "PRIMECLUSTER Relient Monitor Services (RMS) Configuration and Administration Guide" about the details of the configuration method of the userApplication using "RMS Wizards."

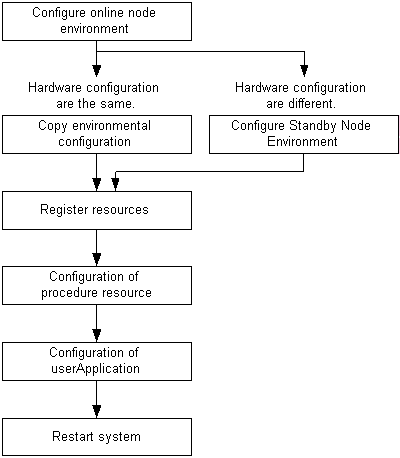

[Figure 7.4 Flow of an Additional Procedure of Cluster Environmental Configuration]

The command shown in "Table 7.1 Cluster Configuration Operation Command" can be used to perform the cluster environmental configuration.
This command can only be execute in the clustering system environment.

[Table 7.1 Cluster Configuration Operation Command]

Type

Command

Description

Permission

resource registration / deletion

/opt/FJSVmpnet/cluster/bin/mpnet_addrid

resources are registered

Super-user

/opt/FJSVmpnet/cluster/bin/mpnet_delrid

resources are deleted.

Super-user

/opt/FJSVmpnet/cluster/bin/mpnet_rid

The resources of all nodes or specified nodes are registered or deleted.

Super-user

copy of environmental configuration

/opt/FJSVmpnet/cluster/bin/mpnet_copyfile

Environmental configuration is copied into all nodes or the specified node.

Super-user


Down7.2.1.1 Environmental Configuration
Down7.2.1.2 Resource Registration
Down7.2.1.3 Configuration of procedure resource
Down7.2.1.4 Configuration of userApplication
Down7.2.1.5 Notes
