REMCS Agent Operator's Guide 1.5

2.4.4.2 REMCS environment settings

Specify the HTTP setup and the periodic connection schedule by using the REMCS environment setting menu of the machine administration menu.

The REMCS environment setting menu can be displayed as follows.

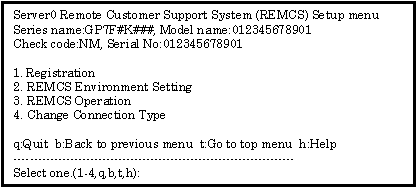

1. Select "Remote Setup" from the machine administration menu.

2. Display the REMCS Agent menu.



3. Select "REMCS Environment Setting."

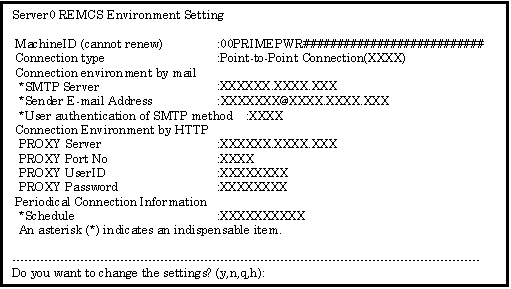

   Enter the needed information in the "REMCS Environment Setting" menu.

• For the items that have the white circle "o" in the "Required Item" column, the information requested is mandatory.

• Under the following conditions, when setup menu noticed needs of setup, setup menu of "REMCS Environment Setting" is automatically started after registration is finished.

  When following models use Enhanced Support Facility 2.4 or later.

  PRIMEPOWER250/450/650/850

Required Item	Item	Description
o	Connection Environment by e-mail SMTP Server	Enter the name of mail server used for communication with REMCS.
O	Connection Environment by e-mail Sender e-mail Address	Enter the e-mail address used for communication with the REMCS Center. This address is specified in the "From" line (sender address) column of the mail header sent from server to REMCS Center. The sender's e-mail address must have the qualification to send e-mail outside your domain.
O	Connection Environment by HTTP PROXY Server	Enter the name of the HTTP-Proxy server.
O	Periodical Connection Information Schedule	Specify the schedule of periodic connection to the REMCS Center. Select the connection interval from everyday, everyday (except Sunday), everyday (except Saturday and Sunday) and every week. When the connection interval is every week, specify a day of the week. And specify the start time for the periodic connection.

When registration is complete, a confirmation message is displayed. Check the entry, and select "Updating the REMCS Environment."

After the environment is updated, perform "Checking Connection with REMCS Center."
