12.7.1 Operation Design

The configuration example when the Storage Cluster Continuous Copy function is used is shown in "Figure 12.6 Configuration Example When Using Storage Cluster Continuous Copy Function".

Perform an operational design by referring to the following procedure.

1. 8.1.2.1 Designing Server Configurations

2. 8.1.2.2 Designing Storage Groups or Databases

3. 8.1.2.3 Designing Circular Logs

4. 8.1.2.4 Preparing Backup Disks (LUs) and Backup Volumes (Partitions)

5. 8.1.2.5 Designing Copy Sets

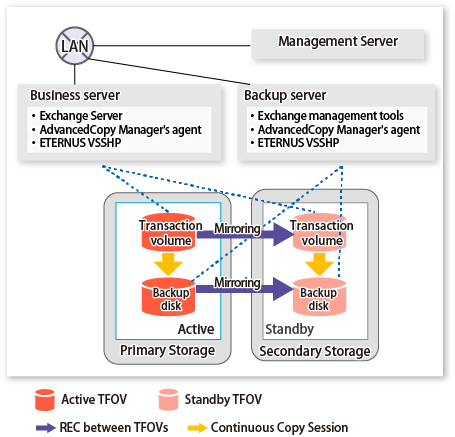

Figure 12.6 Configuration Example When Using Storage Cluster Continuous Copy Function

Point

Locate the transaction disks and backup disks in the same TFO group.
