This section describes the following work flow when the Storage Cluster is operating with the Active-Standby configuration.
Refer to "9.4 Operation Method in Active-Standby Configuration" for details about the procedure to create a Storage Cluster environment.
When registering new Primary and Secondary Storage devices

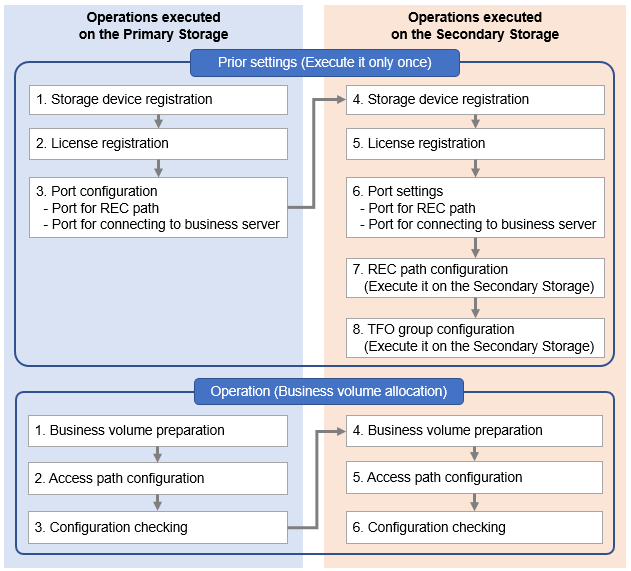

Figure 9.17 Work Flow when FC Ports are used
Figure 9.18 Work Flow when iSCSI Ports are used
When adding Secondary Storage where only Primary Storage is used
Figure 9.19 Work Flow when FC Ports were used
Figure 9.20 Work Flow when iSCSI Ports were used
When adding volumes
Figure 9.21 Work Flow
