This section describes the following work flow when the Storage Cluster is operating with the Active-Active configuration.
Refer to "9.3 Operation Method in Active-Active Configuration" for details about the procedure to create a Storage Cluster environment.

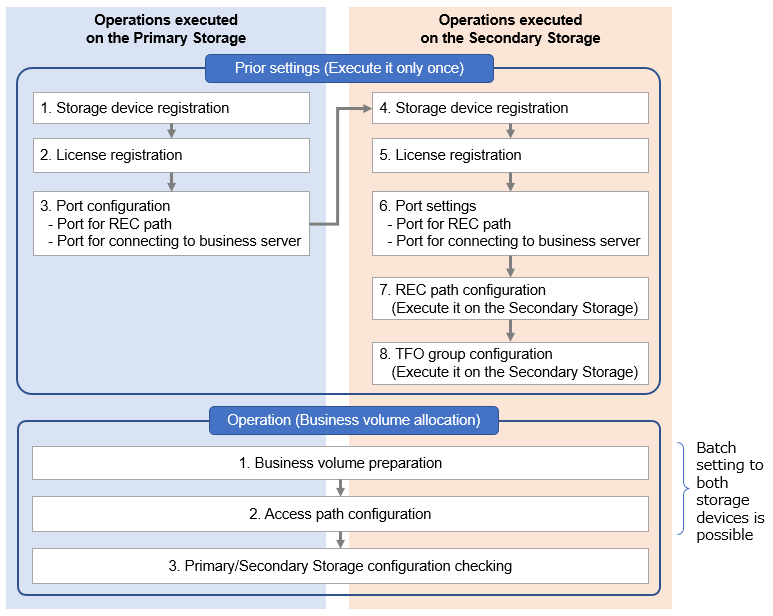

When registering new Primary and Secondary Storage devices
Figure 9.14 Work Flow

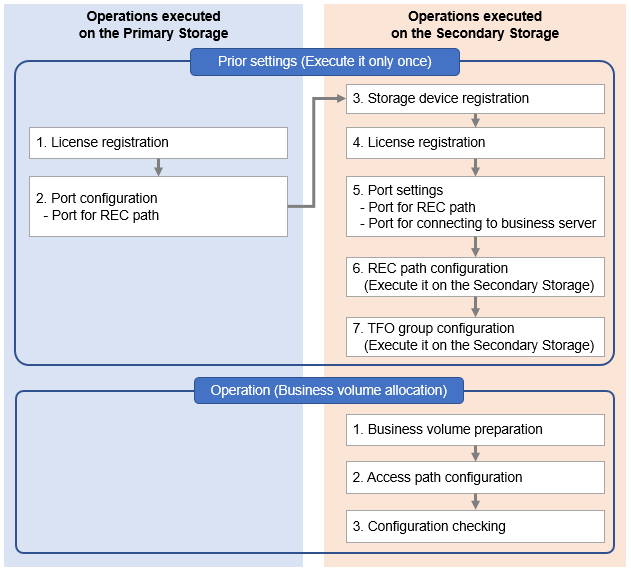

When adding Secondary Storage where only Primary Storage is used
Figure 9.15 Work Flow
Point
To set a preferred path, perform it after all the work in the above work flow is completed. Refer to "9.3.2.2 Setting/Changing the Preferred Path" for the setting procedure of a preferred path.

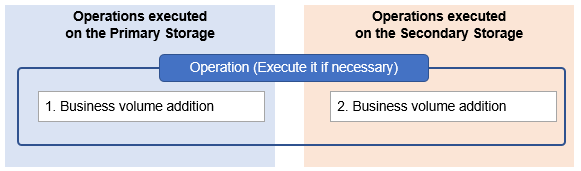

When adding volumes
Figure 9.16 Work Flow
