9.3 Printing a Group Monitoring Map

It is possible to set the print output items for the group monitoring map and then print it.

Procedure

1. Acquiring the group monitoring map

   Selecting a print type displays the Obtain Group Monitoring Map window. Specify conditions in the Obtain Group Monitoring Map window, then click OK.

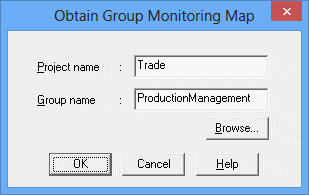

   Figure 9.8 Obtain Group Monitoring Map window



   Project Name:

   Specifies the project to output. Cannot be omitted.

   Group name:

   Specifies the group to output. Cannot be omitted.

   Browse:

   Displays the Browse Registration Info window. For details, see "Displaying the Browse Registration Info window" in "Displaying the Browse Registration Info window."




   The Print Jobscheduler Info window displays a print image of the group monitoring map.

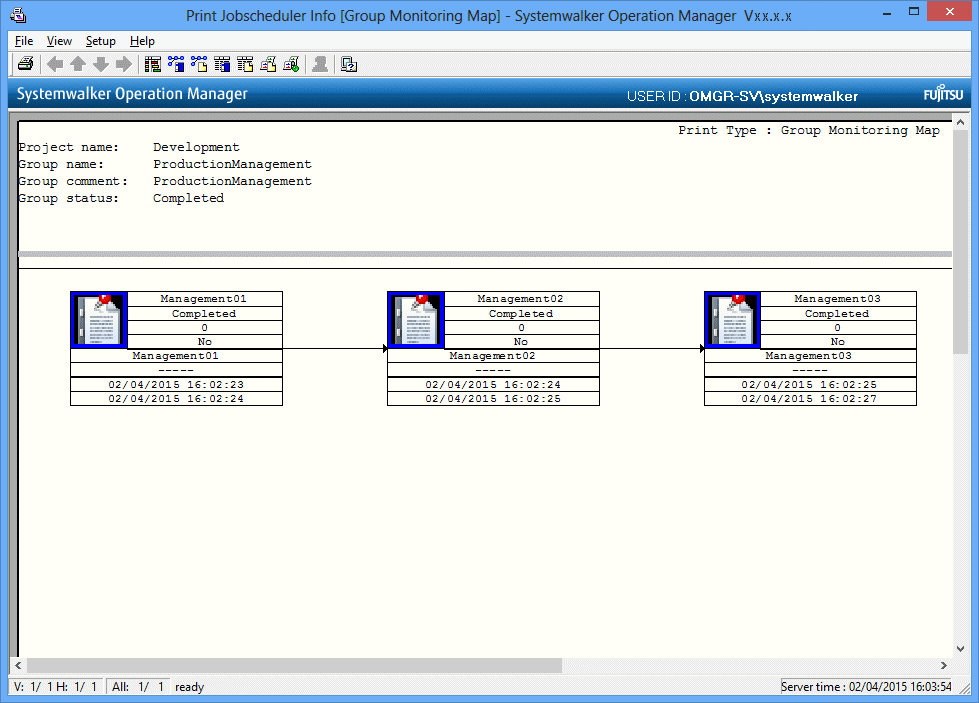

   Figure 9.9 Print Jobscheduler Info window (group monitoring map)






2. Setting print items

   Specify the print items as necessary. Select Print Items from the Setup menu in the Print Jobscheduler Info window.

   Specify the output items in the Group monitoring map sheet of the Specify Print Items window, then click OK. The group monitoring map print image in the Print Jobscheduler Info window will be refreshed according to the specified print items.

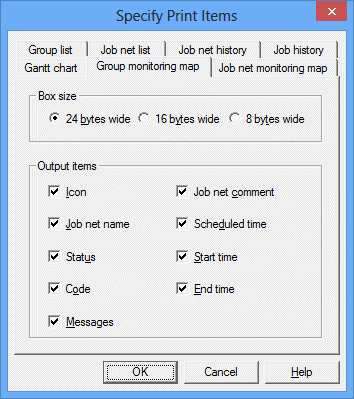

   Figure 9.10 Specify Print Items window - Group monitoring map sheet



   Box size:

   Specifies the width of the box to be displayed on a job net basis.

   Output items:

   Selects the output items (Icon, Job net name, Status, Code, Messages, Job net comment, Scheduled time, Start time, End time) to be displayed in the box for the group monitoring map on a job net basis.

3. Printing

   After setting up the print output contents, select Print from the File menu in the Print Jobscheduler Info window. The contents displayed in the Preview area will be printed by the printer connected to the client machine.
