2.2.7 userApplication Edit

Register Oracle resources in userApplication that is created at “2.2.4 userApplication with No Oracle Resources”.

In standby operation, userApplication is configured as follows.

Note that resource (Ora_App1) is being created and added.

Note

Check if Oracle database is properly running by starting and stopping manually before starting Oracle Resource Creation and Setting.

Before starting this procedure, Oracle instances, Oracle listeners and RMS on all the cluster nodes should stop.

Do not create multiple resources for the same Oracle instance or Listener.

userApplication is edited using the userApplication Configuration Wizard.

The flow of userApplication creation is as follows:

1

userApplication deletion

2.2.7.1 userApplication Deletion

2

Oracle resources creation

2.2.7.2 Oracle Resource Creation

3

Other resources creation

2.2.7.3 Other Resource Creation

4

userApplication creation

2.2.7.4 userApplication Creation

5

Other userApplication creation

2.2.7.5 Other userApplication Creation

6

Configuration-Generate and Configuration-Activate

2.2.7.6 Configuration-Generate and Configuration-Activate

2.2.7.1 userApplication Deletion

Delete only the userApplication that was created in "2.2.4 userApplication with No Oracle Resources" using the userApplication Configuration Wizard. Do not delete resources that are included in the userApplication.

Information

For further details, refer to “PRIMECLUSTER Installation and Administration Guide”.

2.2.7.2 Oracle Resource Creation

This section describes how to create an Oracle resource.

  1. Select “Create Resource” in the “userApplication Configuration” menu.

  2. Select “Oracle” in the “Resource Type” menu.

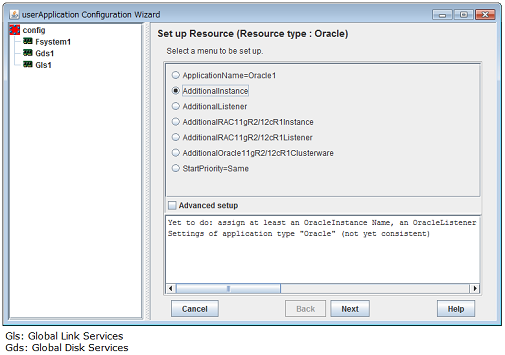

  3. Add the Oracle instance and Oracle listener in the “Set up Resource” menu.

    The settings are as follows:

    Attributes

    Description

    ApplicationName

    Change the application name.
    The default is “Oracle1”.

    It can contain the following characters.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_

    AdditionalInstance

    Add an Oracle instance resource.

    AdditionalListener

    Add an Oracle listener resource.

    AdditionalRAC11gR2/12cR1Instance

    Not used.

    AdditionalRAC11gR2/12cR1Listener

    Not used.

    AdditionalOracle11gR2/12cR1Clusterware

    Not used.

    StartPriority

    Set up the startup order of the Oracle instance and Oracle listener. The default is “Simultaneous startup”.

    Information

    A resource name on RMS is based on the application name (SubApplicationName) entered in “ApplicationName” on this step.

    • Oracle instance resource/ Oracle ASM instance resource
      ORACLE_<SubApplicationName>_<OracleSID>

    • Oracle listener resource
      LISTENER_<SubApplicationName>_<ListenerName>

    These resource names have the following convention and rules.

    • Characters per resource name must be up to 39 characters.

    • “ORACLE_” and “LISTENER_” are fixed words.

    Note

    If you create and register an Oracle ASM instance resource, refer to "2.4.2 Oracle ASM (Automatic Storage Management)".

    Example

    If a shared server configuration or dynamic service information is used, specify “Listener” for the StartPriority attribute.

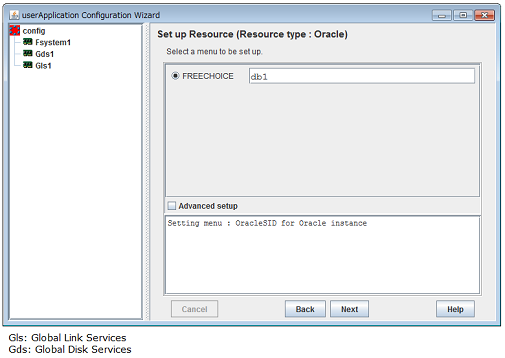

  4. Set up the Oracle instance as follows:

    Enter ORACLE_SID.

  5. Oracle instance settings

    To change the settings, select setting item and click “Next” button.
    To change the advanced settings, check “Advanced setup”.

    The settings for Oracle instance resource are as follows:

    Attributes

    Description

    OracleSID

    ORACLE_SID

    It can contain the following characters. However, the character string must not start with the hyphen.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-+

    OracleUser

    • Oracle instance resource, Oracle ASM instance resource(Oracle Database 10g R2/11g R1)
      - Operating system user which belongs to OSDBA group. (refer to “Oracle User” of “2.2.2 Oracle Database Software Installation and Configuration”.)

    • Oracle ASM instance resource(Oracle Database 11g R2/12c R1)
      - Grid user

    It can contain the following characters. However, the character string must not start with the hyphen.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-

    StartTimeout

    Timeout (sec) duration of Oracle instance startup.
    Default: 600 (300 - 86400)

    StopTimeout

    Timeout (sec) duration of Oracle instance stop.
    Default: 180 (60 - 86400)

    AbortTimeout

    Timeout (sec) duration of forced termination in the event of an Oracle instance stop error.

    Default: 60 (60 - 86400)

    StopModeStop

    Oracle instance stop mode in normal time.
    Default: Immediate mode (abort, immediate, transactional)

    StopModeFail

    Oracle instance stop mode in the event of a failure.
    Default: Abort mode (abort, immediate)

    Interval

    Monitoring interval (sec) of Oracle instance.

    Default: 30 (5 - 86400)

    WatchTimeout

    No response time (sec) during monitoring Oracle instance.

    Default: 300 (30 - 3600)

    REDOApply

    Method of applying redo log to standby database in Oracle Data Guard environment. This setting is enabled with the Oracle instance resource of the standby database.
    Default: NormalApply (ReceiveOnly, NormalApply, RealTimeApply, ReadOnlyOPEN, RealTimeQueryN, RealTimeQueryR)

    This setting is disregarded in the following instance resource.

    • Oracle ASM instance resource

    • Oracle instance resource of primary database

    • Oracle instance resource without Oracle Data Guard

    For details, see "G.2 Oracle Environment Setting".

    UsePDB

    Set yes when you use the PDB of the Oracle database using the multitenant architecture.

    Set no when you do not use the PDB.

    Default: no (yes, no)

    This setting is not used for the Oracle ASM instance resource.

    The advanced settings are as follows. These settings are optional:

    Attributes

    Description

    PreOnlineScript

    Executed before online processing.
    The script must be entered with a full path name. If you are specifying arguments, separate the arguments with "blanks".

    It can contain the following characters.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-+/"`#$^&*(){}[]|;:<,>.?

    PostOnlineScript

    Executed after online processing.
    The script must be entered with a full path name. If you are specifying arguments, separate the arguments with "blanks".

    It can contain the following characters.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-+/"`#$^&*(){}[]|;:<,>.?

    PreOfflineScript

    Executed before offline processing.
    The script must be entered with a full path name. If you are specifying arguments, separate the arguments with "blanks".

    It can contain the following characters.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-+/"`#$^&*(){}[]|;:<,>.?

    PostOfflineScript

    Executed after offline processing.
    The script must be entered with a full path name. If you are specifying arguments, separate the arguments with "blanks".

    It can contain the following characters.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-+/"`#$^&*(){}[]|;:<,>.?

    FaultScript

    Executed when a fault occurs.
    The script must be entered with a full path name. If you are specifying arguments, separate the arguments with "blanks".

    It can contain the following characters.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-+/"`#$^&*(){}[]|;:<,>.?

    Flags

    NullDetector
    (D)

    If you do not want to monitor the resource, select this flag "NullDetector(D)".

    Default: "NullDetector(D)" is not selected.

    AutoRecover
    (A)

    If you want to restart the resource before failover when a resource failure occurs, select this flag "AutoRecover(A)".

    Default: "AutoRecover(A)" is not selected.

    MonitorOnly
    (M)

    If you do not want to generate a failover when a resource failure occurs, select this flag "MonitorOnly(N)".

    Default: "MonitorOnly(N)" is not selected.

    Information

    • For details about Scripts, see “2.4.1 Oracle resource Online/Offline Script”.

    • For details about Flags, see “9 Appendix - Attributes” of the “PRIMECLUSTER RMS Configuration and Administration Guide”.

    • The following value is used for the timeout values (sec) of PreOnlineScript, PostOnlineScript, PreOfflineScript, PostOfflineScript and FaultScript.

      StartTimeout + StopTimeout + AbortTimeout + 10

    Note

    • If NullDetector is enabled, the AutoRecover and MonitorOnly attribute will automatically be disabled.

    • MonitorOnly can be enabled in the following cases:

      • One resource of “Instance” type and one resource of “Listener” type exist, and StartPriority is set to “Same”.
        In this case, MonitorOnly only for the one of them can be enabled.

      • More than one resources of “Instance” type exist.
        In this case, MonitorOnly for the one of them cannot be enabled, but all of the others can be enabled.

    • Calculate StartTimeout based on the time measured in "2.2.6 Oracle database Creation and Setting".

      <UsePDB is no>
Time of "startup"+60 seconds

<UsePDB is yes>
Time of "startup"+Time of "alter pluggable database all open;"+60 seconds

      Set the value when this time is larger than default value 600. Otherwise, set default value 600.

    • Calculate StopTimeout based on the time measured in "2.2.6 Oracle database Creation and Setting".

      Time of "shutdown StopModeStop"+60 seconds
*When StopModeStop is not immediate, measure the time of StopModeStop.

      Set the value when this time is larger than default value 180. Otherwise, set default value 180.

    • Calculate AbortTimeout based on the time measured in "2.2.6 Oracle database Creation and Setting".

      <StopModeFail is immediate>
Time of "shutdown immediate"+60 seconds

<StopModeFail is abort>
60 seconds

      Set the value when this time is larger than default value 60. Otherwise, set default value 60.

    • Flags=<Abbreviation> indicates that the flag attribute is enabled.

  6. Set up the Oracle listener as follows:

    Enter the listener name.

  7. Oracle listener settings

    To change the settings, select setting item and click “Next” button.
    To change the advanced settings, check “Advanced setup”.

    The settings for Oracle listener resource are as follows:

    Attributes

    Description

    ListenerName

    Listener name

    It can contain the following characters. However, the character string must not start with the hyphen.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-

    OracleUser

    • Oracle listener resource(Oracle Database 10g R2/11g R1), Oracle listener resource(Oracle ASM is not used with Oracle Database 11g R2/12c R1)
      - Operating system user for Listener control.

    • Oracle listener resource(Oracle ASM is used with Oracle Database 11g R2/12c R1)
      - Grid user

    It can contain the following characters. However, the character string must not start with the hyphen.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-

    StartTimeout

    Timeout (sec) duration of Oracle listener startup.
    Default: 180 (120 - 86400)

    StopTimeout

    Timeout (sec) duration of Oracle listener stop.
    Default: 60 (60 - 86400)

    Interval

    Monitoring interval (sec) of Oracle listener.
    Default: 30 (5 - 86400)

    WatchTimeout

    No response time (sec) during monitoring Oracle listener.
    Default: 300 (30 - 3600)

    The advanced settings are as follows. These settings are optional:

    Attributes

    Description

    TNSName

    Network service for listener monitoring
    Execute the tnsping command to monitor the Oracle listener when TNSName is set (tnsnames.ora). If the TNSName is omitted, process monitoring of the Oracle listener will only be performed.

    It can contain the following characters. However, the character string must not start with the hyphen.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-.

    PreOnlineScript

    Executed before online processing.
    The script must be entered with a full path name. If you are specifying arguments, separate the arguments with "blanks".

    It can contain the following characters.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-+/"`#$^&*(){}[]|;:<,>.?

    PostOnlineScript

    Executed after online processing.
    The script must be entered with a full path name. If you are specifying arguments, separate the arguments with "blanks".

    It can contain the following characters.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-+/"`#$^&*(){}[]|;:<,>.?

    PreOfflineScript

    Executed before offline processing.
    The script must be entered with a full path name. If you are specifying arguments, separate the arguments with "blanks".

    It can contain the following characters.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-+/"`#$^&*(){}[]|;:<,>.?

    PostOfflineScript

    Executed after offline processing.
    The script must be entered with a full path name. If you are specifying arguments, separate the arguments with "blanks".

    It can contain the following characters.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-+/"`#$^&*(){}[]|;:<,>.?

    FaultScript

    Executed when a fault occurs.
    The script must be entered with a full path name. If you are specifying arguments, separate the arguments with "blanks".

    It can contain the following characters.

    • 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz_-+/"`#$^&*(){}[]|;:<,>.?

    Flags

    NullDetector
    (D)

    If you do not want to monitor the resource, select this flag "NullDetector(D)".

    Default: "NullDetector(D)" is not selected.

    AutoRecover
    (A)

    If you want to restart the resource before failover when a resource failure occurs, select this flag "AutoRecover(A)".

    Default: "AutoRecover(A)" is selected.

    MonitorOnly
    (M)

    If you do not want to generate a failover when a resource failure occurs, select this flag "MonitorOnly(N)".

    Default: "MonitorOnly(N)" is not selected.

    Information

    • For details about Scripts, see “2.4.1 Oracle resource Online/Offline Script”.

    • For details about Flags, see “9 Appendix - Attributes” of the “PRIMECLUSTER RMS Configuration and Administration Guide”.

    • The following value is used for the timeout values (sec) of PreOnlineScript, PostOnlineScript, PreOfflineScript, PostOfflineScript and FaultScript.

      StartTimeout + StopTimeout + 10

    Note

    • If NullDetector is enabled, the AutoRecover and MonitorOnly attribute will automatically be disabled.

    • MonitorOnly can be enabled in the following cases:

      • One resource of “Instance” type and one resource of “Listener” type exist, and StartPriority is set to “Same”.
        In this case, MonitorOnly only for the one of them can be enabled.

      • More than one resources of “Listener” type exist.
        In this case, MonitorOnly for the one of them cannot be enabled, but all of the others can be enabled.

    • Flags=<Abbreviation> indicates that the flag attribute is enabled.

  8. Save the settings by selecting “SAVE+EXIT”.
    Check that the Oracle resource is set then save the settings by selecting SAVE+EXIT.

Information

After set up userApplication, the settings in this section can be confirmed with clorainfo -c command. See “4.6 clorainfo - Display Resource Configuration and Monitoring Status” for details.

2.2.7.3 Other Resource Creation

If you have any other required resources, create them.

Information

Other resources (ex. Procedure resource, resource concerning backup software) should be registered here.

For details of them, refer to the each manual. (For Procedure resource, refer to “PRIMECLUSTER Installation and Administration Guide”.)

2.2.7.4 userApplication Creation

Select “Create userApplication” in the “userApplication Configuration” menu to create userApplication including the resources created in “2.2.7.2 Oracle Resource Creation” and “2.2.7.3 Other Resource Creation”.
For further details of the attributes of userApplication, refer to “2.2.3 userApplication Creation”.

Note

HELP description is common to GUI and CUI, so a part of them includes a description about CUI.

2.2.7.5 Other userApplication Creation

If you have any other required userApplications at "2.2.7.4 userApplication Creation", create them using the userApplication Configuration Wizard.

2.2.7.6 Configuration-Generate and Configuration-Activate

Check the set contents and then generate and activate the configuration. The image screens after activation are as follows:

PreviousNext
Copyright FUJITSU LIMITED 2017
