G.3.7 For Deploying Firewalls and Server Load Balancers (IPCOM EX IN Series)

The default model configuration assumed by a sample script is given below:

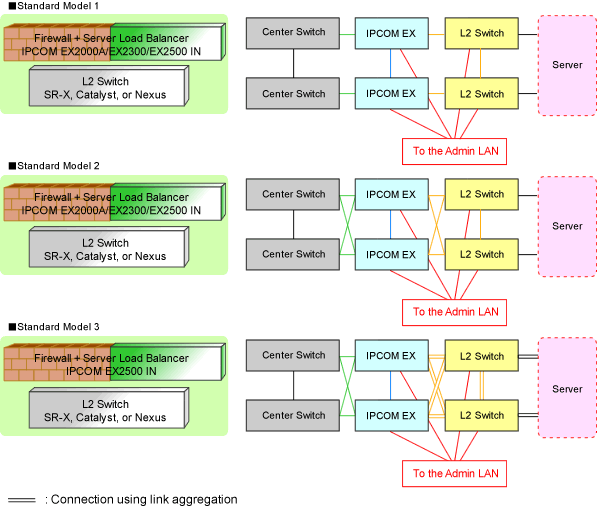

Figure G.6 Standard Model Configurations of Sample Scripts (Firewall and Server Load Balancer: IPCOM EX IN Series)

When a single IPCOM EX IN series is used as both a firewall and server load balancer for tier models in a system, firewall rulesets are used together with the server load balancer rulesets.

Listed below are sample ruleset names provided by Resource Orchestrator:

For Deploying the IPCOM EX IN Series as Server Load Balancers

SLB_with_SSL-ACC--IPCOM1

For systems that use the IPCOM EX IN series for server load balancers (with an SSL accelerator).

Adaptive model configuration: all standard models

LAN Ports to be Used

'The port is determined by the sample script (FW_of_3Tier_sys_inc_SLB--IPCOMn).

SLB_without_SSL-ACC--IPCOM1

For systems that use the IPCOM EX IN series for server load balancers (without an SSL accelerator).

Adaptive model configuration: all standard models

LAN Ports to be Used

'The port is determined by the sample script (FW_of_3Tier_sys_inc_SLB--IPCOMn).

n: Number between 1 and 3

For deploying the IPCOM EX IN series as firewalls

FW_of_3Tier_sys_inc_SLB--IPCOM1

For the systems that use IPCOMEX2000A_IN/2300_IN (Non-Redundant LAN Channels).

Adaptive model configuration: Standard Model 1

LAN Ports to be Used

• For Public LANs (Center Switch Side)

  LAN0.0

• For Public LANs (L2 Switch Side)

  LAN0.1

• For the Admin LAN

  LAN0.3

• For Unit Synchronization

  LAN0.2

FW_of_3Tier_sys_inc_SLB--IPCOM2

For the systems that use IPCOMEX2000A_IN/2300_IN Redundant LAN Channels).

Adaptive model configuration: Standard Model 2

LAN Ports to be Used

• For Public LANs (Center Switch Side)

  bnd0: Redundant LAN Channels

  • LAN0.0

  • LAN1.0

• For Public LANs (L2 Switch Side)

  bnd1: Redundant LAN Channels

  • LAN0.1

  • LAN1.1

• For the Admin LAN

  LAN0.3

• For Unit Synchronization

  LAN1.3

FW_of_3Tier_sys_inc_SLB--IPCOM3

For systems that use an IPCOMEX2500_IN

Adaptive model configuration: Standard Model 3

LAN Ports to be Used

• For Public LANs (Center Switch Side)

  bnd0: Redundant LAN Channels

  • LAN0.0

  • LAN1.0

• For Public LANs (L2 Switch Side)

  bnd1: Redundant LAN Channels

  • LAN0.1 and LAN0.2

  • LAN1.1 and LAN1.2

  Connection using Link aggregation

• For the Admin LAN

  LAN0.3

• For Unit Synchronization

  LAN1.3
