G.3.8 For Deploying Firewalls and Server Load Balancers (IPCOM VA LS Series)

The default model configuration assumed by a sample script is given below:

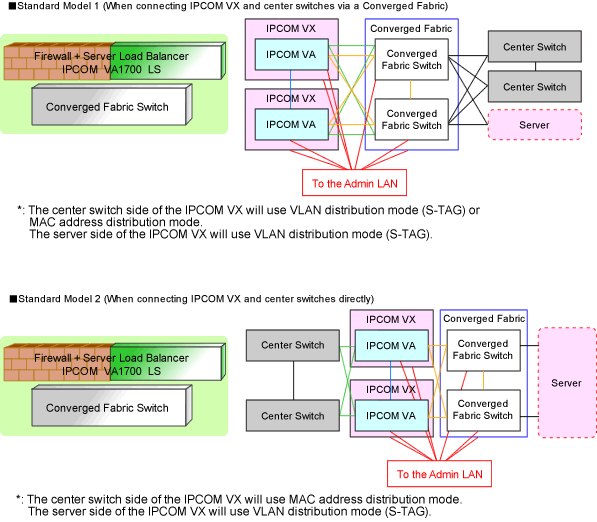

Figure G.7 Standard Model Configurations of Sample Scripts (Firewall and Server Load Balancer: IPCOM VA LS Series)

When a single IPCOM VA LS series is used as both a firewall and server load balancer for tier models in a system, firewall rulesets are used together with the server load balancer rulesets.

Listed below are sample ruleset names provided by Resource Orchestrator:

For deploying the IPCOM VA LS series as server load balancers

SLB_with_SSL-ACC--IPCOMVALS1

For systems that use the IPCOM VA LS series for server load balancers (with an SSL accelerator)

Adaptive model configuration: all standard models

LAN Ports to be Used: The port is determined by the sample script (firewall_inc_SLB--IPCOMVALS2).

SLB_without_SSL-ACC--IPCOMVALS1

For systems that use the IPCOM VA LS series for server load balancers (without an SSL accelerator)

Adaptive model configuration: all standard models

LAN Ports to be Used: The port is determined by the sample script (firewall_inc_SLB--IPCOMVALS2).

For deploying the IPCOM VA LS series as firewalls

firewall_inc_SLB--IPCOMVALS2

For the systems that use IPCOMVA1700LS (Redundant LAN Channels)

Adaptive model configuration: all standard models

LAN Ports to be Used

For Public LANs (Center Switch Side)
bnd0: Redundant LAN Channels
- LAN0.0
- LAN1.0
For Public LANs (Server Side)
bnd1: Redundant LAN Channels
- LAN0.1
- LAN1.1
For the Admin LAN
LAN0.3
For Unit Synchronization
LAN1.3
