ServerView Resource Orchestrator Cloud Edition V3.2.0 Design Guide

G.3.6 For Deploying Firewalls (ASA 5500 Series)

The default model configuration assumed by a sample script is given below:

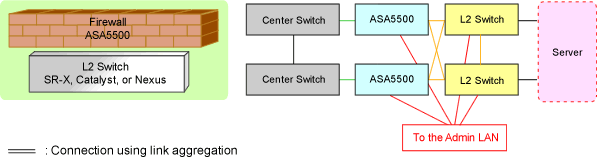

Figure G.5 Standard Model Configurations of Sample Scripts (ASA 5500 Series)

Listed below are sample ruleset names provided by Resource Orchestrator:

For ASA 5500

3Tier_system_firewall--ASA1

For the systems that use ASA 5510 as an ASA 5500 series model for three-tier models

LAN Ports to be Used

• For Public LANs (Center Switch Side)

  ethernet0/0

• For Public LANs (L2 Switch Side)

  redundant1: Redundant LAN Channels

  • ethernet0/1

  • ethernet0/2

• For the Admin LAN

  management0/0

• For Unit Synchronization

  ethernet0/3

3Tier_system_firewall--ASA2

For the systems that use ASA 5520/5540/5550 as an ASA 5500 series model for three-tier models

LAN Ports to be Used

• For Public LANs (Center Switch Side)

  gigabitethernet0/0

• For Public LANs (L2 Switch Side)

  redundant1: Redundant LAN Channels

  • gigabitethernet0/1

  • gigabitethernet0/2

• For the Admin LAN

  management0/0

• For Unit Synchronization

  gigabitethernet0/3

3Tier_system_firewall--ASA3

For the systems that use ASA 5580 as an ASA 5500 series model for three-tier models

LAN Ports to be Used

• For Public LANs (Center Switch Side)

  gigabitethernet3/0

• For Public LANs (L2 Switch Side)

  redundant1: Redundant LAN Channels

  • gigabitethernet3/1

  • gigabitethernet3/2

• For the Admin LAN

  management0/0

• For Unit Synchronization

  gigabitethernet3/3
