ServerView Resource Orchestrator Cloud Edition V3.2.0 Design Guide

G.3.5 For Deploying Firewalls (NS Appliance)

The default model configuration assumed by a sample script is given below:

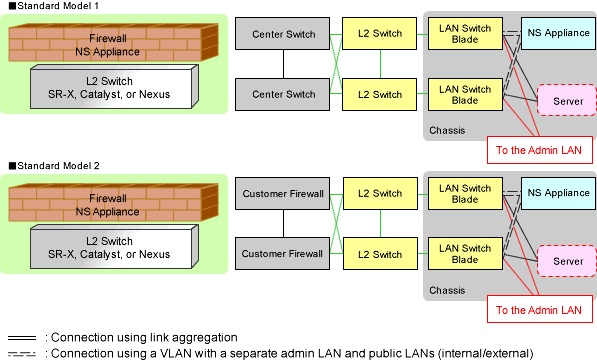

Figure G.4 Standard Model Configurations of Sample Scripts (NSAppliance)

Listed below are sample ruleset names provided by Resource Orchestrator:

For NS Appliance

FW_of_3Tier_sys--NSAppliance1

For a system that uses NS Appliance with a 3Tier model

Adaptive model configuration: Standard Model 2

LAN Ports to be Used

• For Public LANs (Customer Firewall Side)

  LAN0.0

  Point

  It is necessary to configure the VLAN interface of the arbitrary VLAN ID for LAN0.0 beforehand.

• For Public LANs (L2 Switch Side)

  LAN0.1

• For the Admin LAN

  LAN0.3

FW_of_3Tier_sys--NSAppliance2

For a system that uses NS Appliance with a 3Tier model

Adaptive model configuration: Standard Model 1

LAN Ports to be Used

• For Public LANs (Center Switch Side)

  LAN0.0

  Point

  When using the sample scripts without making any changes, it is necessary to configure the VLAN interface of the VLAN ID for LAN0.0 as "100" beforehand.

• For Public LANs (L2 Switch Side)

  LAN0.1

• For the Admin LAN

  LAN0.3
