ServerView Resource Orchestrator Cloud Edition V3.2.0 Design Guide

G.3.4 For Deploying Firewalls (IPCOM VA Series)

The default model configuration assumed by a sample script is given below:

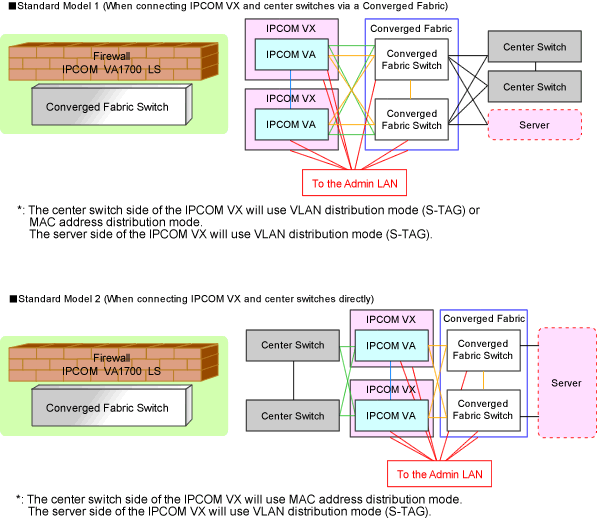

Figure G.3 Standard Model Configurations of Sample Scripts (IPCOM VA Series)

Listed below are sample ruleset names provided by Resource Orchestrator:

For IPCOM VA LS

3Tier_sys_firewall--IPCOMVALS2

This is used for 3 tier models when using an IPCOM VA LS series as a firewall
For systems that use an IPCOMVA1700_LS

Adaptive model configuration: all standard models

LAN Ports to be Used

• For Public LANs (Center Switch Side)

  bnd0: Redundant LAN Channels

  • LAN0.0

  • LAN1.0

• For Public LANs (Server Side)

  bnd1: Redundant LAN Channels

  • LAN0.1

  • LAN1.1

• For the Admin LAN

  LAN0.3

• For Unit Synchronization

  LAN1.3
