11.2.5 Network View (Logical List)

This section describes the information that is displayed in a logical list of the network view.

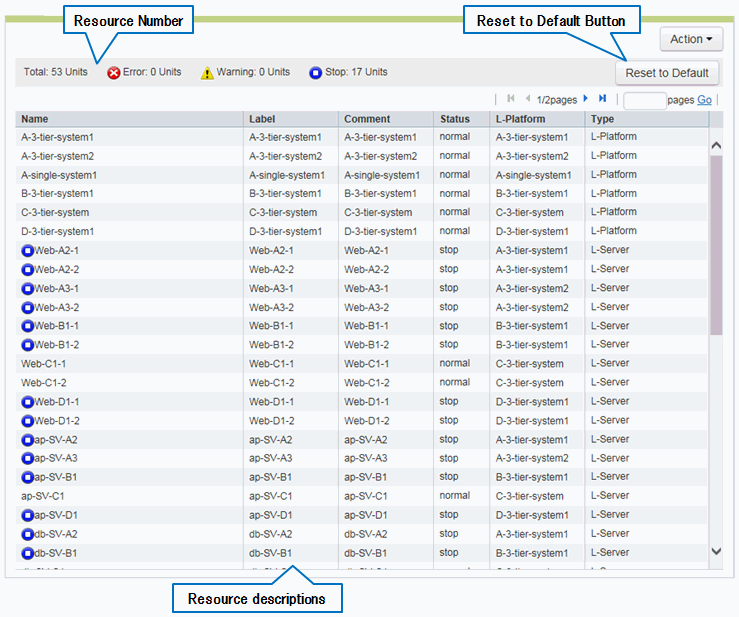

Figure 11.12 Display Example of Network View (Logical List)

Resource Number: Displays the total number of resources displayed in a logical list as well as the number of each status (Error/Warning/Stop).

Resource Descriptions

Displays the resource information in a table format.
An explanation of the items in the displayed table is given below.

Table 11.2 Items Displayed in the Network View (Logical List)
Display Item	Description	Example
Name (*1)	The name of the resource is displayed.	Web-A2-1
Label	The label displayed on the [Resource] tab of the ROR console is displayed. When the label is not configured, "-" is displayed.	Web1-1
Comment	The comment displayed on the [Resource] tab of the ROR console is displayed. When the comment is not configured, "-" is displayed.	Web1-1
Device status	The status of the resource is displayed.	stop
L-Platform	The name of the L-Platform on which the resource is deployed is displayed.	A-3tier-system1
Category	One of the following is displayed as the resource type: For L-Platforms L-Platform For L-Servers L-Server For network resources Network Resource For firewalls Firewall For SLBs SLB	L-Server

*1: When the resource status is "Error", "Warning", or "Stop", or when a "physical-logical relationship icon" is displayed for the resource, the corresponding status icon or the physical-logical relationship icon is displayed for that resource.

Information

Clicking a column label in the logical list will sort the displayed resources in ascending or descending order.

However, the lines of the resources for which "-" is displayed under the clicked column label are always displayed in the lower part of the list.

[Reset to Default] Button: Returns the displayed logical list to its initial state.
