The NetworkViewer window consists of the tool bar, the network view, and the utility panel.

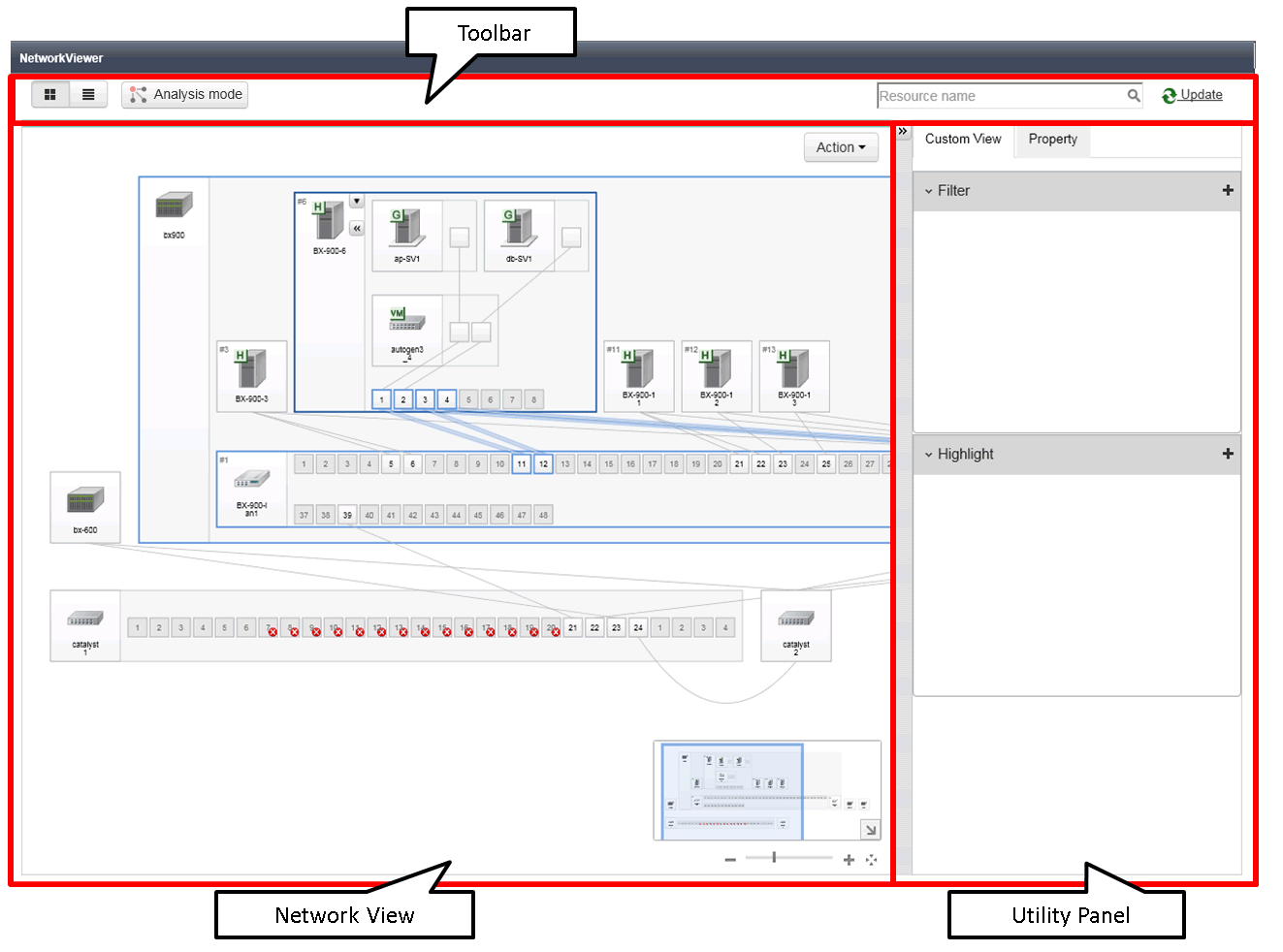

Figure 13.2 NetworkViewer Layout
The tool bar can be used to operate the network view.

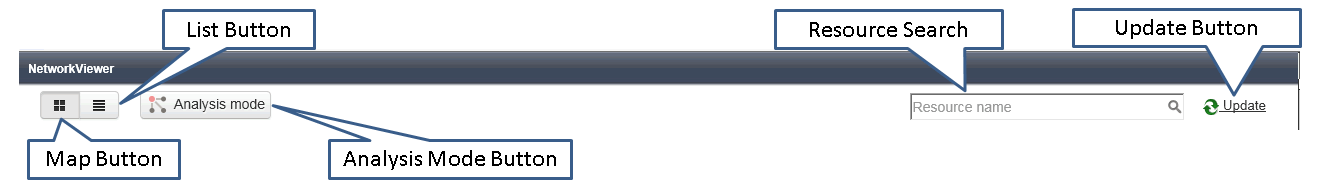

Figure 13.3 Toolbar
This section explains the layout of the tool bar.
Switches from the network view to the map view.
Switches from the network view to the list view.
For details on the list view, refer to "13.2.3 Network View (Physical List)".
Starts the Analysis Mode window.
For details on the Analysis Mode window, refer to "13.2.6 Analysis Mode".
The area retrieved by the resource name.
Update NetworkViewer to show the latest status.
A view to display network configurations or resource lists.
The network view can be displayed in a map view or a list view.
It can be displayed in the map format and the list format at the same time.
Physical Map
Shows the statuses of registered resources and the network links between them.
For details, refer to "13.2.2 Network View (Physical Map)".
Physical List
Shows the statuses of registered resources and parent resources in a list format.
For details, refer to "13.2.3 Network View (Physical List)".
For the map view, the window display location can be scrolled by dragging and dropping.

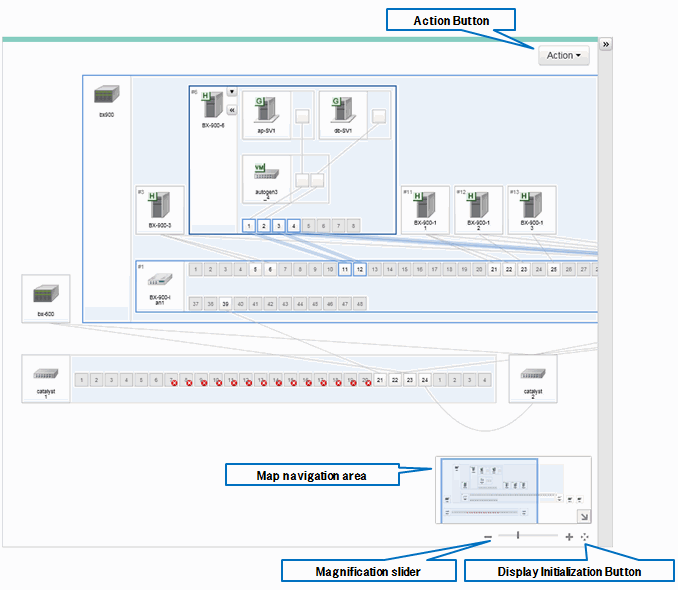

Figure 13.4 Network View
This section explains the Network view's layout.
Analysis Mode
This button performs operation of the Analysis Mode.
For details, refer to "13.2.6 Analysis Mode".
Export View Information
This button outputs the network view information as a CSV file.
All areas are displayed, including those that cannot be displayed by the network view.
The arrow button located in the lower right of the map navigation area enables opening and closing of the map navigation area.
By dropping and dragging the display frame in the map navigation area, the display location of the network view can be scrolled in coordination with the frame.
Maximizes or minimizes the network view.
The button that returns a window that has been moved to its default position.
This view is the window to display the detailed information of the condition settings of network view display or resources.

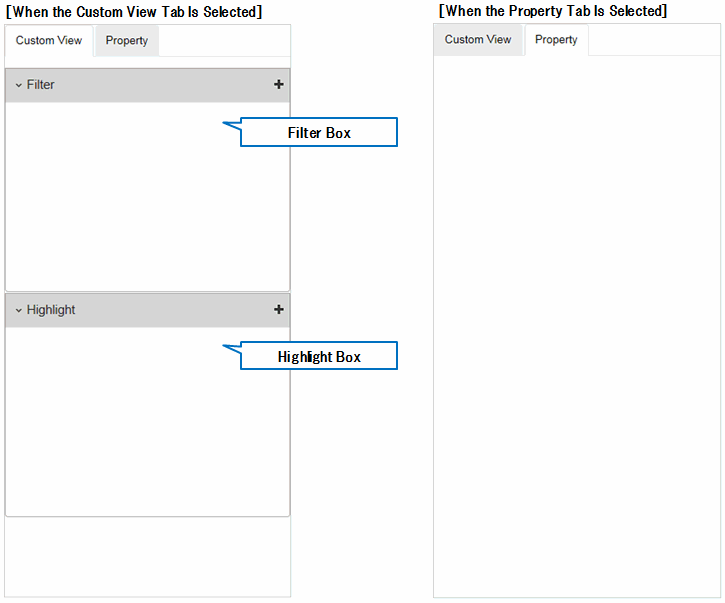

Figure 13.5 Utility Panel
Use the custom view to filter and highlight resources.
For details, refer to "13.2.4 Utility Panel (Custom View)".
Resource details are displayed.
For details, refer to "13.2.5 Utility Panel (Property)".
