13.2.3 Network View (Physical List)

This section describes the information that is displayed in a physical map of the network view.

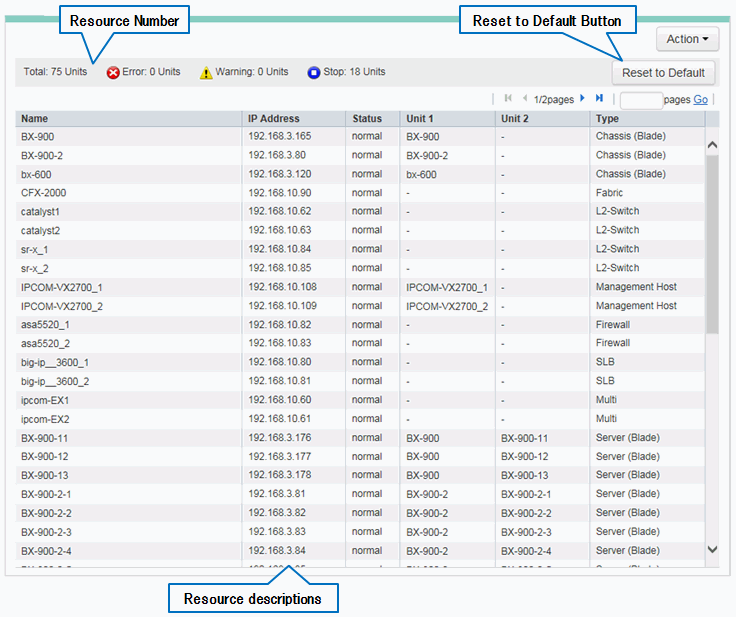

Figure 13.8 Display Example of Network View (Physical List)

Resource Number: Displays the total number of resources displayed in a physical list as well as the number of each status (Error/Warning/Stop).

Resource Descriptions

Displays the resource information in a table format.
An explanation of the items in the displayed table is given below.

Table 13.1 Items Displayed in the Network View (Physical List)
Display Item	Description	Example
Name	The name of the resource is displayed.	bx600-1
IP address	The admin LAN IP address of the resource is displayed. When the resource does not have an admin LAN IP address, "-" is displayed.	192.168.3.121
Device status	The status of the resource is displayed.	normal
Unit1 (*1)	The name of the unit in which the resource is stored is displayed. When the resource is a standalone physical device, "-" is displayed.	bx600
Unit 2 (*1)	The name of the unit in which the resource is stored is displayed. Displayed for indicating the chassis that exists in [Unit1]. When the resource is a standalone physical device or when the resource is stored in [Unit1], "-" is displayed.	bx600-1
Category	One of the following is displayed as the resource type: For chassis Chassis (Blade) For blade servers Server (Blade) For LAN switch blades L2-Switch (Blade) For VM guests VM Guest For virtual switches VM Switch For rack mount servers Server (Rack) For chassis (PRIMEQUEST) Chassis (Partition) For servers (PRIMEQUEST) Server (Partition) For L2 switches L2-Switch For firewalls Firewall For SLBs SLB For integrated network devices Multi For Ethernet fabric devices Fabric For management hosts (IPCOM VX) Management Host For firewalls (virtual appliances) Firewall (Virtual) For server load balancers (virtual appliances) SLB (Virtual) For integrated network devices (virtual appliances) Multi(Virtual)	Server (Blade)

*1: For the resources that form a three-tier system (Unit1->Unit2->Resource), corresponding resource name is displayed in the "Name", "Unit1", and "Unit2" fields. For the resources that form a two-tier system (Unit1->Resource), corresponding name is displayed in the "Name" and "Unit1" fields and "-" is displayed in the "Unit2" field.

Example

When displaying a VM guest (in a three-tier system)
The VM guest name, chassis name, and the VM host name are displayed in the "Name", "Unit1", and "Unit2" fields, respectively.

When displaying a blade server (in a two-tier system)
The blade server name, the chassis name, and "-" are displayed in the "Name", "Unit1", and "Unit2" fields, respectively.

Information

Clicking a column label in the physical list will sort the displayed resources in ascending or descending order.

However, the lines of the resources for which "-" is displayed under the clicked column label are always displayed in the lower part of the list.

[Reset to Default] Button: Returns the displayed physical list to its initial state.
