This section explains how to uninstall Interstage Application Server.
Note
Make sure that no other products are using Interstage Application Server before uninstalling it.
For the Windows and Linux versions, refer to Readme for details on how to uninstall Interstage Application Server. For the Solaris version, refer to the Interstage Application Server Installation Guide.
Uninstalling from Windows servers
Use the following procedure to uninstall Interstage Application Server.
Log on to the computer from which Interstage Application Server is to be uninstalled.
Log on as a user belonging to the local Administrators group.
If the installation environment is a domain controller, log on as a user belonging to the built-in local Administrators group.
Select Uninstall (middleware) from Start/Apps >> Fujitsu.
Select "- Interstage Application Server Enterprise Edition" in the Software Name column, and click Remove.

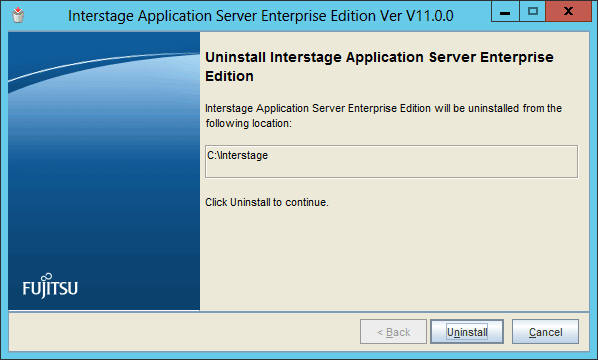

The following window is displayed, so verify that the product name is correct. If it is correct, click Uninstall.

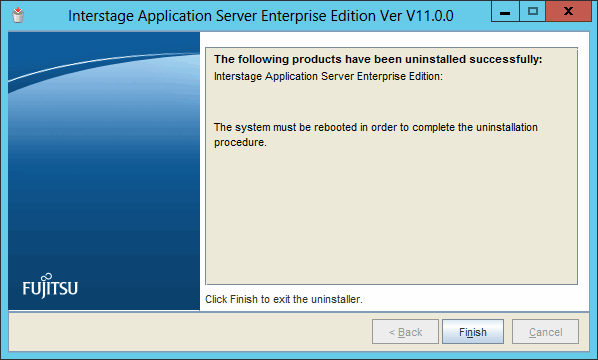

The following window is displayed when uninstallation is complete. To change the computer to a normal state after uninstallation, you need to restart the computer. To do so, close the Interstage uninstaller and the Uninstall (middleware) window, and then restart the computer.
Point
"Uninstall (middleware)" is a common tool that is used by Fujitsu middleware products. In addition to Systemwalker Single Sign-On Server product information, information for Fujitsu middleware products is managed by this tool as well. Do not uninstall the tool except in the case that it must be uninstalled. Refer to "Uninstall (middleware)" in the Interstage Application Server Installation Guide for the methods for uninstallation and reinstallation when it was accidentally uninstalled.
After uninstallation, the files below will remain.
If uninstallation ended normally, the files below will no longer be needed, so you can manually delete them as necessary:
%SystemRoot%\f4amswidmgsv.log
%SystemRoot%\f4amswidmgsv(old).log
%SystemRoot%\f4amissetup.log
In the list above, %SystemRoot% stands for the path in the SystemRoot environment variable.
Uninstalling from Solaris servers
Use the following procedure to uninstall Interstage Application Server.
Note
The CORBA Service (FSUNod) included in Interstage is also used by the following products. If the CORBA Service is being used by other products, specify individual packages rather than specifying "all" in step 6, and do not select the FJSVod package.
Systemwalker Centric Manager Operation Management Server
If the CORBA Service still remains after Interstage has been uninstalled, it can be uninstalled using the following procedure.
Check whether any products are using the CORBA Service
Check whether the following product has been installed. If this product has been installed, do not uninstall the CORBA Service.
Systemwalker Centric Manager Operation Management Server
Uninstall the CORBA Service.
Use the pkgrm command to uninstall the CORBA Service.
# pkgrm FSUNod <RETURN> |
The FJSVsmee and FJSVsclr packages are sometimes included with non-Interstage Fujitsu products, such as Systemwalker Centric Manager. If products that include the FJSVsmee and FJSVsclr packages have been installed on the server machine where Interstage is being uninstalled, do not specify "all" in step 6. Instead, specify individual packages but do not select the FJSVsmee and FJSVsclr packages.
Log in as superuser.
Log in as superuser on the server where the Systemwalker Single Sign-On Server is to be uninstalled.
Stop the application server if the CORBA Service is running.
Execute the following command:
# isstop -f |
The isstop command is stored in the following location.
[Command location]
OS | Location |
|---|---|
Solaris | /opt/FSUNtd/bin |
Refer to the Interstage Application Server Reference Manual (Command Edition) for details on the isstop command.
Stop the service for using the Interstage Management Console if it is running.
Execute the following command:
# ismngconsolestop |
The ismngconsolestop command is stored in the following location.
[Command location]
OS | Location |
|---|---|
Solaris | /opt/FJSVisgui/bin |
Refer to the Interstage Application Server Reference Manual (Command Edition) for details on the ismngconsolestop command.
Start the uninstaller.
Execute the uninstallation command (uninstall.sh) that is dedicated for this software to start the uninstallation.
The method for starting the uninstaller is as follows:
# /opt/FJSVisas/uninstall/uninstall.sh |
Select which packages to uninstall.
In the screen for selecting packages to uninstall, enter "all" and then press the <Enter> key.
+----------------------------------------------------------+
| Interstage Application Server Enterprise Edition V11.0.0 |
| |
| Copyright 1995-2012 FUJITSU LIMITED |
+----------------------------------------------------------+
Packages:
1 FJSVisje6 Interstage Java EE 6 (for application development)
* 2 FJSVjssrc Interstage JServlet Session Registry Client
* 3 FJSVjssrs Interstage JServlet Session Registry Server
* 4 FJSVmqdex MessageQueueDirector extension
* 5 FJSVmqd MessageQueueDirector base
* 6 FJSVisspl Interstage Sample Integration
* 7 FJSVisgui Interstage Management Console
* 8 FJSVsvmon Web Service Monitor
* 9 FJSVjs5 Interstage JServlet (Tomcat 5.5 based servlet service)
* 10 FJSVj2eer Interstage J2EE RI Resource
* 11 FJSVj2ee Interstage J2EE Common Resource
* 12 FJSVjms Interstage JMS
* 13 FJSVejb Interstage EJB Service
* 14 FJSVisjmx Interstage JMX Service
* 15 FJSVapcst Interstage Apcoordinator - Struts
* 16 FJSVwebc Interstage Apcoordinator - Webcoordinator
* 17 FJSVbcco Interstage Apcoordinator - Bccoordinator
* 18 FJSVihs Interstage HTTP Server
* 19 FJSVes ObjectDirector/EventService
* 20 FJSVjs2su Interstage JServlet (OperationManagement)
* 21 FJSVssofs Interstage Single Sign-on Federation Service
* 22 FJSVfsvl Single Sign-on Federation Service Library Package
* 23 FJSVssocm Interstage Single Sign-on Common Library
* 24 FJSVssoaz Interstage Single Sign-on Business server
* 25 FJSVssoac Interstage Single Sign-on Authentication server
* 26 FJSVssosv Interstage Single Sign-on Repository server
* 27 FJSVporb ObjectDirector[Portable-ORB]
* 28 FSUNots ObjectTransactionService
* 29 FSUNod ObjectDirector
* 30 FSUNtd TransactionDirector
* 31 FJSVjdk7 Fujitsu Java Development Kit 7
* 32 FJSVxmlpc Fujitsu XML Processor
* 33 FJSVisscs Interstage Secure Communication Service
* 34 FSUNssll Secure Socket option package
* 35 FJSVsmee S/MIME & EE Certificate Management Package
* 36 FJSVsclr Securecrypto Library RunTime
* 37 FJSVena Interstage data store for enterprise content knowledge and document management
* 38 FJSVirep Interstage Directory Service
* 39 FJSVirepc Interstage Directory Service Software Development Kit
40 FJSVisjee Interstage Java EE
* 41 FJSVjdk6 Fujitsu Java Development Kit 6
* 42 FSUNextp EXtensional Transaction Processing Monitor
* 43 FJSVtdis The operational commands for Interstage
* 44 FJSVisas Interstage Application Server Management Function
* 45 FJSVisco Interstage Collective Information Collection FunctionA message will be displayed confirming whether to continue with the uninstallation processing.
To continue with the uninstallation, enter "y". Otherwise enter "q" to cancel the uninstallation.
Uninstall information:
Uninstallation packages:
FJSVjssrc FJSVjssrs FJSVmqdex FJSVmqd FJSVisspl FJSVisgui FJSVsvmon FJSVjs5 FJSVj2eer FJSVj2ee FJSVjms FJSVejb FJSVisjmx FJSVapcst FJSVwebc FJSVbcco FJSVihs FJSVes FJSVjs2su FJSVssofs FJSVfsvl FJSVssocm FJSVssoaz FJSVssoac FJSVssosv FJSVporb FSUNots FSUNod FSUNtd FJSVjdk7 FJSVxmlpc FJSVisscs FSUNssll FJSVsmee FJSVsclr FJSVena FJSVirep FJSVirepc FJSVjdk6 FSUNextp FJSVtdis FJSVisas FJSVisco
Do you want to proceed with the uninstallation ? [y,q]:The uninstallation process will be terminated.
The following message will be displayed indicating that the uninstallation has completed.
Uninstallation of "Interstage Application Server" has ended. |
Restart the system.
The following example shows the command for restarting the system.
Example:
# cd / # /usr/sbin/shutdown -y -i6 -g0 |
Uninstalling from Linux servers
Use the following procedure to uninstall Interstage Application Server.
Note
The CORBA Service (FJSVod) included in Interstage is also used by the following product. If the CORBA Service is being used by other products, specify individual packages rather than specifying "all" in step 6, and do not select the FJSVod package.
Systemwalker Centric Manager Operation Management Server
If the CORBA Service still remains after Interstage has been uninstalled, it can be uninstalled using the following procedure.
Check whether any products are using the CORBA Service.
Check whether the following product has been installed. If this product has been installed, do not uninstall the CORBA Service.
Systemwalker Centric Manager Operation Management Server
Uninstall the CORBA Service.
Use the rpm command to uninstall the CORBA Service.
# rpm -e --nodeps FJSVod <RETURN> |
The FJSVsmee and FJSVsclr packages are sometimes included with non-Interstage Fujitsu products, such as Systemwalker Centric Manager. If products that include the FJSVsmee and FJSVsclr packages have been installed on the server machine where Interstage is being uninstalled, do not specify "all" in step 6. Instead, specify individual packages but do not select the FJSVsmee and FJSVsclr packages.
Log in as superuser.
Log in as superuser on the server where the Systemwalker Single Sign-On Server is to be uninstalled.
Stop the application server if the CORBA Service is running. Execute the following command:
# isstop -f |
The isstop command is stored in the following location.
[Command location]
OS | Location |
|---|---|
Linux | /opt/FJSVtd/bin |
Refer to the Interstage Application Server Reference Manual (Command Edition) for details on the isstop command.
Stop the service for using the Interstage Management Console if it is running.
Execute the following command:
# ismngconsolestop |
The ismngconsolestop command is stored in the following location.
[Command location]
OS | Location |
|---|---|
Linux | /opt/FJSVisgui/bin |
Refer to the Interstage Application Server Reference Manual (Command Edition) for details on the ismngconsolestop command.
Start the uninstaller.
Execute the uninstallation command (uninstall.sh) that is dedicated for this software to start the uninstallation.
The method for starting the uninstaller is as follows:
# /opt/FJSVisas/uninstall/uninstall.sh |
Select which packages to uninstall
In the screen for selecting packages to uninstall, enter "all" and then press the <Enter> key.
+----------------------------------------------------------+
| Interstage Application Server Enterprise Edition V11.0.0 |
| |
| Copyright 1995-2012 FUJITSU LIMITED|
+----------------------------------------------------------+
Packages:
1 FJSVisje6 Interstage Java EE 6 (for application development)
* 2 FJSVjssrc Interstage JServlet Session Registry Client
* 3 FJSVjssrs Interstage JServlet Session Registry Server
* 4 FJSVmqd MessageQueueDirector base
* 5 FJSVisspl Interstage Sample Integration
* 6 FJSVisgui Interstage Management Console
* 7 FJSVsvmon Web Service Monitor
* 8 FJSVjs5 Interstage JServlet (Tomcat 5.5 based servlet service)
* 9 FJSVj2eer Interstage J2EE RI Resource
* 10 FJSVj2ee Interstage J2EE Common Resource
* 11 FJSVjms Interstage JMS
* 12 FJSVejb Interstage EJB Service
* 13 FJSVisjmx Interstage JMX Service
* 14 FJSVapcst Interstage Apcoordinator - Struts
* 15 FJSVwebc Interstage Apcoordinator - Webcoordinator
* 16 FJSVbcco Interstage Apcoordinator - Bccoordinator
* 17 FJSVihs Interstage HTTP Server
* 18 FJSVes ObjectDirector/EventService
* 19 FJSVjs2su Interstage JServlet (OperationManagement)
* 20 FJSVssofs Interstage Single Sign-on Federation Service
* 21 FJSVfsvl Single Sign-on Federation Service Library Package
* 22 FJSVssocm Interstage Single Sign-on Common Library
* 23 FJSVssoaz Interstage Single Sign-on Business server
* 24 FJSVssoac Interstage Single Sign-on Authentication server
* 25 FJSVssosv Interstage Single Sign-on Repository server
* 26 FJSVporb ObjectDirector[Portable-ORB]
* 27 FJSVots ObjectTransactionService
* 28 FJSVod ObjectDirector
* 29 FJSVtd TransactionDirector
* 30 FJSVjdk7 Fujitsu Java Development Kit 7
* 31 FJSVxmlpc Fujitsu XML Processor
* 32 FJSVisscs Interstage Secure Communication Service
* 33 FJSVsmee S/MIME & EE Certificate Management Package
* 34 FJSVsclr Securecrypto Library RunTime
* 35 FJSVena Interstage data store for enterprise content knowledge and document management
* 36 FJSVirep Interstage Directory Service
* 37 FJSVirepc Interstage Directory Service Software Development Kit
38 FJSVisjee Interstage Java EE
* 39 FJSVjdk6 Fujitsu Java Development Kit 6
* 40 FJSVextp Transaction Processing Monitor
* 41 FJSVtdis The operational commands for Interstage
* 42 FJSVisas Interstage Application Server Management Function
* 43 FJSVisco Interstage Collective Information Collection Function
Please select packages. When you choose more than one, please separate with ",". [?,??,all,q]:A message will be displayed confirming whether to continue with the uninstallation processing.
To continue with the uninstallation, enter "y". Otherwise enter "q" to cancel the uninstallation.
Uninstall information:
Uninstallation packages:
FJSVjssrc FJSVjssrs FJSVmqd FJSVisspl FJSVisgui FJSVsvmon FJSVjs5 FJSVj2eer FJSVj2ee FJSVjms FJSVejb FJSVisjmx FJSVapcst FJSVwebc FJSVbcco FJSVihs FJSVes FJSVjs2su FJSVssofs FJSVfsvl FJSVssocm FJSVssoaz FJSVssoac FJSVssosv FJSVporb FJSVots FJSVod FJSVtd FJSVjdk7 FJSVxmlpc FJSVisscs FJSVsmee FJSVsclr FJSVena FJSVirep FJSVirepc FJSVjdk6 FJSVextp FJSVtdis FJSVisas FJSVisco
Do you want to proceed with the uninstallation ? [y,q]:The uninstallation process will be terminated.
The following message will be displayed indicating that the uninstallation has completed.
Uninstallation of "Interstage Application Server" has ended. |
Restart the system.
The following example shows the command for restarting the system.
Example:
# cd / # /usr/sbin/shutdown -r now |
