Systemwalker Operation Manager User's Guide

11.1.2 Defining Action Execution Conditions

For actions that are automatically executed at event occurrences by the event monitoring function, their execution conditions can be defined. The execution conditions that can be defined include weekdays, holidays, time, and combinations of those. The execution conditions are defined for each event. This section describes how to specify the action execution conditions.

Procedure

1. Displaying the Monitored Event Table window

   Select Event Monitoring Conditions Definition from the Options menu of the Systemwalker Operation Manager window.

2. Displaying the Action Schedule dialog box

   Select an event by which the action conditions are to be specified in the Monitored Event Table window. Then, select Set Action Execution Conditions from the Actions menu of the Monitored Event Table window (or select Set Action Execution Conditions from the pop-up menu displayed by right-clicking).

3. Defining the action conditions for the event to be monitored

   In the Action Schedule dialog box, define the action conditions for the event to be monitored. After defining, click OK to save the definition.

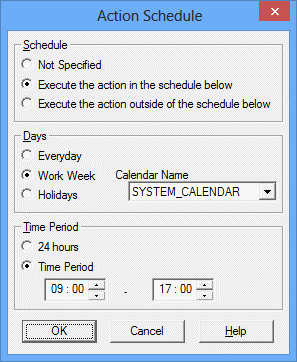

   Figure 11.4 Action Schedule dialog box



   Schedule:

   Specifies the action conditions.

   Not specified:

   Always executes the actions.

   Execute the action in the schedule below:

   Executes actions when matching the specified date and time.

   Execute the action outside of the schedule below:

   Executes actions when not matching the specified date and time.

   Days:

   Specifies the condition range with dates.

   Daily:

   Selects all days as the condition range.

   Work Week:

   Selects weekdays (process dates) as the condition range. The name of the calendar can be selected from Calendar Name. Only weekdays (process dates) in the specified calendar will be targeted as the condition range.

   Holidays:

   Selects holidays as the condition range. The name of the calendar can be selected from Calendar Name. Holidays in the specified calendar will be targeted as the condition range.

   Time Period:

   Specifies the condition range with time span.

   24 hours:

   Selects all time (0:00 - 23:59) as the condition range.

   Time Period:

   Specifies the start and end times of the condition range between 0:00 and 23:59. The specified time span will be the condition range.

Note

The time spans to execute actions do not regard the day change time. A day is from 0:00 to 23:59 regardless of the day change time settings. When the process dates or holidays of the calendar are specified as the execution conditions of actions, the time span for the action execution will be from 0:00 to 23:59 of the specified day.
