Scheduled jobs (jobs that have been registered in the Jobscheduler) can be monitored using either Previous process result sheet of the Monitor Job Net window, or the Job List window.
The configuration of a job net that contains child job nets or linked job nets, for which startup days have been specified, is displayed in the Process flow sheet of the Monitor Job Net window.
The following describes the contents displayed in each window.
Previous process result sheet of the Monitor Job Net window
The Job Flow area in the Previous process result sheet of the Monitor Job Net window indicates the job status using color coding. For the job nets under execution, the current status of the jobs are displayed. For the job nets which are waiting for execution or completed, the completion results of the previous execution are displayed. In the case of restarting, whether job nets are included in the target of startup can be identified. However, when a job net is started for the first time, the configuration of the started jobs is displayed.
If restart point, recovery or execution conditions are specified for the job using the Control information sheet of the Add/Change-Job window, arrows or diamond-shaped symbols are displayed respectively. For child job nets or linked job nets that have the Valid only on startup days setting and are not started up, status frames are displayed as pin-only icons framed by dotted circles.
If animation is enabled, jobs and job nets whose status is "Executing", "Warning" or "Abended" will be shown animated.
Detailed information on the jobs displayed in this window can be browsed using the Monitor-Job window. The Start time, End time, End code and Description as well as the contents of the standard output and the standard error output at the previous execution are displayed in the Previous log sheet of the Monitor-Job window.
For details on the status of jobs, see "14.1.1 Job Status".
Procedure
Displaying the Previous process result sheet of the Monitor Job Net window
Double-click the desired job net in the Job Selection window of the Systemwalker Operation Manager window, or select the desired job net and select Open from the File menu (or select Open from the pop-up menu displayed by right -clicking.
Select Job Net Management from the Tools menu of the Systemwalker Operation Manager window. Double-click the desired job net in the Job Net Management window, or select the desired job net and select Job Net Monitoring from the Tools menu (or select Job Net Monitoring from the pop-up menu displayed by right-clicking).
Select Previous process result sheet from the Monitor Job Net window.

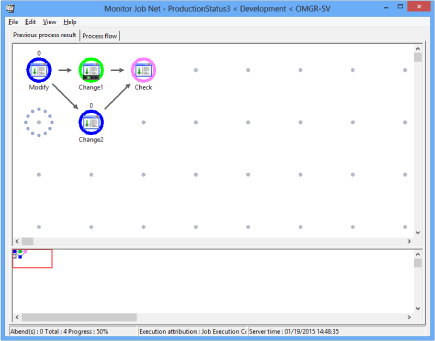

Figure 6.5 Monitor Job Net window - Previous process result sheet
Information
Perform the following operations to display the Monitor Job Net window for the child job net or linked job net from the Monitor Job Net window of the parent job net.
Select the desired child job net or linked job net from the Monitor Job Net window for the parent job net, then select Jobflow from the File menu (or right-click and select Jobflow from the pop-up menu displayed).
Displaying the Monitor-Job window
Double-click the job to be monitored in the Monitor Job Net window, or select the desired job and select Properties from the File menu (or select Properties from the pop-up menu displayed by right-clicking).

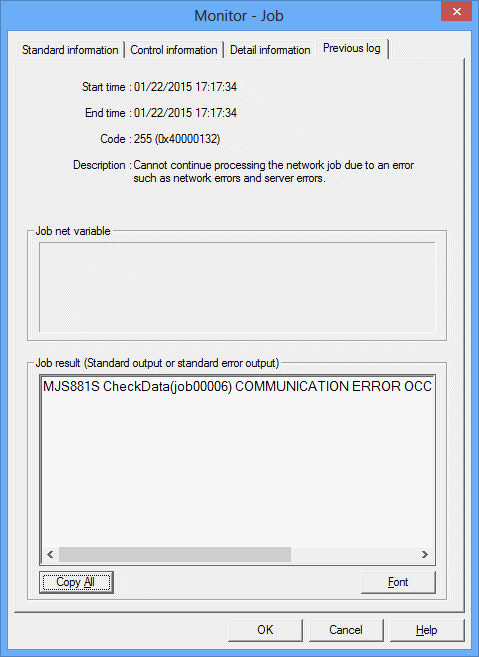

Figure 6.6 Monitor-Job window - Previous log sheet
Displays the history information for the previous execution.
The date and time on which the previous execution has been started.
The date and time on which the previous execution has been completed.
The code for the previous execution.
If the actual completion code for jobs in job nets (where the execution attribute is either the Job Execution Control attribute or the Interstage attribute) is 256 or more, the value for the actual completion code will be displayed as below. However, this will not be displayed for child job nets or linked job nets.
255 (actual completion code)
When the job is in the completed status, the meaning of Code is explained here. However, this will not be displayed for child job nets or linked job nets.
Displays the parameter information specified for startup with variable parameters.
Displays the Default log or default error log for the previous execution.
Nothing is displayed in the following cases:
When the job net is a child job net.
When the job net is a linked job net
When the job net is disabled and skipped.
When the job is in the Canceled status (only when the execution attribute is Normal)". [UNIX version]
Copies all the contents displayed as the output data.
Displays the Font dialog box.
Process flow sheet of the Monitor Job Net window
The Process flow sheet of the Monitor Job Net window shows the job net configuration information. For job nets containing child job nets or linked job nets for which Valid only on startup days has been specified, this can be used to determine whether the job net will start if the startup conditions are met, or if a startup operation is performed.
Procedure
Display the Process flow sheet of the Monitor Job Net window as follows:
In the Job Selection window from the Systemwalker Operation Manager window, double-click the target job net or select the target job net and select Open from the File menu (alternately, right-click the mouse on the target job net name and select Open from the pop-up menu).
In the Tools menu of the Systemwalker Operation Manager window, select Job Net Management to open the Job Net Management window, and double-click the target job net or select the target job net and select Job Net Monitoring from the Tools menu (alternately, right-click the mouse on the target job net name and select Open from the pop-up menu).
Select Process flow sheet from the Monitor Job Net window.

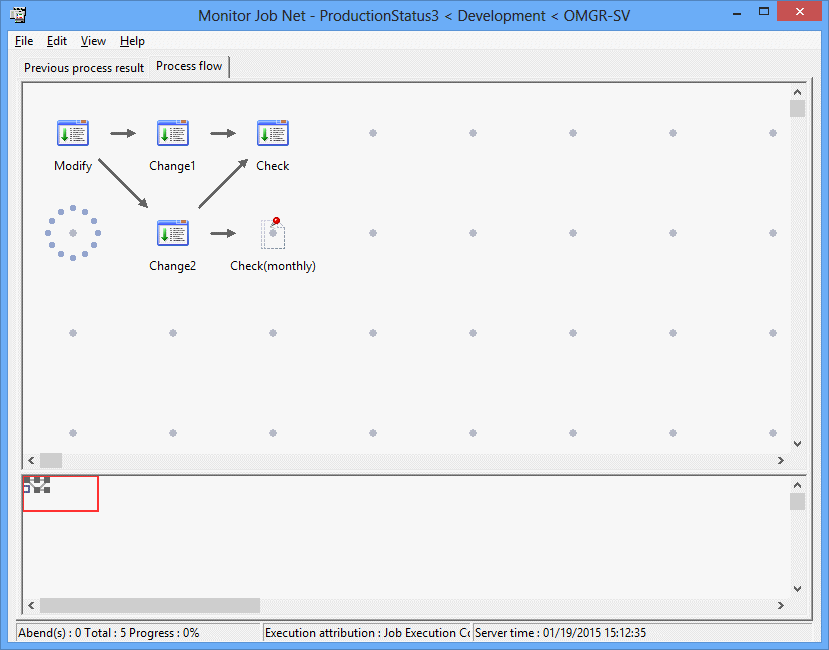

Figure 6.7 Monitor Job Net window - Process flow sheet
The Job List window
The Job List window displays a list of the jobs contained in the selected job net and the start date and time, the end date and time and the code of previous execution.
Procedure
Displaying the Job List window
Select a job net from the Job Selection window of the Systemwalker Operation Manager window.
For display examples of the Job List window, see "The Job List window" in "6.1 Monitoring Job Nets."
