Systemwalker Operation Manager  User's Guide
FUJITSU Software

6.3 Monitoring Demand Jobs

The execution status of demand jobs submitted under Job in the Job Selection window of the Systemwalker Operation Manager window is displayed in the View Job Status/Operate window. The View Job Status/Operate window displays a list of jobs including scheduled jobs. Detailed information on any of these jobs are displayed in the View Job Details dialog box.


Procedure

  1. Displaying the View Job Status/Operate window

    Select Jobs from the Job Selection window of the Systemwalker Operation Manager window. The View Job Status/Operate window will appear in the main window.

    Note

    If you use the Systemwalker User Management function to log in as a Systemwalker user, and then select Job or Queue from the Job Selection window, the Enter Password of Connected Host window will be displayed in order to specify the OS user that will use either the View Job Status/Operate window or the View Queue Status/Operate window.

    Use this window to specify the user ID and password for the user (OS user) that will access the job or queue information, and then click the OK button. If neither the View Queue Status/Operate window nor the View Queue Status/Operate window is to be used, click the Cancel button in the Enter Password of Connected Host window. Note that even if the OS user specified in the Enter Password of Connected Host window is an administrator, this user will only have general user privileges for monitoring and operating on jobs and queues in the View Job Status/Operate window or the View Queue Status/Operate window. Also, once the user ID and password for an OS user has been specified, these details will be reused in the View Job Status/Operate window or the View Queue Status/Operate window until the client logs out.

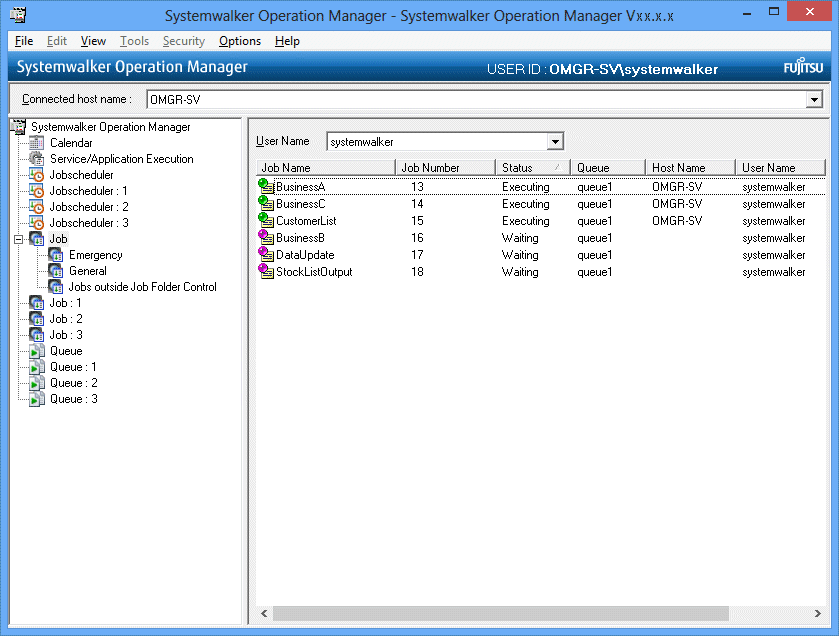

    Figure 6.8 View Job Status/Operate window

    User Name:

    Either the administrative user who has called the Systemwalker Operation Manager window or All Users can be selected. If All Users is selected, the job information of all users will be listed.

    If the Extended User Management function is valid in the UNIX system and if the Operation Manager user is specified, the job information of the OS user which is associated with the specified Operation Manager user is listed. In addition to the information on the specified Operation Manager user, the job information of all Operation Manager users associated with this OS user is listed.

    If a Systemwalker authentication repository is being used, the user ID specified in the Enter Password of Connected Host window will be displayed as the user, rather than the login user for the Systemwalker Operation Manager client.

    Job Name:

    Displays the job name and job status.

    Job Number:

    Displays the job number.

    Status:

    Displays the job status. The job statuses are as follows.

    Waiting/Holding/Executing/Output held

    Queue:

    Displays the queue name with jobs.

    Host Name:

    For a job being executed, the host name of the server on which the job is executed is displayed. For a job not being executed, nothing will be displayed.

    User Name:

    Displays the name of the user who has submitted the job. For the scheduled job, the user who has executed the job will be displayed.

    If the Extended User Management function is valid in the UNIX system and if the Operation Manager user submits a job, the OS user name associated with this Operation Manager user is displayed.

    Elapsed Time:

    For a job being executed, the elapsed time from the execution start time is displayed. For a job not being executed, nothing will be displayed.


    The order of the jobs in the list in the View Job Status/Operate window can be changed to the following (ascending) order. Select any of the following in the View menu >> Sort Jobs or Sort Jobs from the pop-up menu. Selecting the same item again aligns in the descending order.

    by Job Name:

    Aligns in the order of job names (in alphabetical order).

    by Job Number:

    Aligns in the ascending order of job numbers.

    by Queue Name:

    Aligns in the order of queue names.

    by Status:

    Aligns in the order of job status. The order is as follows.

    Executing >> Waiting >> Holding >> Output held

    by Host Name:

    Aligns in the order of host names.

    by Submit User:

    Aligns in the order of submitters.

    by Elapsed Time:

    Aligns in the order of elapsed time.

  2. Displaying the View Job Details dialog box

    Select the desired job from the View Job Status/Operate window, then select Open from the File menu (or select Open from the pop-up menu displayed by right-clicking).

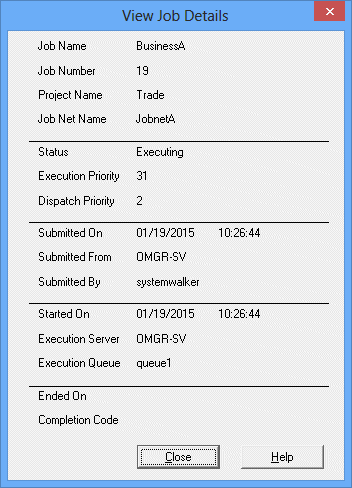

    Figure 6.9 View Job Details dialog box

    Job Name:

    Displays the job name.

    Job Number:

    Displays the job number.

    Project Name:

    If the job is a scheduled job, the project name will be displayed. If it is a demand job, nothing will be displayed.

    Job Net Name:

    If the job is a scheduled job, the job net name will be displayed. If it is a demand job, nothing will be displayed.

    Status:

    Displays the job status (Waiting/Holding/Executing/Output held).

    Execution Priority:

    Displays the execution priority ranking of the job.

    Dispatch Priority:

    Displays the dispatch priority of the job.

    Submitted On:

    Displays the submission date and time of the job.

    Submitted From:

    Displays the name of the host which has submitted the job.

    User Name:

    Displays the user who has submitted the job.

    Started On:

    Displays the start date and time of the job.

    Execution Server:

    Displays the execution server of the job.

    Execution Queue:

    Displays the execution queue name of the job.

    End time:

    Displays the end date and time for a job in the Output held status.

    Code:

    Displays the code for a job in the Output held status.

Information

When monitoring jobs from the server side, use the qjstat command. For details of the command, see the Systemwalker Operation Manager Reference Guide.

Note

For distributed execution jobs or network jobs, the submitting host name is displayed in the Host Name of View Job Status/Operate window until the execution request to the execution server is complete. When the request has completed, the host name of the actually executing server is displayed.
