PRIMECLUSTER Installation and Administration Guide 4.3

Chapter 5 Building a Cluster

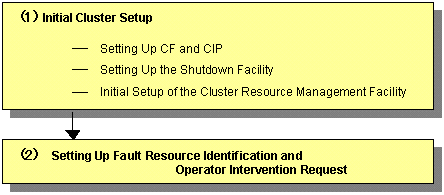

The procedure for building a PRIMECLUSTER cluster is shown below:

Table 5.1 Cluster building procedure and manual reference locations

building procedure	Work item	Execution Node	Required/Optional	Manual reference location*
(1)	5.1.1 Setting Up CF and CIP	All nodes	Required	CF 2.1 CF, CIP, and CIM configuration
	5.1.2 Setting Up the Shutdown Facility	All nodes	Required	CF 8 Shutdown Facility
	5.1.3 Initial Setup of the Cluster Resource Management Facility	All nodes	Required	CF 4.3 Resource Database configuration
(2)	5.2 Setting Up Fault Resource Identification and Operator Intervention Request	1 node	Required

* The PRIMECLUSTER manual names are abbreviated as follows:

• CF: PRIMECLUSTER Cluster Foundation (CF) Configuration and Administration Guide

Note

Be sure to configure GDS after initializing the cluster.
