5.1.2 Setting Up the Shutdown Facility

This section describes the setup procedure for the PRIMERGY and PRIMEQUEST shutdown facility.

The setup procedure for the shutdown facility is different depending on the model/configuration. Check the hardware model/configuration to set up the appropriate shutdown agent.

The following shows the shutdown agents required for each hardware model/configuration.

Table 5.2 Shutdown agent for PRIMERGY
Server model	SA_lkcd	SA_ipmi	SA_blade
BX620/920 series	Y	-	Y
RX200/300/600 series	Y	Y	-
TX200/300 series	Y	Y	-

Table 5.3 Shutdown agent for PRIMEQUEST
Server model name		Cluster configuration
		Among Native		Virtual machine function
		Among Native		Guests in a unit		Guests in other units
		MMB		VMGuest
		Panic	Reset	Panic	Reset	Panic	Reset
PRIMEQUEST	400 series	SA_ mmbp	SA_mmbr	-	-	-	-
	500 series	SA_ mmbp	SA_mmbr	SA_vmgp	-	-	-
	1000 series	SA_ mmbp	SA_mmbr	SA_vmSPgp	SA_vmSPgr	SA_vmSPgp	SA_vmSPgr

Note

When creating a redundant administrative LAN used in the shutdown facility by using GLS, use the logical IP address takeover function of the NIC switching mode, and for the administrative LAN used in the shutdown facility, set a physical IP address.

See

For details on the shutdown facility, see the following manuals:

"3.3.1.8 PRIMECLUSTER SF" in the "PRIMECLUSTER Concepts Guide"
"8 Shutdown Facility" in the "PRIMECLUSTER Cluster Foundation (CF) Configuration and Administration Guide"

5.1.2.1 Checking the Shutdown Agent Information

Check the information of the shutdown agent to be used.

Note

Check the shutdown agent information before cluster initialization.

MMB check items

If an MMB is being used, check the following settings:

The "Privilege" setting of the user is set to "Admin" so that the user can control the MMB with RMCP.
The "Status" setting of the user is set to "Enabled" so that the user can control the MMB with RMCP.

Check the settings for the user who uses RMCP to control the MMB. Log in to MMB Web-UI, and check the settings from the "Remote Server Management" window of the "Network Configuration" menu.

If the above settings have not been set, set up the MMB so that the above settings are set.

Jot down the following information related to the MMB:

User's name for controlling the MMB with RMCP (*1)
User's password for controlling the MMB with RMCP.
*1) The user must be granted the Admin privilege.

Note

The MMB units have two types of users:

User who controls all MMB units
User who uses RMCP to control the MMB

The user to be checked here is the user who uses RMCP to control the MMB. Be sure to check the correct type of user.

See

For information on how to set up the MMB and check the settings, refer to the "PRIMEQUEST 500/400 Reference Manual: Basic Operation /GUI/Commands".

Virtual machine check items

When using VMGuest (the shutdown agent in the virtual machine function) with PRIMEQUEST 500/400 series, and when setting up vmSP (Virtual Machine Service Provider) to the shutdown facility with PRIMEQUEST 1000 series, log in to the host OS using SSH in order to force stop the guest OS. To do this, you need to set up the following information.

Host OS IP address
User name for logging in to the host OS (FJSVvmSP)
User password for logging in to the host OS

For the information about User name and password for logging in to the host OS, record it you have set up in "3.2.1.1 Host OS setup."

5.1.2.2 Survival priority

Even if a cluster partition occurs due to a failure in the cluster interconnect, all the nodes will still be able to access the user resources. For details on the cluster partition, see "2.2.2.1 Protecting data integrity" in the "PRIMECLUSTER Concepts Guide".

To guarantee the consistency of the data constituting user resources, you have to determine the node groups to survive and those that are to be forcibly stopped.

The weight assigned to each node group is referred to as a "Survival priority" under PRIMECLUSTER.

The greater the weight of the node, the higher the survival priority. Conversely, the less the weight of the node, the lower the survival priority. If multiple node groups have the same survival priority, the node group that includes a node with the name that is first in alphabetical order will survive.

Survival priority can be found in the following calculation:

Survival priority = SF node weight + ShutdownPriority of userApplication

SF node weight (Weight):: Weight of node. Default value = 1. Set this value while configuring the shutdown facility.

userApplication ShutdownPriority:: Set this attribute when userApplication is created. For details on how to change the settings, see "8.5 Changing the Operation Attributes of a userApplication."

See

For details on the ShutdownPriority attribute of userApplication, see "11.1 Attributes available to the user" in the "PRIMECLUSTER Reliant Monitor Services (RMS) with Wizard Tools Configuration and Administration Guide".

Survival scenarios

The typical scenarios that are implemented are shown below:

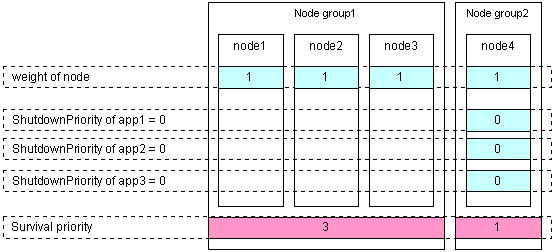

[Largest node group survival]

Set the weight of all nodes to 1 (default).
Set the attribute of ShutdownPriority of all user applications to 0 (default).

[Specific node survival]

Set the "weight" of the node to survive to a value more than double the total weight of the other nodes.
Set the ShutdownPriority attribute of all user applications to 0 (default).

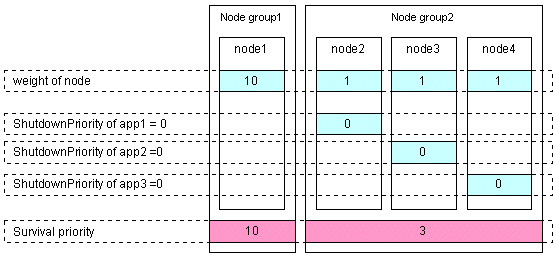

In the following example, node1 is to survive:

[Specific application survival]

Set the "weight" of all nodes to 1 (default).
Set the ShutdownPriority attribute of the user application whose operation is to continue to a value more than double the total of the ShutdownPriority attributes of the other user applications and the weights of all nodes.

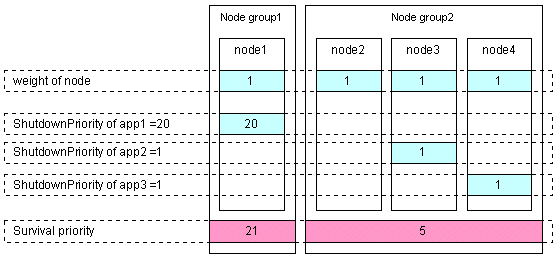

In the following example, the node for which app1 is operating is to survive:

5.1.2.3 Setting up the shutdown agent in PRIMERGY

This section describes the procedure for setting up the shutdown agent in PRIMERGY.

Note

After setting up the shutdown agent, conduct a test for forced shutdown of cluster nodes to check that the correct nodes can be forcibly stopped. For details of the test for forced shutdown of cluster nodes, see "1.4 Test".

5.1.2.3.1 Setting up the shutdown daemon

Create /etc/opt/SMAW/SMAWsf/rcsd.cfg on all nodes as shown below:

CFNameX,weight=weight,admIP=myadmIP: agent=SA_xxx,timeout=20
CFNameX,weight=weight,admIP=myadmIP: agent=SA_xxx,timeout=20

CFNameX : CF node name of the cluster host.
weight  : Weight of the SF node.
myadmIP : IP address of the administrative LAN on the local node.
SA_xxx  : Specify the name of the Shutdown Agent.
          For the IPMI Shutdown Agent, specify SA_ipmi.
          For the Blade Shutdown Agent, specify SA_blade.

Example) IPMI Shutdown Agent

node1, weight=1, admIP=10.20.30.100: agent=SA_ipmi, timeout=25
node2, weight=1, admIP=10.20.30.101: agent=SA_ipmi, timeout=25

Example) Blade Shutdown Agent

node1,weight=1,admIP=10.20.30.100: agent=SA_blade,timeout=20
node2,weight=1,admIP=10.20.30.101: agent=SA_blade,timeout=20

Note

For IPMI shutdown agent, set timeout to 25.
For using STP (Spanning Tree Protocol) in PRIMERGY, it is necessary to set the SF timeout value to the current value plus (+) 50 (seconds), taking into account the time STP needs to create the tree and an extra cushion. This setting also causes delays in failover times.

Information

When the "/etc/opt/SMAW/SMAWsf/rcsd.cfg" file is to be created, the "/etc/opt/SMAW/SMAWsf/rcsd.cfg.template" file can be used as a prototype.

5.1.2.3.2 IPMI

For the server with the BMC (Baseboard Management Controller) or iRMC (integrated Remote Management Controller) installed, configure the IPMI shutdown agent. You must configure the IPMI shutdown agent before you configure the Diskdump shutdown agent or the kdump shutdown agent.

Create /etc/opt/SMAW/SMAWsf/SA_ipmi.cfg on all nodes as shown below:

CFName1 ip-address:user:passwd {cycle | leave-off}
CFName2 ip-address:user:passwd {cycle | leave-off}

CFNameX          : CF node name of the cluster host.
ip-address       : Ip address for IPMI (BMC or iRMC).
user             : User name defined when IPMI (BMC or iRMC) was setup.
passwd           : Password defined when IPMI (BMC or iRMC) was setup.
                   Alphanumeric characters and the following symbols are available for passwords.
                    # % * + - . @ [ ] ^ _ { } ~
cycle            : Reboot the node after forcibly stopping the node.
leave-off        : Power-off the node after forcibly stopping the node.

Example)

node1 10.20.30.50:root:bmcpwd cycle
node2 10.20.30.51:root:bmcpwd cycle

Information

When the "/etc/opt/SMAW/SMAWsf/SA_ipmi.cfg" file is to be created, the "/etc/opt/SMAW/SMAWsf/SA_ipmi.cfg.template" file can be used as a prototype.

Note

Check if the setting contents of the /etc/opt/SMAW/SMAWsf/SA_ipmi.cfg file are correct. If there is an error in the setting contents, the shutdown facility cannot be performed normally.
Check if the IP address (ip-address) of IPMI (BMC or iRMC) corresponding to the cluster host's CF node name (CFNameX) of the /etc/opt/SMAW/SMAWsf/SA_ipmi.cfg file are set. If there is an error in the setting, a different node may be forcibly stopped.
If you have used symbols in the password specified when making the IPMI (BMC or iRMC) settings, it is unnecessary to add backslashes ("\"), indicating escape characters in front of the symbols.
Example: If the password specified when making the IPMI (BMC or iRMC) settings is "bmcpwd#"
```
node1 10.20.30.50:root:bmcpwd# cycle
node2 10.20.30.51:root:bmcpwd# cycle
```
If you have used special characters in the password specified when making the IPMI (BMC or iRMC) settings, open the configuration files for the shutdown agents on all nodes and insert backslashes ("\") in front of the special characters. Moreover, after modifying the configuration file, it is not necessary to run the "panicinfo_setup" command.
Example: If the password specified when making the IPMI (BMC or iRMC) settings is "bmcpwd$"
```
node1  10.20.30.50:root:bmcpwd\$ cycle
node2  10.20.30.51:root:bmcpwd\$ cycle
```
Change the permission of the /etc/opt/SMAW/SMAWsf/SA_ipmi.cfg file to 600 by executing the following command.
```
# chmod 600 /etc/opt/SMAW/SMAWsf/SA_ipmi.cfg
```

5.1.2.3.3 Blade

For the Blade server, configure the Blade shutdown agent. You must configure the Blade shutdown agent before you configure the Diskdump shutdown agent or the kdump shutdown agent.

Create /etc/opt/SMAW/SMAWsf/SA_blade.cfg on all nodes as shown below:

(1) Cluster configuration within a single chassis

management-blade-ip IPaddress
community-string SNMPcommunity
CFName1 slot-no {cycle | leave-off}
CFName2 slot-no {cycle | leave-off}

(2) Cluster configuration across multiple chassis

community-string SNMPcommunity
management-blade-ip IPaddress
CFName1 slot-no {cycle | leave-off}
management-blade-ip IPaddress
CFName2 slot-no {cycle | leave-off}

IPaddress          : IP address of the management blade.
SNMPcommunity      : SNMP community.
CFNameX            : CF node name of the cluster host.
slot-no            : Slot No. of the server blade.
cycle              : Reboot the node after forcibly stopping the node.
leave-off          : Power-off the node after forcibly stopping the node.

Example 1)

management-blade-ip 10.20.30.50
community-string public
node1 1 cycle
node2 2 cycle

Example 2)

community-string public
management-blade-ip 10.20.30.50
node1 1 cycle
management-blade-ip 10.20.30.51
node2 2 cycle

Information

When the "/etc/opt/SMAW/SMAWsf/SA_blade.cfg" file is to be created, the "/etc/opt/SMAW/SMAWsf/SA_blade.cfg.template" file can be used as a prototype.

Note

Check if the setting contents of the /etc/opt/SMAW/SMAWsf/SA_blade.cfg file are correct. If there is an error in the setting contents, the shutdown facility cannot be performed normally.
Check if the IP address (IPaddress) of the management blade and the slot number (slot-no) of the server blade corresponding to the cluster host's CF node name (CFNameX) of the /etc/opt/SMAW/SMAWsf/SA_blade.cfg file are set. If there is an error in the setting, a different node may be forcibly stopped.
Change the permission of the /etc/opt/SMAW/SMAWsf/SA_blade.cfg file to 600 by executing the following command.
```
# chmod 600 /etc/opt/SMAW/SMAWsf/SA_blade.cfg
```

Note

The rcsd.cfg, SA_ipmi.cfg and SA_blade.cfg files must be the same on all nodes. If not, operation errors might occur.

5.1.2.3.4 Diskdump

Set up the Diskdump shutdown agent when Diskdump is used to collect the crash dump.

Initializing the configuration file for the Diskdump
Execute the following command on any one of the cluster nodes.
```
# /etc/opt/FJSVcllkcd/bin/panicinfo_setup
```
Note
To execute the command, CF and CF services (CFSH and CFCP) must be activated. For details, see "5.1.1 Setting Up CF and CIP."
Also you must configure the IPMI shutdown agent, and the Blade shutdown agent.
Setting crash dump collection
The procedures for setting up may differ depending on the hardware used for the node.
- PRIMERGY RX200/300/600 series and TX200/300 series
  - Red Hat Enterprise Linux AS (4.6 for x86, 4.7 for x86 and 4.8 for x86)
    Change /etc/opt/FJSVcllkcd/etc/SA_lkcd.tout as follows on all nodes.
    Before change
```
PANICINFO_TIMEOUT 5
RSB_PANIC 0
```
    After change
```
PANICINFO_TIMEOUT 10
RSB_PANIC 3
```
    Change the timeout value of SA_lkcd in the /etc/opt/SMAW/SMAWsf/rcsd.cfg file as follows on all nodes.
    Before change
```
agent=SA_lkcd,timeout=20
```
    After change
```
agent=SA_lkcd,timeout=25
```
  - Red Hat Enterprise Linux AS (4.6 for EM64T, 4.7 for EM64T and 4.8 for EM64T)
    Change /etc/opt/FJSVcllkcd/etc/SA_lkcd.tout as follows on all nodes.
    Before change
```
PANICINFO_TIMEOUT 5
RSB_PANIC 0
RSB_TRIAL 5
```
    After change
```
PANICINFO_TIMEOUT 10
RSB_PANIC 3
RSB_TRIAL 12
```
    Change the timeout value of SA_lkcd in the /etc/opt/SMAW/SMAWsf/rcsd.cfg file as follows on all nodes.
    Before change
```
agent=SA_lkcd,timeout=20
```
    After change
```
agent=SA_lkcd,timeout=72
```
- BLADE servers (BX620/920 series)
  - Red Hat Enterprise Linux AS (4.6 for x86, 4.7 for x86 and 4.8 for x86)
    Change /etc/opt/FJSVcllkcd/etc/SA_lkcd.tout as follows on all nodes.
    Before change
```
RSB_PANIC 0
```
    After change
```
RSB_PANIC 2
```
  - Red Hat Enterprise Linux AS (4.6 for EM64T, 4.7 for EM64T and 4.8 for EM64T)
    Change /etc/opt/FJSVcllkcd/etc/SA_lkcd.tout as follows on all nodes.
    Before change
```
RSB_PANIC 0
RSB_TRIAL 5
```
    After change
```
RSB_PANIC 2
RSB_TRIAL 12
```
    Change the timeout value of SA_lkcd in the /etc/opt/SMAW/SMAWsf/rcsd.cfg file as follows on all nodes.
    Before change
```
agent=SA_lkcd,timeout=20
```
    After change
```
agent=SA_lkcd,timeout=72
```

5.1.2.3.5 kdump

Set up the kdump shutdown agent when kdump is used to collect the crash dump.

Initializing the configuration file for the kdump
Execute the following command on any one of the cluster nodes.
```
# /etc/opt/FJSVcllkcd/bin/panicinfo_setup
```
Note
To execute the command, CF and CF services (CFSH and CFCP) must be activated. For details, see "5.1.1 Setting Up CF and CIP."

Setting crash dump collection
The procedures for setting up may differ depending on the hardware used for the node.
- PRIMERGY RX200/300/600 series and TX200/300 series
  Change /etc/opt/FJSVcllkcd/etc/SA_lkcd.tout as follows on all nodes.
  Before change
```
PANICINFO_TIMEOUT 5
RSB_PANIC 0
```
  After change
```
PANICINFO_TIMEOUT 10
RSB_PANIC 3
```
  Change the timeout value of SA_lkcd in the /etc/opt/SMAW/SMAWsf/rcsd.cfg file as follows on all nodes.
  Before change
```
agent=SA_lkcd,timeout=20
```
  After change
```
agent=SA_lkcd,timeout=25
```
- BLADE servers (BX620/920 series)
  Change RSB_PANIC of /etc/opt/FJSVcllkcd/etc/SA_lkcd.tout as follows on all nodes.
  Before change
```
RSB_PANIC 0
```
  After change
```
RSB_PANIC 2
```

5.1.2.3.6 Starting up the shutdown facility

Start or restart the shutdown facility on all nodes.

If the shutdown daemon (rcsd) has not yet been started
Start the shutdown daemon (rcsd) with sdtool -b.
```
# sdtool -b
```

If the shutdown daemon (rcsd) is active
Stop the shutdown daemon (rcsd) with sdtool -e and then start it with sdtool -b.
```
# sdtool -e
# sdtool -b
```

Use sdtool -s to confirm whether the shutdown daemon (rcsd) is active.

# sdtool -s

By executing sdtool -s on all nodes, the composition of the shutdown facility can be confirmed.

Note

Confirm the shutdown facility operates normally by the display result of the sdtool -s command.

There is a possibility that the mistake is found in the configuration setting of the agent or hardware when displayed as follows though the setting of the shutdown facility is completed.

"InitFailed" is displayed as the initial status.
"Unknown" or "TestFailed" is displayed as the test status.

Confirm whether the error message is output to/var/log/messages file. Then, take corrective actions according to the content of the output message.

5.1.2.4 Setting up the shutdown agent in PRIMEQUEST

This section describes the procedure for setting up the shutdown agent in PRIMEQUEST.

Note

5.1.2.4.1 MMB

This section describes the procedure for setting up the MMB in the shutdown facility.

Check the information of the shutdown agent before setting up the shutdown facility.

Setting up the MMB Shutdown Facility

Registering MMB information

Note

Carry out the MMB information registration described here after "5.1.1 Setting Up CF and CIP" and before "Setting Up the Shutdown Daemon", which is described later.

Execute the "clmmbsetup -a" command on all nodes, and register the MMB information.
For instructions on using the "clmmbsetup" command, see the "clmmbsetup" manual page.
```
# /etc/opt/FJSVcluster/bin/clmmbsetup -a mmb-user
Enter User's Password:
Re-enter User's Password:
```
For mmb-user and User's Password, enter the following values that were checked in "5.1.2.1 Checking the Shutdown Agent Information."
mmb-user
User's name for controlling the MMB with RMCP
User's Password
User's password for controlling the MMB with RMCP.
Note
Only alphanumeric characters can be used for User's Password, but not symbols.
Execute the "clmmbsetup -l" command on all nodes, and check the registered MMB information.
If the registered MMB information was not output on all nodes in Step 1, start over from Step 1.
```
# /etc/opt/FJSVcluster/bin/clmmbsetup -l
cluster-host-name  user-name
-----------------------------------
node1              mmb-user
node2              mmb-user
```

Setting up the shutdown daemon

On all nodes, create /etc/opt/SMAW/SMAWsf/rcsd.cfg with the following information:

CFNameX,weight=weight,admIP=myadmIP: agent=SA_xxx,timeout=20
CFNameX,weight=weight,admIP=myadmIP: agent=SA_xxx,timeout=20

CFNameX        :  Specify the CF node name of the cluster host.
weight         :  Specify the weight of the SF node.
myadmIP        :  Specify the IP address of the administration LAN for the local node.
SA_xxx         :  Specify the name of the shutdown agent.
                      To set the node to panic status through the MMB
                      Specify "SA_mmbp".
                      To reset the node through the MMB
                      Specify "SA_mmbr".

Example) Shown below is a setup example for a 2-node configuration.

# cat /etc/opt/SMAW/SMAWsf/rcsd.cfg
node1,weight=2,admIP=fuji2:agent=SA_mmbp,timeout=20:agent=SA_mmbr,timeout=20
node2,weight=2,admIP=fuji3:agent=SA_mmbp,timeout=20:agent=SA_mmbr,timeout=20

Note

For the shutdown agents to be specified in the rcsd.cfg file, set both the SA_mmbp and SA_mmbr shutdown agents in that order.
Set the same contents in the rcsd.cfg file on all nodes. Otherwise, a malfunction may occur.

Information

When creating the /etc/opt/SMAW/SMAWsf/rcsd.cfg file, you can use the /etc/opt/SMAW/SMAWsf/rcsd.cfg.mmb.template file as a template.

Starting the MMB asynchronous monitoring daemon

Starting the MMB asynchronous monitoring daemon
Check that the MMB asynchronous monitoring daemon has been started on all nodes.
```
# /etc/opt/FJSVcluster/bin/clmmbmonctl
```
If "The devmmbd daemon exists." is displayed, the MMB asynchronous monitoring daemon has been started.
If "The devmmbd daemon does not exist." is displayed, the MMB asynchronous monitoring daemon has not been started. Execute the following command to start the MMB asynchronous monitoring daemon.
```
# /etc/opt/FJSVcluster/bin/clmmbmonctl start
```
Starting the shutdown facility.
Check that the shutdown facility has been started on all nodes.
```
# sdtool -s
```
If the shutdown facility has already been started, execute the following command to restart the shutdown facility on all nodes.
```
# sdtool -e
# sdtool -b
```
If the shutdown facility has not been started, execute the following command to start the shutdown facility on all nodes.
```
# sdtool -b
```
Checking the status of the shutdown facility
Check the status of the shutdown facility on all nodes.
```
# sdtool -s
```

Information

Display results of the sdtool -s command

If "InitFailed" is displayed as the initial status, it means that a problem occurred during initialization of that shutdown agent.
If "TestFailed" is displayed as the test status, it means that a problem occurred while the agent was testing whether or not the node displayed in the cluster host field could be stopped. Some sort of problem probably occurred in the software, hardware, or network resources being used by that agent.
If "Unknown" is displayed as the stop or initial status, it means that the SF has still not executed node stop, path testing, or SA initialization. "Unknown" is displayed temporarily until the actual status can be confirmed.
If TestFailed or InitFailed is displayed, check the SA log file or /var/log/messages. The log file records the reason why SA testing or initialization failed. After the failure-causing problem is resolved and SF is restarted, the status display changes to InitWorked or TestWorked.

Note

If "sdtool -s" is executed immediately after the OS is started, "TestFailed" may be displayed as the test status in the local node. However, this status is displayed because the snmptrapd daemon is still being activated and does not indicate a malfunction. If "sdtool -s" is executed 10 minutes after the shutdown facility is started, TestWorked is displayed as the test status.
In the following example, TestFailed is displayed test status for the local node (node1).
```
# sdtool -s
Cluster Host    Agent         SA State      Shut State  Test State  Init State
------------    -----         --------      ----------  ----------  ----------
node1           SA_mmbp.so    Idle          Unknown     TestFailed  InitWorked
node1           SA_mmbr.so    Idle          Unknown     TestFailed  InitWorked
node2           SA_mmbp.so    Idle          Unknown     TestWorked  InitWorked
node2           SA_mmbr.so    Idle          Unknown     TestWorked  InitWorked
```
The following messages may be displayed right after the OS is started by same reason as previously described.
```
3084: Monitoring another node has been stopped.
SA SA_mmbp.so to test host nodename failed
SA SA_mmbr.so to test host nodename failed
```
These messages are also displayed because the snmptrapd daemon is being activated and does not indicate a malfunction. The following message is displayed 10 minutes after the shutdown facility is started.
```
3083: Monitoring another node has been started.
```

If a node is forcibly shut down by the SA_mmbr shutdown agent, the following message may be output. This message indicates that it takes time to shut down the node, not a malfunction.

Fork SA_mmbp.so(PID pid) to shutdown host nodename
        :
SA SA_mmbp.so to shutdown host nodename failed
        :
Fork SA_mmbr.so(PID pid) to shutdown host nodename
        :
SA SA_mmbr.so to shutdown host nodename failed
        :
MA SA_mmbp.so reported host nodename leftcluster, state MA_paniced_fsnotflushed
        :
MA SA_mmbr.so reported host nodename leftcluster, state MA_paniced_fsnotflushed
        :
Fork SA_mmbp.so(PID pid) to shutdown host nodename
        :
SA SA_mmbp.so to shutdown host nodename succeeded

If "sdtool -s" is executed immediately after the message above was output, KillWorked is displayed in Shut State of SA_mmbp.so. Then, KillFailed is displayed in Shut State of SA_mmbr.so.

The following indicates the example when shutting down nodes from node1 to node2 and executing "sdtool -s" after the message above.

# sdtool -s
Cluster Host    Agent         SA State      Shut State  Test State  Init State
------------    -----         --------      ----------  ----------  ----------
node1           SA_mmbp.so    Idle          Unknown     TestWorked  InitWorked
node1           SA_mmbr.so    Idle          Unknown     TestWorked  InitWorked
node2           SA_mmbp.so    Idle          KillWorked  TestWorked  InitWorked
node2           SA_mmbr.so    Idle          KillFailed  TestWorked  InitWorked

To restore KillFailed that was displayed by "sdtool -s," follow the procedure below.

# sdtool -e
# sdtool -b
# sdtool -s
Cluster Host    Agent         SA State      Shut State  Test State  Init State
------------    -----         --------      ----------  ----------  ----------
node1           SA_mmbp.so    Idle          Unknown     TestWorked  InitWorked
node1           SA_mmbr.so    Idle          Unknown     TestWorked  InitWorked
node2           SA_mmbp.so    Idle          Unknown     TestWorked  InitWorked
node2           SA_mmbr.so    Idle          Unknown     TestWorked  InitWorked

Setting the I/O Completion Wait Time

Set the wait time until I/O completion (WaitForIOComp) during failover triggered by a node failure (panic, etc.) according to the procedure described below.

Prechecking the shared disk
The standard setting for the I/O completion wait time during failover triggered by a node failure (for example, if a panic occurs during MMB asynchronous monitoring) is 0 seconds. However, if a shared disk that requires an I/O completion wait time is being used, this setting must be set to an appropriate value.
Information
ETERNUS Disk storage systems do not require an I/O completion wait time. Therefore, this setting is not required.
Note
If an I/O completion wait time is set, the failover time when a node failure (panic, etc.) occurs increases by that amount of time.
Setting the I/O completion wait time
Execute the following command, and set the wait time until I/O completion (WaitForIOComp) during failover triggered by a node failure (panic, etc.). For details about the "cldevparam" command, see the "cldevparam" manual page.
Execute the command in any node that is part of the cluster system.
```
# /etc/opt/FJSVcluster/bin/cldevparam -p WaitForIOComp value
```
Alternatively, execute the following command and check the setting of the wait time until I/O processing is completed (WaitForIOComp).
```
# /etc/opt/FJSVcluster/bin/cldevparam -p WaitForIOComp
 value
```
Starting the shutdown facility
Check that the shutdown facility has been started on all nodes.
```
# sdtool -s
```
If the shutdown facility has already been started, execute the following command to restart the shutdown facility on all nodes:
```
# sdtool -r
```
If the shutdown facility has not been started, execute the following command to start the shutdown facility on all nodes.
```
# sdtool -b
```
Checking the status of the shutdown facility
Check the status of the shutdown facility on all nodes.
```
# sdtool -s
```

5.1.2.4.2 VMGuest (virtual machine)

This section describes the procedure for setting VmGuest (the shutdown agent in the virtual machine function) as the shutdown facility with PRIMEQUEST 500/400 series.

Be sure to perform "5.1.2.1 Checking the Shutdown Agent Information" before setting up the shutdown agent.

Note

Be sure to perform the following operations on the guest OS (node).

Setting up the shutdown daemon

If the node is a guest OS, execute the "clvmgsetup -a" command to register the guest OS information. Perform this on all guest OSes (nodes).
For details on how to use the "clvmgsetup" command, see the clvmgsetup man page.
```
# /etc/opt/FJSVcluster/bin/clvmgsetup -a host-user-name host-IPaddress
Enter User's Password:
Re-enter User's Password:
```
Enter the host-user-name and host-IPaddress and User's Password that you verified in "5.1.2.1 Checking the Shutdown Agent Information."
host-user-name
The user name for logging in to the host OS on the virtual machine system that the guest OS belongs to.
Use FJSVvmSP for the user name.
host-IPaddress
The IP address of the host OS's administrative LAN with MMB, and the host OS is on the virtual machine system that the guest OS belongs to.
User's Password
A user password for logging in to the host OS on the virtual machine system that the guest OS belongs to.

Execute the "clvmgsetup -l" command on all guest OSes (nodes) to check the registered guest OS information.

When information of the guest OS registered in the step 1 is not displayed, retry from the step 1.

# /etc/opt/FJSVcluster/bin/clvmgsetup -l
cluster-host-name host-IPaddress host-user-name domain-name
------------------------------------------------------------
node1             10.10.10.2     user1           node1

Log in to the host OS
The shutdown facility accesses the target node with SSH. Therefore, you need to authenticate yourself (create the RSA key) in advance, which is required when using SSH for the first time.
On all guest OSes (nodes), log in to the host OS IP address (host-IPaddress) using the host OS user name (host-user-name) that you registered in 1.
```
# ssh -l FJSVvmSP XXX.XXX.XXX.XXX
The authenticity of host 'XXX.XXX.XXX.XXX (XXX.XXX.XXX.XXX)' can't be established.
RSA key fingerprint is
xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx.
Are you sure you want to continue connecting (yes/no)? yes <- enter yes
```

Setup the shutdown daemon

On all guest OSes (nodes), create /etc/opt/SMAW/SMAWsf/rcsd.cfg as below.

CFNameX,weight=weight,admIP=myadmIP:agent=SA_xxxx,timeout=20

CFNameX   :  Specify the CF node name of the cluster host.
weight    :  Specify the weight of the SF node.
myadmIP   :  Specify the IP address of the administrative LAN for your guest OS (node).
SA_xxx    :  Specify the name of the shutdown agent.
                      Here, "SA_vmgp" is specified.

Example) The following is a setup example.

# cat /etc/opt/SMAW/SMAWsf/rcsd.cfg
node1,weight=2,admIP=fuji2:agent=SA_vmgp,timeout=20
node2,weight=2,admIP=fuji3:agent=SA_vmgp,timeout=20

Note

The contents of the rcsd.cfg file of all nodes should be identical. If not, a malfunction will occur.

Start the shutdown facility
Check that the shutdown facility has already been started on all guest OSes (nodes).
```
# sdtool -s
```
If the shutdown facility has already been started, execute the following to restart it on all guest OSes (nodes).
```
# sdtool -e
# sdtool -b
```
If the shutdown facility has not been started, execute the following to start it on all guest OSes (nodes).
```
# sdtool -b
```
Check the state of the shutdown facility
Check the state of the shutdown facility on all guest OSes (nodes).
```
# sdtool -s
```

Information

About the displayed results

If "InitFailed" is displayed as the initial status, it means that a problem occurred during initialization of that shutdown agent.
If "TestFailed" is displayed as the test status, it means that a problem occurred while the agent was testing whether or not the node displayed in the cluster host field could be stopped. Some sort of problem probably occurred in the software, hardware, or network resources being used by that agent.
When the maximum concurrent connections for SSH are "the number of cluster nodes" or less, the status of the shutdown facility may be displayed as InitFailed or TestFailed. Change the configuration to set up the maximum concurrent connections for SSH to be "the number of cluster nodes + 1"or more.
If "Unknown" is displayed as the stop or initial status, it means that the SF has still not executed node stop, path testing, or SA initialization. "Unknown" will be displayed temporarily until the actual status can be confirmed.
If TestFailed or InitFailed is displayed, check the SA log file or /var/log/messages. The log file records the reason why SA testing or initialization failed. After the failure-causing problem is resolved and SF is restarted, the status display changes to InitWorked or TestWorked.

5.1.2.4.3 vmSP (Virtual Machine Service Provider)

This section describes the procedure for setting vmSP (Virtual Machine Service Provider) as the shutdown facility with PRIMEQUEST 1000 series.

Be sure to perform "5.1.2.1 Checking the Shutdown Agent Information" before setting up the shutdown facility.

Note

Be sure to perform the following operations from 1. to 6. on all guest OSes (nodes).

Encrypt the password
Execute the sfcipher command to encrypt passwords for the account FJSVvmSP of all host OSes, where guest OSes set as cluster nodes exist.
For details on how to use the sfcipher command, see the manual page of "sfcipher."
```
# sfcipher -c
Enter User's Password:
Re-enter User's Password:
D0860AB04E1B8FA3
```

Setup the shutdown agent

Set the shutdown agent. When the shutdown agent for PANIC (SA_vmSPgp) is used, create /etc/opt/SMAW/SMAWsf/SA_vmSPgp.cfg, and when the shutdown agent for RESET (SA_vmSPgr) is used, create /etc/opt/SMAW/SMAWsf/SA_vmSPgr.cfg as below.

CFNameX domainX ip-address user passwd
CFNameX domainX ip-address user passwd

CFNameX    : Specify the CF node name of the cluster host.
domainX    : Specify the guest OS domain name.
ip-address : Specify the IP address of the host OS.
user       : Specify the account FJSVvmSP of the host OS.
passwd     : Specify the encrypted password in 2. using the login password for the account
             FJSVvmSP of the host OS.

Example) The following is a setup example.

# cat /etc/opt/SMAW/SMAWsf/SA_vmSPgp.cfg
node1 domain1 10.20.30.50 FJSVvmSP D0860AB04E1B8FA3
node2 domain2 10.20.30.51 FJSVvmSP D0860AB04E1B8FA3

# cat /etc/opt/SMAW/SMAWsf/SA_vmSPgr.cfg
node1 domain1 10.20.30.50 FJSVvmSP D0860AB04E1B8FA3
node2 domain2 10.20.30.51 FJSVvmSP D0860AB04E1B8FA3

Log in to the host OS
The shutdown facility accesses the target node with SSH. Therefore, you need to authenticate yourself (create the RSA key) in advance, which is required when using SSH for the first time.
On all guest OSes (nodes), log in to each host OS IP address (ip-address) set in the step 2. using each host OS user name (user) set in the step 2.
```
# ssh -l FJSVvmSP XXX.XXX.XXX.XXX
The authenticity of host 'XXX.XXX.XXX.XXX (XXX.XXX.XXX.XXX)' can't be established.
RSA key fingerprint is xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx.
Are you sure you want to continue connecting (yes/no)? yes <- "Enter yes."
```

Setup the shutdown daemon

Create /etc/opt/SMAW/SMAWsf/rcsd.cfg as below.

CFNameX,weight=weight,admIP=myadmIP:agent=SA_xxxx,timeout=35
CFNameX,weight=weight,admIP=myadmIP:agent=SA_xxxx,timeout=35

CFNameX       : Specify the CF node name of the cluster host.
weight        : Specify the weight of the SF node.
myadmIP       : Specify the IP address of the administrative LAN for your guest OS (node).
SA_xxxx       : Specify the name of the shutdown agent.
                Here, "SA_vmSPgp" or "SA_vmSPgr" is specified.

Example) The following is a setup example.

# cat /etc/opt/SMAW/SMAWsf/rcsd.cfg
node1,weight=2,admIP=fuji2:agent=SA_vmSPgp,timeout=35:agent=SA_vmSPgr,timeout=35
node2,weight=2,admIP=fuji3:agent=SA_vmSPgp,timeout=35:agent=SA_vmSPgr,timeout=35

Note

For the shutdown agent set by the rcsd.cfg file, set both shutdown agents in the order of SA_vmSPgp to SA_vmSPgr.
The contents of the SA_vmSPgp.cfg, SA_vmSPgr.cfg, and rcsd.cfg files of all guest OSes (nodes) should be identical. If not, a malfunction will occur.

Start the shutdown facility
Check that the shutdown facility has already been started on all the nodes.
```
# sdtool -s
```
If the shutdown facility has already been started, execute the following to restart it on all the nodes.
```
# sdtool -e
# sdtool -b
```
If the shutdown facility has not been started, execute the following to start it on all the nodes.
```
# sdtool -b
```
Check the state of the shutdown facility
Check the state of the shutdown facility.
```
# sdtool -s
```

Information

About the displayed results

If "InitFailed" is displayed as the initial status, it means that a problem occurred during initialization of that shutdown agent.
If "TestFailed" is displayed as the test status, it means that a problem occurred while the agent was testing whether or not the node displayed in the cluster host field could be stopped. Some sort of problem probably occurred in the software, hardware, network resources, or the host OS being used by that agent.
When the maximum concurrent connections for SSH are "the number of cluster nodes" or less, the status of the shutdown facility may be displayed as InitFailed or TestFailed. Change the configuration to set up the maximum concurrent connections for SSH to be "the number of cluster nodes + 1"or more.
If "Unknown" is displayed as the stop or initial status, it means that the SF has still not executed node stop, path testing, or SA initialization. "Unknown" will be displayed temporarily until the actual status can be confirmed.
If TestFailed or InitFailed is displayed, check the SA log file or /var/log/messages. The log file records the reason why SA testing or initialization failed. After the failure-causing problem is resolved and SF is restarted, the status display changes to InitWorked or TestWorked.
