This section explains the settings in bdpp.conf.
/etc/opt/FJSVbdpp/conf/bdpp.conf
This file defines the information required for the installation and setup of this product.
A separate file must be created for each server functionality.
Configure using the format shown below.
parameter=specifiedValue
Refer to the following for information on the parameters defined in each server:
Note
Parameters with "select" as the specified value
Enter up to "parameter=" but omit the value.
BDPP_PCL_PRIMARY_CONNECT2=
Parameters with "optional" as the specified value
The parameter line itself can be omitted.
Point
Separate "bdpp.conf" templates for each server type are stored under "/DISK1/config_template" on the distribution media (DVDROM) of this product. Copy the relevant template to the system work directory, and then edit the parameters to create the configuration file.
Note
When installing this product, create the configuration file in any directory. The storage directory of the created configuration file must be specified as the "BDPP_CONF_PATH" environment variable before installation.
[Master server]
Parameters set in the master server configuration file are shown below.
Item | Parameter | Mandatory/ | Value to be specified | Explanation |
|---|---|---|---|---|
1 | BDPP_CLUSTER_NAME | Mandatory | cluster | Specify the virtual host name to be set for the cluster. For the host name, the first character must be a letter, and it must consist of 11 or fewer alphanumeric characters. |
2 | BDPP_CLUSTER_IP | Mandatory | 10.10.10.1 | Specify the virtual IP address to be set for the cluster |
3 | BDPP_PRIMARY_NAME | Mandatory | master1 | Specify the representative host name of the primary master server (the host name corresponding to the NIC that connects to the public LAN). For the host name, the first character must be a letter, and it must consist of 11 or fewer alphanumeric characters. |
4 | BDPP_PRIMARY_IP | Mandatory | 10.10.10.11 | Specify the representative IP address that will be used to connect to the primary master server public LAN. (The IP address that will be used to connect to public LAN1 in the figure) |
5 | BDPP_PRIMARY_ADM_IP | Mandatory | 192.168.1.1 | Specify the IP address that will be used to connect to the primary master server admin LAN. (The IP address that will be used to connect to the admin LAN in the figure) |
6 | BDPP_SECONDARY_NAME | Optional | master2 | Specify the representative host name of the secondary master server (the host name corresponding to the NIC that connects to the public LAN). For the host name, the first character must be a letter, and it must consist of 11 or fewer alphanumeric characters. If not replicating the master server, this value should be omitted. |
7 | BDPP_SECONDARY_IP | Optional | 10.10.10.12 | Specify the representative IP address that will be used to connect to the secondary master server public LAN. (The IP address that will be used to connect to public LAN1 in the figure) If not replicating the master server, this value should be omitted. |
8 | BDPP_SECONDARY_ADM_IP | Optional | 192.168.1.2 | Specify the IP address that will be used to connect to the secondary master server admin LAN. (The IP address that will be used to connect to the admin LAN in the figure) If not replicating the master server, this value should be omitted. |
9 | BDPP_PCL_CLUSTER_GROUP | Mandatory | bdppcluster | Specify the cluster group name to be set for the cluster. For the cluster group name, the first character must be a letter, and it must consist of 31 or fewer alphanumeric characters. |
10 | BDPP_PCL_PRIMARY_iRMC_IP | Optional | 192.168.1.11 | Specify the IP address of the primary master server remote management controller. If building a master server in a virtual environment, this value should be omitted. |
11 | BDPP_PCL_PRIMARY_iRMC_ACCOUNT | Optional | root | Specify the account of the primary master server remote management controller. If building a master server in a virtual environment, this value should be omitted. |
12 | BDPP_PCL_PRIMARY_iRMC_PASS | Optional | password | Specify the password of the primary master server remote management controller. If building a master server in a virtual environment, this value should be omitted. |
13 | BDPP_PCL_SECONDARY_iRMC_IP | Optional | 192.168.1.12 | Specify the IP address of the secondary master server remote management controller. If not replicating the master server, this value should be omitted. If building a master server in a virtual environment, this value should be omitted. |
14 | BDPP_PCL_SECONDARY_iRMC_ACCOUNT | Optional | root | Specify the account of the secondary master server remote management controller. If not replicating the master server, this value should be omitted. If building a master server in a virtual environment, this value should be omitted. |
15 | BDPP_PCL_SECONDARY_iRMC_PASS | Optional | password | Specify the password of the secondary master server remote management controller. If not replicating the master server, this value should be omitted. If building a master server in a virtual environment, this value should be omitted. |
16 | BDPP_PCL_PRIMARY_CIP | Mandatory | 192.168.2.11 | Specify the IP address (*1) used for the primary master server CIP (Cluster Interconnect Protocol). |
17 | BDPP_PCL_SECONDARY_CIP | Optional | 192.168.2.12 | Specify the IP address (*1) used for the secondary master server CIP (Cluster Interconnect Protocol). If not replicating the master server, this value should be omitted. |
18 | BDPP_PCL_PRIMARY_CONNECT1 | Mandatory | eth5 | Specify the primary master server side NIC name (NIC5) used for connections between clusters. Configure the network interface used in the cluster interconnect so that it is activated when the system is started. Note, however, that no IP address must be assigned. |
19 | BDPP_PCL_PRIMARY_CONNECT2 | Optional | eth6 | Specify the primary master server side NIC name (NIC6) used for connections between clusters. Note, however, that no IP address must be assigned. When the cluster interconnect is a single configuration, this value should be omitted. |
20 | BDPP_PCL_SECONDARY_CONNECT1 | Optional | eth5 | Specify the secondary master server side NIC name (NIC5) used for connections between clusters. If not replicating the master server, this value should be omitted. |
21 | BDPP_PCL_SECONDARY_CONNECT2 | Optional | eth6 | Specify the secondary master server side NIC name (NIC6) used for connections between clusters. When the cluster interconnect is a single configuration, this value should be omitted. If not replicating the master server, this value should be omitted. |
22 | BDPP_GLS_PRIMARY_CONNECT1 | Mandatory | eth1 | Specify the primary master server NIC name (NIC1) used for connections between slave servers. (The NIC that will be used to connect to public LAN1 in the figure) |
23 | BDPP_GLS_PRIMARY_CONNECT2 | Optional | eth2 | Specify the primary master server NIC name (NIC2) used for connections between slave servers. (The NIC that will be used to connect to public LAN2 in the figure) When the public LAN is a single configuration, this value should be omitted. If building a master server in a virtual environment, this value should be omitted. |
24 | BDPP_GLS_SECONDARY_CONNECT1 | Optional | eth1 | Specify the secondary master server NIC name (NIC1) used for connections between slave servers. (The NIC that will be used to connect to public LAN1 in the figure) If not replicating the master server, this value should be omitted. |
25 | BDPP_GLS_SECONDARY_CONNECT2 | Optional | eth2 | Specify the secondary master server NIC name (NIC2) used for connections between slave servers. (The NIC that will be used to connect to public LAN2 in the figure) When the public LAN is a single configuration, this value should be omitted. If not replicating the master server, this value should be omitted. If building a master server in a virtual environment, this value should be omitted. |
26 | BDPP_GLS_POLLING1_IP | Mandatory | 10.10.10.100 | Specify the IP address of the monitoring target HUB host. (Monitoring target HUB host on public LAN1 in the figure) |
27 | BDPP_GLS_POLLING2_IP | Optional | 10.10.10.101 | Specify the IP address of the monitoring target HUB host. (Monitoring target HUB host on public LAN2 in the figure) When the public LAN is a single configuration, this value should be omitted. If building a master server in a virtual environment, this value should be omitted. |
28 | BDPP_GLS_NETMASK | Optional | 255.255.0.0 | Specify the net mask for the public LAN IP address. The default net mask is "255.255.255.0". |
29 | BDPP_DISKARRAY_iSCSI1_IP | Optional | 10.10.11.11 | Specify the IP address of the ETERNUS DX disk array iSCSI-CA port that is part of the DFS management partition. This parameter is mandatory if YES is specified for BDPP_PDFS_FILESYSTEM. |
30 | BDPP_DISKARRAY_iSCSI2_IP | Optional | 10.10.12.11 | If the connection to the ETERNUS DX disk array is redundant, specify the other IP address of the ETERNUS DX disk array iSCSI-CA port to which the connection will be made. When the iSCSI LAN is a single configuration, this value should be omitted. If building a master server in a virtual environment, this value should be omitted. |
31 | BDPP_ROR_ADMIN_IP | Optional | 192.168.1.1 | Specify the primary master server admin LAN IP address to be specified when installing ROR. If building a master server in a virtual environment, this value should be omitted. |
32 | BDPP_ROR_ADMIN_ACCOUNT | Optional | root | Specify the account of the local server used when installing ROR. If building a master server in a virtual environment, this value should be omitted. |
33 | BDPP_ROR_ADMIN_PASS | Optional | password | Specify the password of the local server used when installing ROR. If building a master server in a virtual environment, this value should be omitted. |
34 | BDPP_PDFS_FILESYSTEM | Mandatory | YES | If DFS is to be used as the file system, specify YES (or yes). |
35 | BDPP_PDFS_MOUNTPOINT | Optional | /mnt/pdfs | Specify the PDFS mount point. This parameter is mandatory if YES is specified for BDPP_PDFS_FILESYSTEM. |
36 | BDPP_HADOOP_DEFAULT_USERS | Optional | bdppuser1,1500 | To register a user ID with permissions for the execution of MapReduce and access to the file system (DFS), specify the user name and UID. Multiple user IDs can be registered (*2). |
37 | BDPP_HADOOP_DEFAULT_GROUP | Optional | bdppgroup,1500 | Specify this to register a user group name and GID for the execution of MapReduce and to access the file system (DFS). |
38 | BDPP_HADOOP_TOP_DIR | Optional | /hadoop | Specify the name of the top directory that stores the data used in Hadoop on the file system (DFS). The data used in Hadoop and the results data processed in Hadoop will be stored under the directory that is specified here. |
39 | BDPP_KVMHOST_IP | 192.168.1.100 | Specify the IP address of the admin LAN for the KVM host machine used in the shutdown agent settings (*3). Specify this only when building a master server in a virtual environment (KVM). | |
40 | BDPP_KVMHOST_ACCOUNT | pcluser | Specify the user account for the KVM host machine used in the shutdown agent settings. Specify this only when building a master server in a virtual environment (KVM). | |
41 | BDPP_KVMHOST_PASS | password | Specify the user password for the KVM host machine used in the shutdown agent settings. Specify this only when building a master server in a virtual environment (KVM). |
*1: An interconnect private IP interface can be built by using an IP address provided for a private network.
*2: When registering multiple user IDs, specify multiple user names and user IDs by delimiting with a space (" ") as shown below.
bdppuser1,1500 bdppuser2,1501 bdppuser3,1502
*3: If replicated configuration is used for master servers and the primary master server and the secondary master server are installed on virtual machines that are on different host machines, specify the IP addresses for the two host machines by delimiting with a comma (",").
192.168.1.100,192.168.1.101

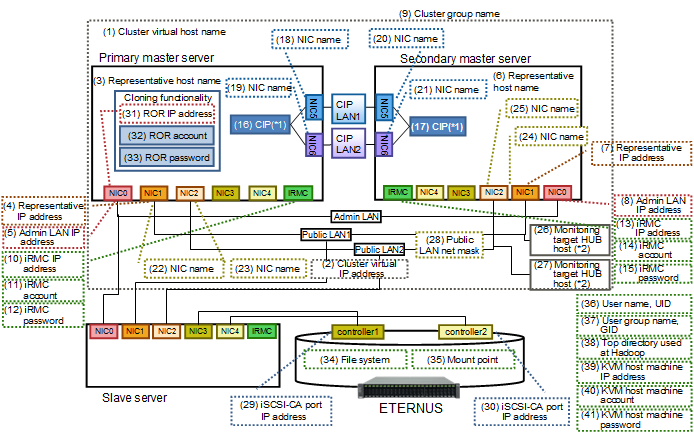

Figure B.1 Network configuration of the master server and bdpp.conf parameters
*1: CIP (Cluster Interconnect Protocol)
*2: HUB host used for the HUB monitoring feature.
The HUB monitoring feature executes a ping to neighboring hubs at fixed intervals, and if it detects a fault in the transfer route, it switches the interface being used.
[Slave server]
Parameters set in the slave server configuration file are shown below.
Item | Parameter | Mandatory/ | Value to be specified | Explanation |
|---|---|---|---|---|
1 | BDPP_CLUSTER_NAME | Mandatory | cluster | Set the same value as the master server. |
2 | BDPP_CLUSTER_IP | Mandatory | 10.10.10.1 | Set the same value as the master server. |
3 | BDPP_PRIMARY_NAME | Mandatory | master1 | Set the same value as the master server. |
4 | BDPP_SECONDARY_NAME | Optional | master2 | Set the same value as the master server. |
5 | BDPP_SERVER_NAME | Mandatory | slave1 | Specify the representative host name of the slave server (the host name corresponding to the NIC that connects to the public LAN). For the host name, the first character must be a letter, and it must consist of 11 or fewer alphanumeric characters. |
6 | BDPP_SERVER_IP | Mandatory | 10.10.10.21 | Specify the representative IP address that will be used to connect to the slave server public LAN. |
7 | BDPP_GLS_SERVER_CONNECT1 | Mandatory | eth1 | Specify the slave server NIC name (NIC1) used for connections between slave servers. (The NIC that will be used to connect to public LAN1 in the figure) |
8 | BDPP_GLS_SERVER_CONNECT2 | Optional | eth2 | Specify the slave server NIC name (NIC2) used for connections between slave servers. (The NIC that will be used to connect to public LAN2 in the figure) When the public LAN is a single configuration, this value should be omitted. If building a slave server in a virtual environment, this value should be omitted. |
9 | BDPP_GLS_SERVER_POLLING1_IP | Mandatory | 10.10.10.100 | Specify the IP address of the monitoring target HUB host. (Monitoring target HUB host on public LAN1 in the figure) |
10 | BDPP_GLS_SERVER_POLLING2_IP | Optional | 10.10.10.101 | Specify the IP address of the monitoring target HUB host. (Monitoring target HUB host on public LAN2 in the figure) When the public LAN is a single configuration, this value should be omitted. If building a slave server in a virtual environment, this value should be omitted. |
11 | BDPP_GLS_NETMASK | Optional | 255.255.0.0 | Specify the net mask for the public LAN IP address. The default net mask is "255.255.255.0". |
12 | BDPP_ROR_ADMIN_IP | Optional | 192.168.1.1 | Set the same value as the master server. |
13 | BDPP_PDFS_FILESYSTEM | Mandatory | YES | Set the same value as the master server. |
14 | BDPP_PDFS_MOUNTPOINT | Optional | /mnt/pdfs | Set the same value as the master server. |
15 | BDPP_HADOOP_DEFAULT_USERS | Optional | bdppuser1,1500 | Set the same value as the master server. |
16 | BDPP_HADOOP_DEFAULT_GROUP | Optional | bdppgroup,1500 | Set the same value as the master server. |
17 | BDPP_HADOOP_TOP_DIR | Optional | /hadoop | Set the same value as the master server. |

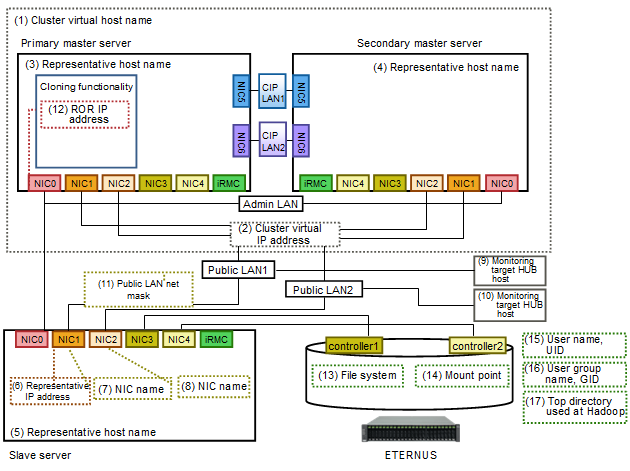

Figure B.2 Slave server network configuration and bdpp.conf parameter
[Development server]
Parameters set in the development server configuration file are shown below.
Item | Parameter | Mandatory/ | Value to be specified | Explanation |
|---|---|---|---|---|
1 | BDPP_CLUSTER_NAME | Mandatory | cluster | Set the same value as the master server. |
2 | BDPP_CLUSTER_IP | Mandatory | 10.10.10.1 | Set the same value as the master server. |
3 | BDPP_PRIMARY_NAME | Mandatory | master1 | Set the same value as the master server. |
4 | BDPP_SECONDARY_NAME | Optional | master2 | Set the same value as the master server. |
5 | BDPP_SERVER_NAME | Mandatory | develop | Specify the representative host name of the development server (the host name corresponding to the NIC that connects to the public LAN). For the host name, the first character must be a letter, and it must consist of 11 or fewer alphanumeric characters. |
6 | BDPP_SERVER_IP | Mandatory | 10.10.10.30 | Specify the representative IP address of the development server. |
7 | BDPP_PDFS_FILESYSTEM | Mandatory | YES | Set the same value as the master server. |
8 | BDPP_PDFS_MOUNTPOINT | Optional | /mnt/pdfs | Set the same value as the master server. |
9 | BDPP_HADOOP_DEFAULT_USERS | Optional | bdppuser1,1500 | Set the same value as the master server. |
10 | BDPP_HADOOP_DEFAULT_GROUP | Optional | bdppgroup,1500 | Set the same value as the master server. |
11 | BDPP_HADOOP_TOP_DIR | Optional | /hadoop | Set the same value as the master server. |

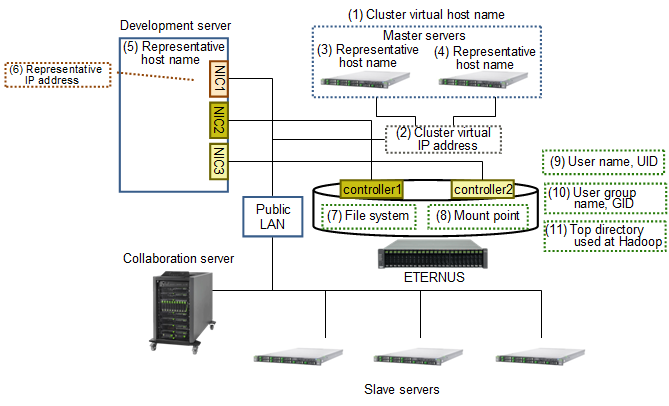

Figure B.3 Development server network configuration and bdpp.conf parameter
[Collaboration server]
Parameters set in the collaboration server configuration file are shown below.
Item | Parameter | Mandatory/ Optional | Value to be specified | Explanation |
|---|---|---|---|---|
1 | BDPP_SERVER_NAME | Mandatory | collaborate | Specify the representative host name of the collaboration server (the host name corresponding to the NIC that connects to the public LAN). For the host name, the first character must be a letter, and it must consist of 11 or fewer alphanumeric characters. |
2 | BDPP_SERVER_IP | Mandatory | 10.10.10.31 | Specify the representative IP address of the collaboration server. |
3 | BDPP_PDFS_FILESYSTEM | Mandatory | YES | Set the same value as the master server. |
4 | BDPP_PDFS_MOUNTPOINT | Optional | /mnt/pdfs | Set the same value as the master server. |
5 | BDPP_HADOOP_DEFAULT_USERS | Optional | bdppuser1,1500 | Set the same value as the master server. |
6 | BDPP_HADOOP_DEFAULT_GROUP | Optional | bdppgroup,1500 | Set the same value as the master server. |
7 | BDPP_HADOOP_TOP_DIR | Optional | /hadoop | Set the same value as the master server. |

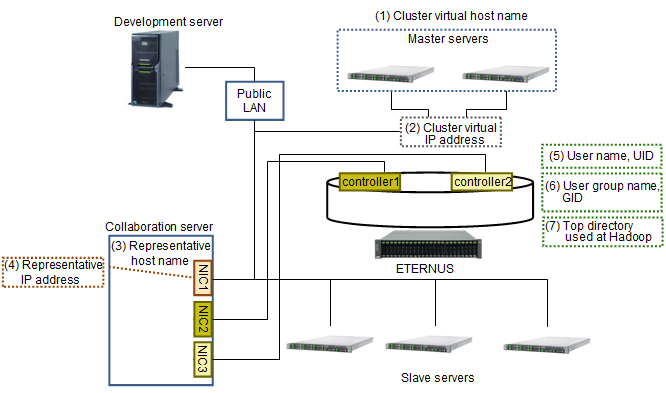

Figure B.4 Collaboration server network configuration and bdpp.conf parameter
Definition examples
Definition examples for bdpp.conf are shown below.
These definition examples are provided for various servers for the following system configurations:
Replicating the master server configuration
Replicating the public LAN
Replicating the cluster interconnect (CIP)
Replicating the iSCSI
BDPP_CLUSTER_NAME=cluster BDPP_CLUSTER_IP=10.10.10.1 BDPP_PRIMARY_NAME=master1 BDPP_PRIMARY_IP=10.10.10.11 BDPP_PRIMARY_ADM_IP=192.168.1.1 BDPP_SECONDARY_NAME=master2 BDPP_SECONDARY_IP=10.10.10.12 BDPP_SECONDARY_ADM_IP=192.168.1.2 BDPP_PCL_CLUSTER_GROUP=bdppcluster BDPP_PCL_PRIMARY_iRMC_IP=192.168.1.11 BDPP_PCL_PRIMARY_iRMC_ACCOUNT=irmc BDPP_PCL_PRIMARY_iRMC_PASS=password BDPP_PCL_SECONDARY_iRMC_IP=192.168.1.12 BDPP_PCL_SECONDARY_iRMC_ACCOUNT=irmc BDPP_PCL_SECONDARY_iRMC_PASS=password BDPP_PCL_PRIMARY_CIP=192.168.2.11 BDPP_PCL_SECONDARY_CIP=192.168.2.12 BDPP_PCL_PRIMARY_CONNECT1=eth5 BDPP_PCL_PRIMARY_CONNECT2=eth6 BDPP_PCL_SECONDARY_CONNECT1=eth5 BDPP_PCL_SECONDARY_CONNECT2=eth6 BDPP_GLS_PRIMARY_CONNECT1=eth1 BDPP_GLS_PRIMARY_CONNECT2=eth2 BDPP_GLS_SECONDARY_CONNECT1=eth1 BDPP_GLS_SECONDARY_CONNECT2=eth2 BDPP_GLS_POLLING1_IP=10.10.10.100 BDPP_GLS_POLLING2_IP=10.10.10.101 BDPP_DISKARRAY_iSCSI1_IP=10.10.11.11 BDPP_DISKARRAY_iSCSI2_IP=10.10.12.11 BDPP_ROR_ADMIN_IP=192.168.1.1 BDPP_ROR_ADMIN_ACCOUNT=admin BDPP_ROR_ADMIN_PASS=password BDPP_PDFS_FILESYSTEM=YES BDPP_PDFS_MOUNTPOINT=/mnt/pdfs BDPP_HADOOP_DEFAULT_USERS=bdppuser1,1500 BDPP_HADOOP_DEFAULT_GROUP=bdppgroup,1500 BDPP_HADOOP_TOP_DIR=/hadoop
BDPP_CLUSTER_NAME=cluster BDPP_CLUSTER_IP=10.10.10.1 BDPP_PRIMARY_NAME=master1 BDPP_SECONDARY_NAME=master2 BDPP_SERVER_NAME=slave1 BDPP_SERVER_IP=10.10.10.21 BDPP_GLS_SERVER_CONNECT1=eth1 BDPP_GLS_SERVER_CONNECT2=eth2 BDPP_GLS_SERVER_POLLING1_IP=10.10.10.100 BDPP_GLS_SERVER_POLLING2_IP=10.10.10.101 BDPP_ROR_ADMIN_IP=192.168.1.1 BDPP_PDFS_FILESYSTEM=YES BDPP_PDFS_MOUNTPOINT=/mnt/pdfs BDPP_HADOOP_DEFAULT_USERS=bdppuser1,1500 BDPP_HADOOP_DEFAULT_GROUP=bdppgroup,1500 BDPP_HADOOP_TOP_DIR=/hadoop
BDPP_CLUSTER_NAME=cluster BDPP_CLUSTER_IP=10.10.10.1 BDPP_PRIMARY_NAME=master1 BDPP_SECONDARY_NAME=master2 BDPP_SERVER_NAME=develop BDPP_SERVER_IP=10.10.10.30 BDPP_PDFS_FILESYSTEM=YES BDPP_PDFS_MOUNTPOINT=/mnt/pdfs BDPP_HADOOP_DEFAULT_USERS=bdppuser1,1500 BDPP_HADOOP_DEFAULT_GROUP=bdppgroup,1500 BDPP_HADOOP_TOP_DIR=/hadoop
BDPP_SERVER_NAME=collaborate BDPP_SERVER_IP=10.10.10.31 BDPP_PDFS_FILESYSTEM=YES BDPP_PDFS_MOUNTPOINT=/mnt/pdfs BDPP_HADOOP_DEFAULT_USERS=bdppuser1,1500 BDPP_HADOOP_DEFAULT_GROUP=bdppgroup,1500 BDPP_HADOOP_TOP_DIR=/hadoop
