Interstage Studio J Business Kit GUI Library Sample Guide

1.3.13 JFMultiLineLabel(Multi-Line Label)

The multi-line label sample displays the multi-line label using the JFMultiLineLabel class.

The multi-line label sample uses the following classes:

• JFMultiLineLabel

• JFFieldString

• JFCheckList

• JFGroupbox

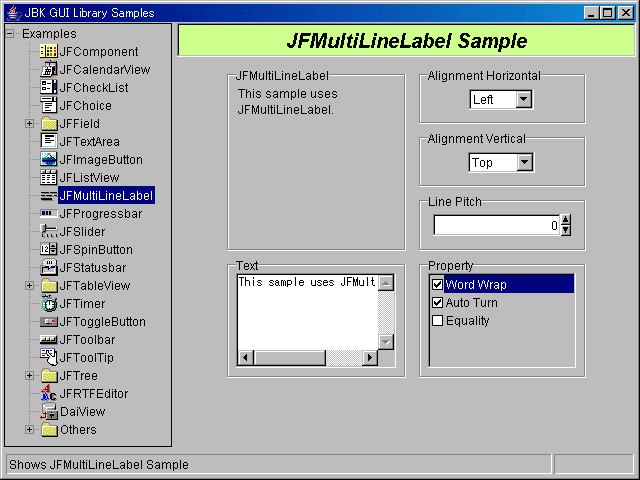

Figure 1.15 Multi-line label sample

Operation method

• JFMultiLineLabel

  Multi-line label display field

• Text

  Specify the contents of multi-line label.

• Horizontal alignment

  Specify the horizontal-direction position when displaying the multi-line label. Specifiable positions are as follows:

  • Display positions: Left/Center/Right

• Vertical alignment

  Specify the vertical-direction position when displaying the multi-line label. Specifiable positions are as follows:

  • Display positions: Top/Center/Bottom

• Line pitch

  Specify the line spacing when displaying the multi-line label.

• Property

  The item containing a check in the check box is enabled.

  • Word Wrap: Wraps words.

  • Auto Run: Wraps data automatically.

  • Equality: Displays data equally.

Source codes

• Multi-line label sample:"Sample Storage Destinations"/jfmultilinelabel/JFMultiLineLabelSample.java
